Bucket Cylinder Seal Kit 707-98-26580 for KOMATSU exkavators

Price: €27.35 53.49лв.

Code:

707-98-26580
Weight:

0.200 Kgs

Repair kit for the bucket cylinder of KOMATSU excavators.

Piston diameter (d): 55.00 mm

Cylinder diameter (D): 90.00 mm

Related products:

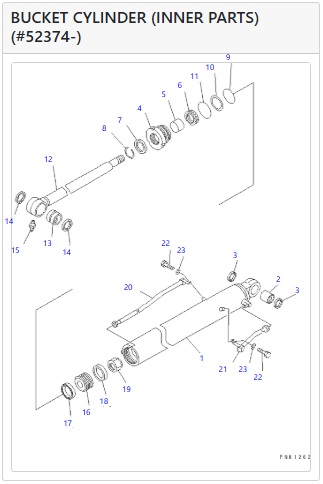

POS.	Number	Name	Qty.
G1	201-63-X2520	CYLINDER GROUP,BUCKET	1
	201-63-02520	CYLINDER ASSEMBLY ,BUCKET	1
1	201-63-76440	• CYLINDER,BUCKET	1
2	07143-10505	• BUSHING	1
3	07145-00050	• SEAL,DUST (KIT)	2
4	707-29-90310	• HEAD	1
5	07177-05530	• BUSHING	1
6	707-51-55211	• PACKING,ROD (KIT)	1
7	707-56-55510	• SEAL,DUST (KIT)	1
8	07179-12069	• RING,SNAP	1
9	07000-12085	• O-RING (KIT)	1
10	07146-02086	• RING,BACK-UP (KIT)	1
11	07000-02090	• O-RING (KIT)	1
12	21W-63-76220	• ROD,PISTON	1
13	07144-10606	• BUSHING	1
14	07145-00060	• SEAL,DUST (KIT)	2
15	07020-00000	• FITTING,GREASE	1
16	707-36-90240	• PISTON	1
17	707-44-90180	• RING,PISTON (KIT)	1
18	07156-00912	• RING,WEAR (KIT)	1
19	07165-13941	• NUT	1
20	201-63-76470	TUBE	1
21	201-63-76480	TUBE	1
22	01010-81020	BOLT	2
23	01643-31032	WASHER	2
K	707-98-26580	SERVICE KIT,BUCKET CYLINDER	1

Suitable for KOMATSU:

PC60-7,PC60-7-B,PC60-7E,PC60-7E-B,PC60-7,SPC60-7S-B,PC70-7,PC70-7-B,PC70-7E,PC70-7E-B,PC75US-3,PC75UU-2,PC75UU-2E,PC75UU-3,PC78US-5
