Blucket Lift Cylinder Seal Kit 707-98-13990 for KOMATSU exkavators

Price: €33.89 66.28лв.

Code:

707-98-13990
Weight:

0.400 Kgs

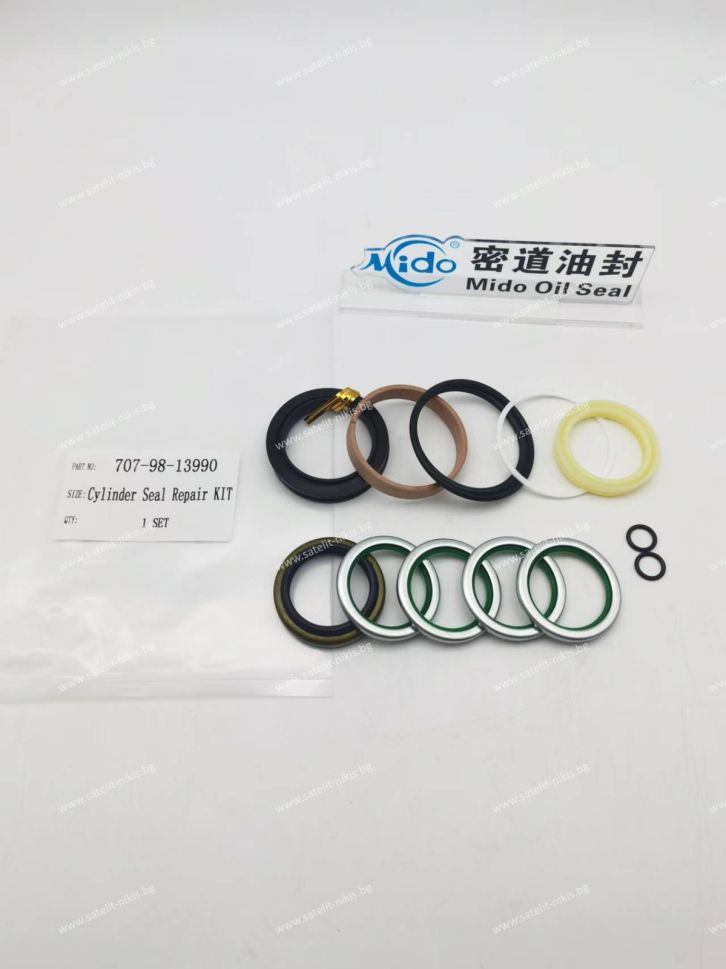

Repair kit for the bucket lift cylinder of KOMATSU excavators.

Piston diameter (d): 35.00 mm

Cylinder diameter (D): 55.00 mm

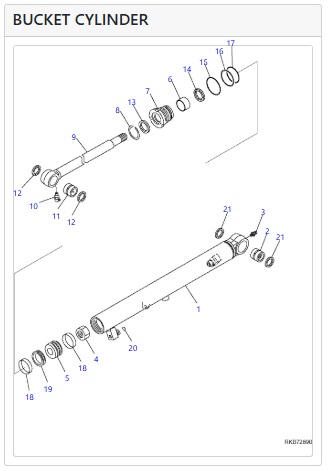

Related Part:

POS.	Number	Name	Qty.
G1	707-00-XH561	CYLINDER GROUP,BUCKET	1
	707-00-0H561	CYLINDER ASSEMBLY	1
1	707-11-55630	• CYLINDER	1
2	02896-11009	• O-RING (KIT)	2
3	721-58-35680	• ROD,PISTON	1
4	707-76-35410	• BUSHING	1
5	07145-00035	• SEAL,DUST (KIT)	2
6	07020-00000	• FITTING,GREASE	1
7	707-76-35420	• BUSHING	1
8	22L-70-21550	• SEAL,DUST (KIT)	2
9	07020-00675	• FITTING,GREASE	1
10	707-29-55821	• HEAD,CYLINDER	1
11	07179-12047	• RING,SNAP	1
12	175-63-75190	• SEAL,DUST (KIT)	1
13	07000-12055	• O-RING (KIT)	1
14	07000-13050	• O-RING (KIT)	1
15	07146-02051	• RING,BACK-UP (KIT)	1
16	707-51-35210	• PACKING,ROD (KIT)	1
17	707-52-15110	• BUSHING	1
18	707-36-55140	• PISTON	1
19	707-44-55180	• RING,PISTON (KIT)	1
20	707-39-55110	• RING,WEAR (KIT)	1
21	707-40-90040	• RETAINER	1
22	707-67-27020	• NUT	1
23	707-86-39190	TUBE	1
24	02896-11009	O-RING (KIT)	1
25	01010-81020	BOLT	1
26	01643-31032	WASHER	1
KIT	707-98-13990	SERVICE KIT,BUCKET CYLINDER	1

Suitable for:

KOMATSU PC27MR-3, PC27MR-2 , PC26MR-3, PC27MR-3

Manufacturer:
