O-ring 145.0х5.3 NBR70
In stock 100 pcs.
- Code:49053014500
- Weight:0.020 Kgs
Material: nitrile rubber NBR.
Hardness: Shore 70±5
The color of nitrile rubber is generally black, but might vary occasionally, without this impacting the sealing properties of the O-ring.

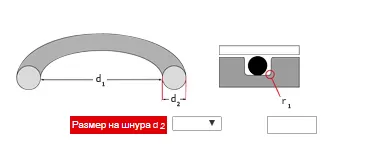

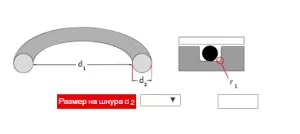

O-ring dimensions: Internal diameter d1= 145.0 mm
Cross section d2 = 5.3 mm

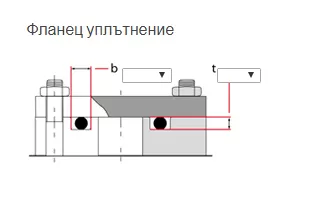

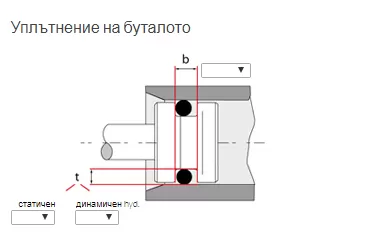

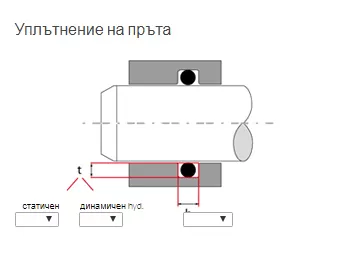

Useful link: https://www.cog.de/produkte/rund-um-den-o-ring/o-ring-einbaumasse/einbaumasse
Estimated Shipping
to Targovishte starts at €5.18outside Targovishte starts at €5.28
to Targovishte starts at €2.73outside Targovishte starts at €2.73
Nitrile rubber properties - Acrylnitrile-butadiene rubber NBR:
NBR rubber demonstrates excellent resistance to the effects of mineral oils. It also provides particularly good results with hydraulic oils, grease, diesel fuels plus other aliphatic hydrocarbons, diluted acids and alkaline solutions that do not contain aromatic or chlorinated additives. Its excellent mechanical properties, such as high resistance to pressure and abrasion, high stability and good temperature resistance (-20°С to +120 °С), ensure a wide application range for this rubber.
Advantages:
- good oil and fuel resistance (especially to hydraulic oils)
- good working temperature range: -20°С to +120 °С in oil
- good resistance to pressure
- good wear resistance and high tensile strength
- low swelling in water
Limitations:
- poor weather, light and ozone resistance
- poor resistance to polar fluids
- poor resistance to chlorinated hydrocarbons
- poor resistance to aromatic fluids
