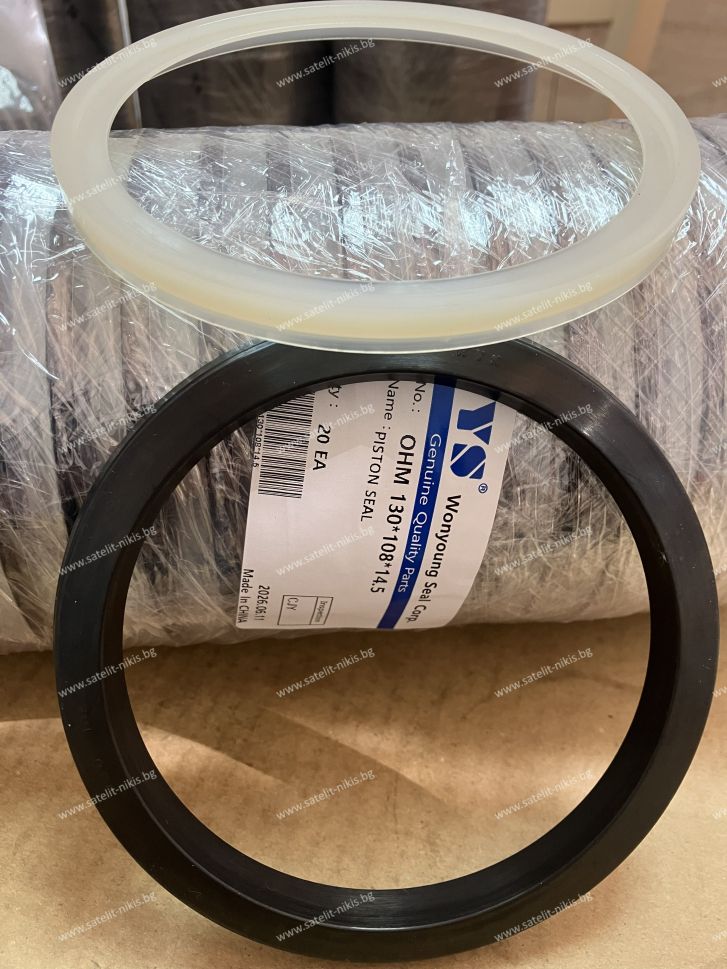

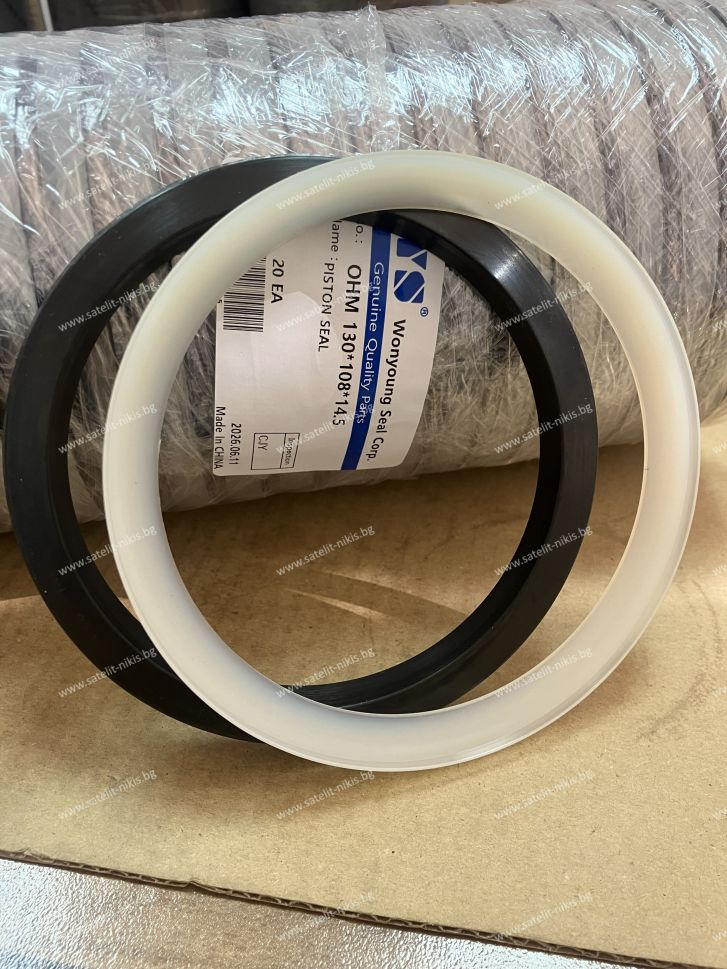

Hydraulic piston seal OHM 130x108x14.5 NBR70+Nylon (PA) WYS, up to 210 bar, CATERPILLAR 215-3243,HITACHI 4085439
-
Code:32130108145
-
Weight:0.040 Kgs
Product data

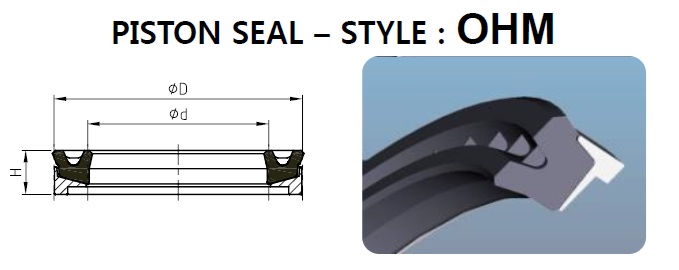

ØD=130 mm ; Ød=108 mm ; h=14.5 mm
Material: NBR70+NYLON
Application range (the following limit values cannot appear at the same time):
Working Temperature :
-30~100℃
Working Pressure : 0~21 Mpa
Speed : 0.008~1 m/s.
Media: mineral-based hydraulic oils
OE References:
CATERPILLAR 215-3243,HITACHI 4085439
Suitable for:
HITACHI
EX160WD, UCX300, UH051, UH052, UH052M, UH061, UH062, UH081, UH083
For reference only. We cannot guarantee 100% compatibility.
Manufacturer:
For delivery options to your country, please do not hesitate to contact us!
Estimated Shipping
to Targovishte starts at
€3.31
outside Targovishte starts at
€3.43
outside Targovishte starts at
€3.72
to Targovishte starts at
€3.72
SPGWB is a two-way hydraulic piston seal composed a PTFE, one rubber seal ring and two anti-withdrawal retaining rings made of Nylon. SPGWB is a seal for high pressure operation which improves the oil scraping ability of SPG. SPGWB type is suitable for forklift arm cylinders, cantilever cylinders, bucket cylinders, bulldozer lifting cylinders, flat shovel cylinders, crane sliding cylinders, hydraulic suspension cylinders, dump trucks, presses, injection molding machines, etc.
Material:
Modified PTFE+bronze, high performance NBR with Shore hardness of 80 and polyamide resin
Installation: This type of seal can be used with an integral piston. To avoid damage to the sealing lip, measures should be taken to avoid sharp edges during installation.
