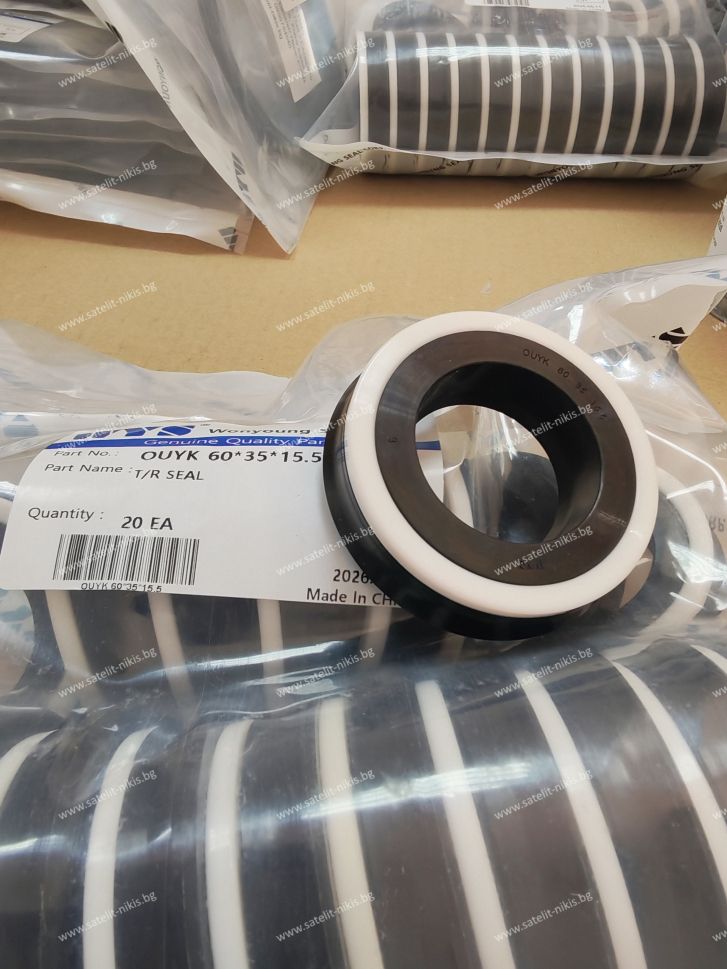

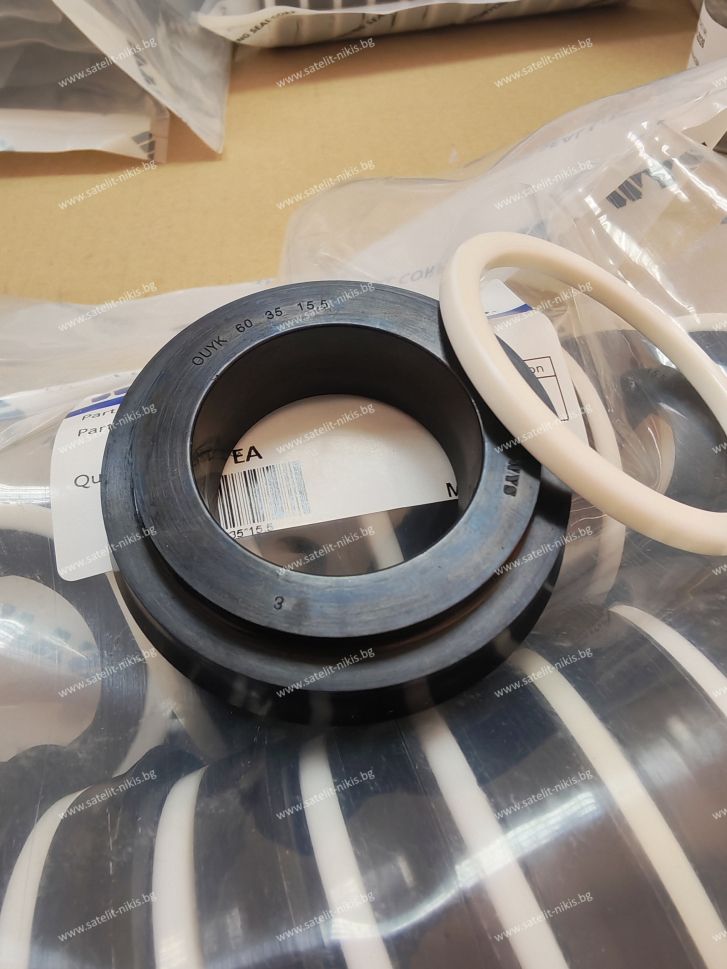

Hydraulic piston seal OUYK 60x35x15.5 NBR70+PA WYS/Korea up to 270 bar , KOMATSU 09370-00050
-
Code:32060035155
-
Weight:0.040 Kgs
Product data
ØD=60 mm ; Ød=35 mm ; h=15.5 mm
Material: NBR70+NYLON
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 270 bar
Speed: 0.008~ 1 m/s
Temperature: -30°C ~ +110°C
Media: mineral-based hydraulic oils
OE References:
KOMATSU 09370-00060
Suitable for:
Buldozers/ Булдозери:
D39EX-21D39EX-21AD39EX-21A-MD39EX-22D39EX-23D39PX-21D39PX-21AD39PX-21A-MD39PX-22D39PX-23D40A-1D40A-3D40A-5D40AF-1D40AF-1AD40AM-3D40AM-5D40F-3D40P-3D40P-5D40P-5AD40PF-1D40PF-1AD40PF-3D40PF-3AD40PF-5D40PL-1D40PL-3D40PL-5D40PLF-1D40PLF-1AD40PLL-3D40PLL-5D41A-3D41A-5D41A-6D41E-3D41E-3AD41E-6D41E-6KD41E-6TD41E-BB-6CD41E6TD41P-3D41P-5D41P-5AD41P-6D41P-6KD41PF-6D41PF-6KD41PF-6K-T2D45A-1D45P-1
Crawler Loaders/ Верижни товарачи:
D41Q-3D41S-3D45S-1
Crawler Stabilizers/ Верижни стабилизатори:
CS210-1
Exavators /Багери:
PC100-6PC100-6EPC100-6SPC100-6ZPC110-8M0PC120-6PC120-6EPC120-6E0PC120-6E0-T2PC120-6HPC120-6JPC120-6SPC120-6ZPC120-6Z-A1PC120LC-6PC120LC-6E0PC120SC-6PC128US-1PC128US-2PC128US-2-APC128US-2-ACPC128US-2-ATPC128UU-1PC128UU-2PC130-6PC130-6EPC130-6E0-T2PC130-6GPC130-6KPC130-7PC130-7KPC130-8PC130-8M0PC138US-10PC138US-2PC138US-2-APC138US-2-ACPC138US-2-ATPC138US-2EPC138US-8PC138USLC-2PC138USLC-8PC138USLC-10
Lime Spreaders/Разпръсквачки на вар:
CL60-2
Mobile Crushers and Recyclers/ Мобилни трошачки и рециклиращи машини:
BM020C-1BR200S-1BR200T-1BR210JG-1BZ200-1BZ210-1
Rollers/Валяци:
JT150-1
For reference only. We cannot guarantee 100% compatibility.
Manufacturer:
For delivery options to your country, please do not hesitate to contact us!
Estimated Shipping
to Targovishte starts at
€3.31
outside Targovishte starts at
€3.43
outside Targovishte starts at
€3.72
to Targovishte starts at
€3.72
SPGWB is a two-way hydraulic piston seal composed a PTFE, one rubber seal ring and two anti-withdrawal retaining rings made of Nylon. SPGWB is a seal for high pressure operation which improves the oil scraping ability of SPG. SPGWB type is suitable for forklift arm cylinders, cantilever cylinders, bucket cylinders, bulldozer lifting cylinders, flat shovel cylinders, crane sliding cylinders, hydraulic suspension cylinders, dump trucks, presses, injection molding machines, etc.
Material:
Modified PTFE+bronze, high performance NBR with Shore hardness of 80 and polyamide resin
Installation: This type of seal can be used with an integral piston. To avoid damage to the sealing lip, measures should be taken to avoid sharp edges during installation.
