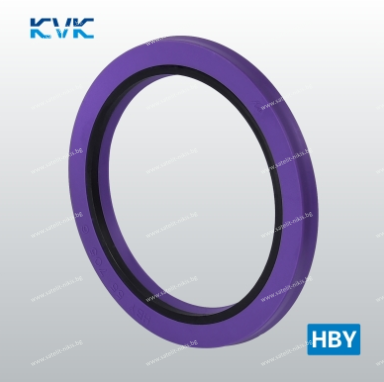

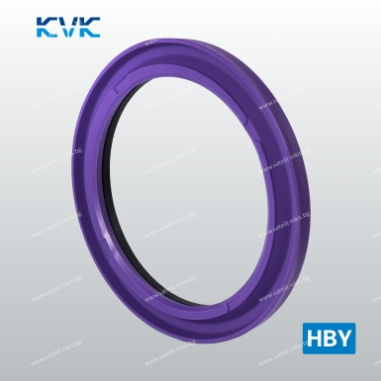

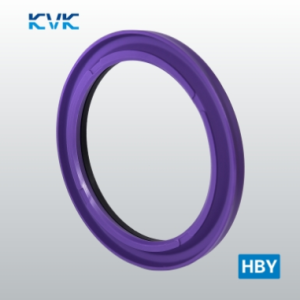

Buffer ring HBY 90x105.5x6 PU92 + POM до 350 bar KVK/China, CATERPILLAR A04601024HITACHI 4253560,KOMATSU 707-51-90520,707-51-90630
-
Code:59090105061
-
Weight:0.007 Kgs
Product data
Ød=90 mm; ØD=105.5 mm; H=6 mm; h=6.3 mm
Material: PU92
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 350 bar
Speed: ≤1.5 m/s
Temperature: -20°C ~ +80°C
Media: mineral-based hydraulic oils and emulsions
OE References:
CATERPILLAR A04601024HITACHI 4253560,KOMATSU 707-51-90520,707-51-90630
Suitable for :
HITACHI
EX220-2, EX220-3, EX220-5, EX220-5 JPN, EX230-5, EX230H-5 JPN, EX230K-5, EX270-5, EX280H-5
KOMATSU
Buldozers/ Булдозери:
D275A-2D375A-2D375A-3D375A-3DD375A-5D
Exavators /Багери:
PC1000-1PC1000LC-1PC1100-6PC200-3PC200-5PC200-5/LC-5PC200-5CPC200-5SPC200-5TPC200-5XPC200-5ZPC200-6PC200-6 Serial NO.60001 and up, PC200LC-6 Serial NO.70001 and upPC200-6HPC200-6JPC200-6L/LC-6LPC200-6LC/LC-6LCPC200-6SPC200-6S,PC200LC-6S PC200-6ZPC200CA-6PC200LC-3PC200LC-5PC200LC-5CPC200LC-5SPC200LC-5TPC200LC-5XPC200LC-6PC200LC-6HPC200LC-6JPC200LC-6LEPC200LC-6SPC200LC-6ZPC200LL-6PC200Z-6LEPC210-6PC210-6DPC210-6GPC210LC-6PC210LC-6GPC210LC-6LPC210LC-6LCPC210LC-6LEPC220-3PC220-5PC220-5CPC220-6PC220-6 Serial NO.80001 and up, PC220LC-6 Serial NO.90001 and up, PC220SE-6 Serial NO.A0001 and upPC220-6ZPC220LC-3PC220LC-5PC220LC-5CPC220LC-6PC220LC-6LPC220LC-6LCPC220LC-6LEPC220LC-6ZPC220LL-6PC228US-1PC228US-1-TNPC228US-1TPC228US-2PC228US-3T-YTPC228USLC-1PC228USLC-1-TNPC228USLC-2PC228USLC-3T-YTPC228UU-1PC228UU-1-MOPC228UU-1-TNPC230-6PC230LC-6PC240-5KPC240LC-5KPC240NLC-5KPC250-6PC250HD-6ZPC250LC-6PC250LC-6LPC250LC-6LCPC250LC-6LEPC400PC400-5PC400-5CPC400-6PC400-6ZPC400LCPC400LC-5PC400LC-6PC400LC-6ZPC400ST-6PC400ST-6LCPC410-5PC410LC-5PC650-3PC650-5 & PC650LC-5PC650-5PC650LC-3PC650LC-5PC650SE-3PC650SE-5PC750-6PC750-6-AMPW128UU-1
For reference only. We cannot guarantee 100% compatibility.
Manufacturer:
Zhongxingshun Sealing Products Factory
Estimated Shipping
to Targovishte starts at
€3.31
outside Targovishte starts at
€3.43
outside Targovishte starts at
€3.28
to Targovishte starts at
€3.28
BS hydraulic rod seal is a lip type seal that has two sealing lips and fits tightly at the outer diameter. Due to the presence of lubricant between the two lips, it greatly prevents dry friction and wear. In some cases, this type of seal can even replace expensive series configurations.
HBY product is used in combination with piston rods to absorb shock and fluctuating pressure under high loads, isolate high temperature fluids, and improve seal durability. Specially shaped front grooves on the sliding lip to relieve back pressure can eliminate the pressure between the Rod Seals and the damper.
