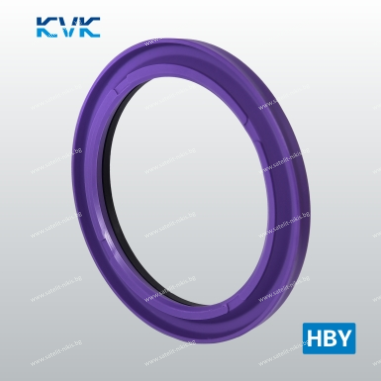

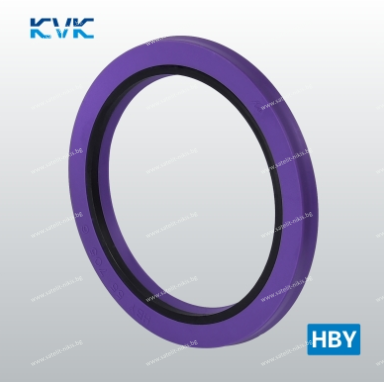

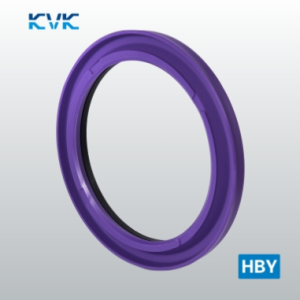

Buffer ring HBY 80x95.5x6 PU92 + POM до 350 bar KVK/China , CATERPILLAR 093-1484,HITACHI 309305,KOMATSU 707-51-80630
-
Code:59080095060
-
Weight:0.011 Kgs
Product data
Ød=80 mm; ØD=95.5 mm; H=6.3 mm; h=6 mm
Material: PU92
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 350 bar
Speed: ≤1.5 m/s
Temperature: -20°C ~ +80°C
Media: mineral-based hydraulic oils and emulsions
OE References:
CATERPILLAR 093-1484,HITACHI 309305,KOMATSU 707-51-80630
Suitable for:
CATERPILLAR
MINI HYD EXCAVATOR
307C 307B 308C
EXCAVATOR
312B L M315 312-A 315-A L 311-A 317 N 317-A N 317-A 315-A E120B E110 313B 312B 311B E140
HITACHI
Hitachi EX100 / EX100M / EX120 – Arm Cylinder
Hitachi EX200 / EX200K – Bucket Cylinder
Hitachi EX225USR / EX225USRK / ZX225US-3 / ZX225USR-3 – Blade Cylinder
KOMATSU
Buldozers/ Булдозери:
D275A-2
PC200-5PC200-5/LC-5PC200-5CPC200-5SPC200-5TPC200-5XPC200-5ZPC200-6PC200-6 Serial NO.60001 and up, PC200LC-6 Serial NO.70001 and upPC200-6B / PC200LC-6B HYDRAULIC EXCAVATORPC200-6HPC200-6JPC200-6L/LC-6LPC200-6LC/LC-6LCPC200-6SPC200-6S,PC200LC-6S PC200-6ZPC200CA-6PC200LC-5PC200LC-5CPC200LC-5SPC200LC-5TPC200LC-5XPC200LC-6PC200LC-6HPC200LC-6JPC200LC-6LEPC200LC-6SPC200LC-6ZPC200LL-6PC200Z-6LEPC210-6PC210-6DPC210-6GPC210LC-6PC210LC-6GPC210LC-6LPC210LC-6LCPC210LC-6LEPC220LL-6PC228US-1PC228US-1-TNPC228US-2PC228USLC-1PC228USLC-1-TNPC228USLC-2PC228UU-1PC228UU-1-MOPW128UU-1
For reference only. We cannot guarantee 100% compatibility.
Manufacturer:
Zhongxingshun Sealing Products Factory
Estimated Shipping
to Targovishte starts at
€3.31
outside Targovishte starts at
€3.43
outside Targovishte starts at
€3.28
to Targovishte starts at
€3.28
BS hydraulic rod seal is a lip type seal that has two sealing lips and fits tightly at the outer diameter. Due to the presence of lubricant between the two lips, it greatly prevents dry friction and wear. In some cases, this type of seal can even replace expensive series configurations.
HBY product is used in combination with piston rods to absorb shock and fluctuating pressure under high loads, isolate high temperature fluids, and improve seal durability. Specially shaped front grooves on the sliding lip to relieve back pressure can eliminate the pressure between the Rod Seals and the damper.
