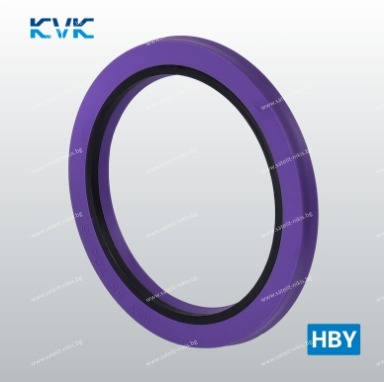

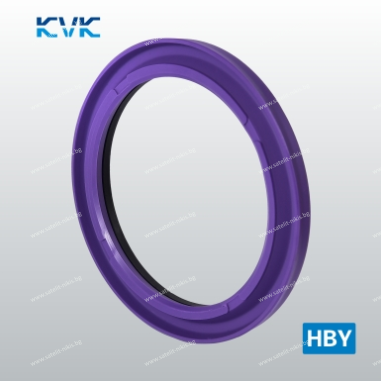

Buffer ring HBY 75x90.5x6 PU92 + POM до 350 bar KVK/China , Caterpillar 096-3469,A04601016,KOMATSU 707-51-75630,VOLVO 8230-24460
-
Code:59075090060
-
Weight:0.011 Kgs
Product data
Ød=70 mm; ØD=90.5 mm; H=6.3 mm; h=6 mm
Material: PU92
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 350 bar
Speed: ≤1.5 m/s
Temperature: -20°C ~ +80°C
Media: mineral-based hydraulic oils and emulsions
OE References:
Caterpillar 096-3469,A04601016,KOMATSU 707-51-75630,VOLVO 8230-24460
Suitable for:
CATERPILLAR
MINI HYD EXCAVATOR
307-A
EXCAVATOR
E70B 307-A E120B 307 E110B 312-A 311-A E140
KOMATSU
Exavators /Багери:
PC100-3PC100-5PC100-5CPC100-5SPC100-5ZPC100-6PC100-6EPC100-6SPC100-6ZPC100L-3PC100L-5PC100L-6PC100S-3PC100SS-3PC120-3PC120-5PC120-5CPC120-5KPC120-5MPC120-5SPC120-5XPC120-5ZPC120-6PC120-6EPC120-6E0PC120-6E0-T2PC120-6HPC120-6JPC120-6SPC120-6ZPC120-6Z-A1PC120LC-6PC120LC-6E0PC120S-3PC120SC-6PC120SS-3PC128US-1PC128US-2PC128UU-1PC128UU-2PC130-5PC130-5KPC130-5SPC130-6PC130-6EPC130-6E0-T2PC130-6GPC130-6KPC130-7KPC138US-2PC138USLC-2PC150-5PC150-6KPC150HD-5KPC150LC-6KPC150LGP-6KPC150NHD-5KPC158US-2PC158USLC-2PC160-6KPC180LC-5KPC180LC-6KPC180LLC-5KPC180NLC-5KPC180NLC-6KPC200-3PC200EL-6KPC200EN-6KPC200LC-3PF5-1PF5LC-1PW128UU-1PW130-6KPW130-7KPW130ES-6KPW150ES-6KPW170-5KPW170ES-6KPW170ES-6K-KAPW180-7E0PW200-1PW210-1
Others/ Други:
BP500-3
For reference only. We cannot guarantee 100% compatibility.
Manufacturer:
Zhongxingshun Sealing Products Factory
Estimated Shipping
to Targovishte starts at
€3.31
outside Targovishte starts at
€3.43
outside Targovishte starts at
€3.28
to Targovishte starts at
€3.28
BS hydraulic rod seal is a lip type seal that has two sealing lips and fits tightly at the outer diameter. Due to the presence of lubricant between the two lips, it greatly prevents dry friction and wear. In some cases, this type of seal can even replace expensive series configurations.
HBY product is used in combination with piston rods to absorb shock and fluctuating pressure under high loads, isolate high temperature fluids, and improve seal durability. Specially shaped front grooves on the sliding lip to relieve back pressure can eliminate the pressure between the Rod Seals and the damper.
