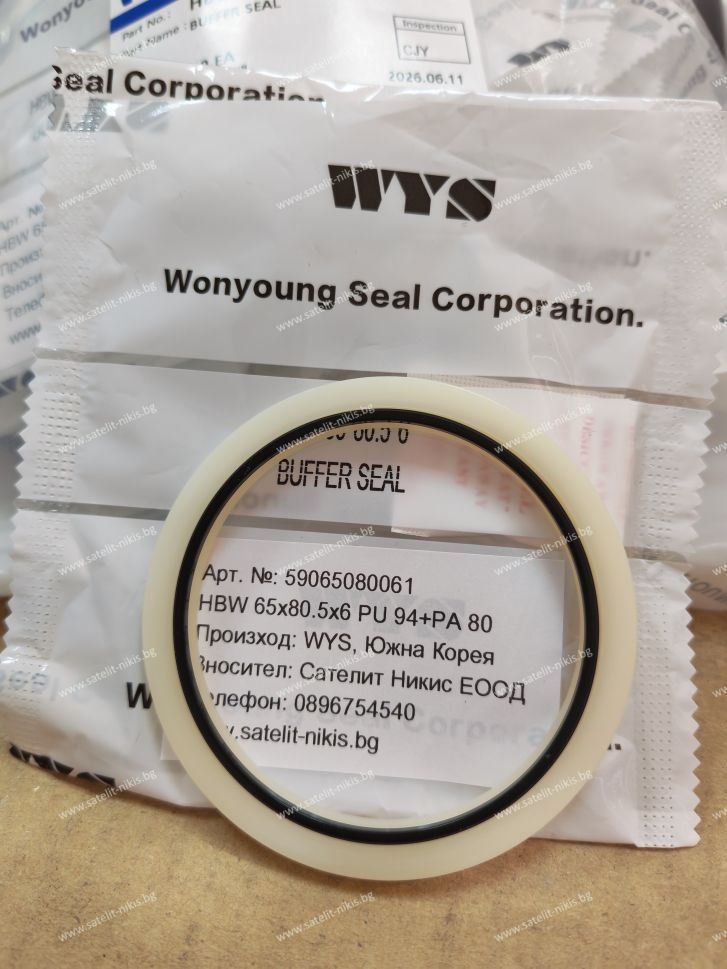

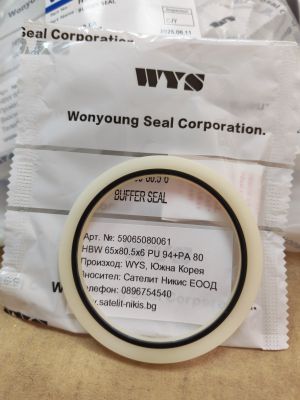

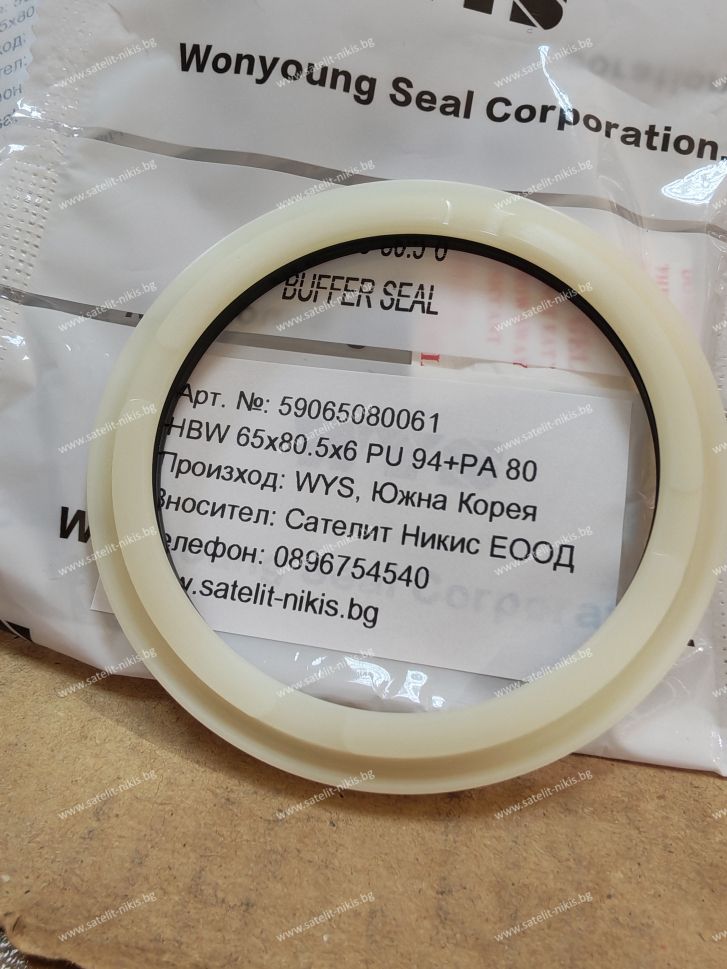

Buffer seal for rod HBW (HBY) 65x80.5x6 TPU94+PA80 up to 450 bar WYS/Korea, CATERPILLAR 093-1482,A04601014, Komatsu 707-51-65630
-
Code:59065080061
-
Weight:0.010 Kgs
Product data
Overall product dimensions:
Ød=65 mm; ØD=80.5 mm; h=6 mm
Material:
TPU94- Thermoplastic Polyurethane 94 Shore A
PA : Polyamide HS D 80 - Polyamide 80 Shore D
Application range (the following limit values must not be present at the same time):
Pressure: ≤ 450 bar
Speed: 0°C
Working medium: mineral hydraulic oils and emulsions
OE References:
CATERPILLAR 093-1482,A04601014, Komatsu 707-51-65630
Suitable for:
CATERPILLAR
EXCAVATOR
E180 320B L 322B L 312-A 311-A 325-A L 320-A L 325-A FM L 325B L E70 322C FM 320B 320C E240C E110 E240B 320-A N 322B 322C E200B 320-A 325-A 320 L 322 L 325 L EL240B EL240C EL180 EL200B 322-A L E120B E110B E240 325C EL240
KOMATSU
Exavators /Багери:
PC100, PC100L, PC100N, PC100S, PC100SS, PC120, PC120S, PC120SS
For reference only. We cannot guarantee 100% compatibility.
Manufacturer:
For delivery options to your country, please do not hesitate to contact us!
Estimated Shipping
to Targovishte starts at
€3.31
outside Targovishte starts at
€3.43
outside Targovishte starts at
€3.28
to Targovishte starts at
€3.28

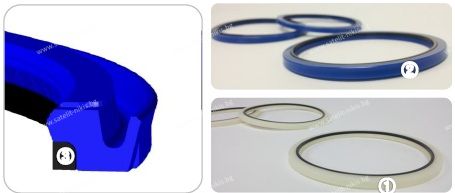

The WYW brand HBI type seal is a high-quality buffer seal whose main function in hydraulic systems is to absorb pressure peaks and hydraulic shocks, protecting the main rod seal from damage and rapid wear. It is designed as a single-acting seal on the pressure side of rod applications and is suitable for use in tandem seal systems under severe operating conditions. HBW seals are widely used in repair kits for heavy construction equipment and hydraulic cylinders, such as excavators and wheel loaders.
Materials:
TPU94- Thermoplastic Polyurethane 94 Shore A
PA : Polyamide HS D 80 -Polyamide 80 Shore D
Application range (the following limit values must not be present simultaneously):
Pressure: ≤ 450 bar
Speed:
Temperature: -30°C ~ +100°C
Working medium: mineral hydraulic oils and emulsions
