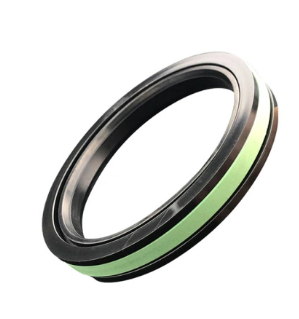

Hydraulic piston seal SPGW-125 125x102x15.5 NBR80/PTFE+Bronze/polyamide resin up to 400 bar KVK/China, HITACHI 4124860,KOMASTU 707-44-12280,707-44-12580,VOLVO 2046-03140
-
Code:32125102155
-
Weight:0.023 Kgs
Product data
ØD=125 mm; Ød=102 mm; H=15.5 mm; L=16mm
Material: NBR80/PTFE+Bronze/polyamide resin
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 400 bar
Speed: ≤ 1.5 m/s
Temperature: -20°C ~ +120°C
Media: mineral-based hydraulic oils
OE References:
HITACHI 4124860,KOMASTU 707-44-12280,707-44-12580,VOLVO 2046-03140
Suitable for :
HITACHI
EX220-2, EX220-3, EX220-5, EX220-5 JPN, EX230-5, EX230H-5 JPN, EX230K-5
KOMATSU
Backhoeloaders/Багер-товарачи:
WB97R-5WB97R-5E0WB97S-5E0
Buldozers/ Булдозери:
D65EX-16
Drum Trucks/Самосвали:
HM250-2
Exavators /Багери:
PC200-5PC200-5CPC200-5SPC200-5ZPC200-6PC200-6 Serial NO.60001 and up, PC200LC-6 Serial NO.70001 and upPC200-6B / PC200LC-6B HYDRAULIC EXCAVATORPC200-6HPC200-6JPC200-6L/LC-6LPC200-6LC/LC-6LCPC200-6SPC200-6S,PC200LC-6S PC200-6ZPC200-7PC200-7-AAPC200-7-APPC200CA-6PC200LC-5PC200LC-5CPC200LC-5SPC200LC-6PC200LC-6HPC200LC-6JPC200LC-6LEPC200LC-6SPC200LC-6ZPC200LC-7PC200LC-7-BAPC200LC-7-BPPC200LL-6PC200Z-6LEPC210-5KPC210-6KPC210-7KPC210LC-5KPC210LC-6KPC210LC-7KPC210NLC-7KPC220-5PC220LC-5PC220LL-6PC230NHD-7KPW200-7PW200-7KPW220-7H
Wheel Loaders/ Колесни товарачи:
WA200PZ-6
For reference only. We cannot guarantee 100% compatibility.
Manufacturer:
Zhongxingshun Sealing Products Factory
Estimated Shipping
to Targovishte starts at
€3.31
outside Targovishte starts at
€3.43
outside Targovishte starts at
€3.28
to Targovishte starts at
€3.28

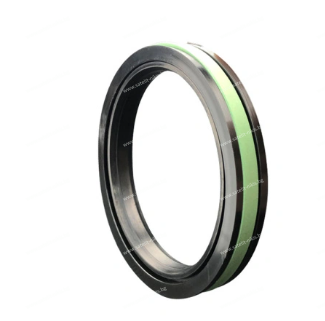

SPGW is a two-way hydraulic piston seal composed a mofified PTFE+bronze element, one rubber seal ring and two anti-withdrawal retaining rings made of polyamide resin. SPGW is a seal for high pressure operation which improves the oil scraping ability of SPG. SPGW type is suitable for forklift arm cylinders, cantilever cylinders, bucket cylinders, bulldozer lifting cylinders, flat shovel cylinders, crane sliding cylinders, hydraulic suspension cylinders, dump trucks, presses, injection molding machines, etc.
Material:
Modified PTFE+bronze, high performance NBR with Shore hardness of 80 and polyamide resin
Scope of application:
Working pressure: ≤ 400 bar
Working temperature: - 20 ℃～+120 ℃
Reciprocating speed: ≤ 1.5m/s
Medium: General mineral-based hydraulic oil, water glycol hydraulic oil, oil-water emulsified hydraulic oil.
Installation: This type of seal can be used with an integral piston. To avoid damage to the sealing lip, measures should be taken to avoid sharp edges during installation.
