Hydraulic piston seal PDP-125 130x107x15.5/16 NBR+PU+POM up to 400 bar GUARNITEC/Italy, HITACHI 4124861,KOMASTU 707-44-13080,707-44-13180,707-44-13150,VOLVO 9562-11300
-
Code:32130107161
-
Weight:0.030 Kgs
Product data
D=130 mm; d=107 mm; H=16 mm; S=6.5 mm; F=129 mm
Material: NBR/PU/POM
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 400 bar
Speed: ≤ 0.5 m/s
Temperature: -30°C +110°C ; -50°C +110°C TDS 108
Media: mineral-based hydraulic oils
OE references:
HITACHI 4124861,KOMASTU 707-44-13080,707-44-13180,707-44-13150,VOLVO 9562-11300
Suitable for :
Backhoeloaders/Багер-товарачи:
Buldozers/ Булдозери:
Cranes/Кранове:
LW250-5H
Crawler Carriers/Верижни претоварачи:
CD110R-1CD110R-2
Crawler Loaders/ Верижни товарачи:
D68ESS-12
Drum Trucks/Самосвали:
HD1200-1
Exavators /Багери:
PC120-6HPC128UU-1PC128UU-2PC200-3PC200-5PC200-5/LC-5PC200-5CPC200-5SPC200-5TPC200-5XPC200-5ZPC200-6PC200-6 Serial NO.60001 and up, PC200LC-6 Serial NO.70001 and upPC200-6HPC200-6JPC200-6L/LC-6LPC200-6LC/LC-6LCPC200-6SPC200-6S,PC200LC-6S PC200-6ZPC200-7-AAPC200-7/PC200LC-7PC200-8PC200CA-6PC200LC-3PC200LC-5PC200LC-5CPC200LC-5SPC200LC-5TPC200LC-5XPC200LC-6PC200LC-6HPC200LC-6JPC200LC-6LEPC200LC-6SPC200LC-6ZPC200LC-7PC200LC-7-BAPC200LC-7BPC200LC-7LPC200LC-8PC200LL-6PC200LL-7LPC200SC-6PC200Z-6LEPC210-6PC210-6DPC210-6GPC210-7-CAPC210-7-CGPC210LC-6PC210LC-6GPC210LC-6LPC210LC-6LCPC210LC-6LEPC210LC-7-DAPC210LC-7-DGPC220-3PC220-5PC220-5CPC220-6PC220-6 Serial NO.80001 and up, PC220LC-6 Serial NO.90001 and up, PC220SE-6 Serial NO.A0001 and upPC220-6ZPC220-7PC220-7 Serial NO.DBH0001 and up, PC220LC-7 Serial NO.DBJ0001 and upPC220-7-AAPC220-8PC220LC-3PC220LC-5PC220LC-5CPC220LC-6PC220LC-6LPC220LC-6LCPC220LC-6LEPC220LC-6ZPC220LC-7PC220LC-7-BAPC220LC-7LPC220LC-8PC220LL-6PC220LL-7LPC228US-1PC228US-1-TNPC228US-1TPC228US-2PC228US-3PC228US-3-AAPC228US-3-ABPC228US-3-AGPC228US-3-YAPC228US-3-YBPC228US-3-YGPC228US-3N-YAPC228US-3N-YBPC228US-3N-YGPC228US-3T-YTPC228USLC-1PC228USLC-1-TNPC228USLC-2PC228USLC-3PC228USLC-3SPC228USLC-3T-YTPC228UU-1PC228UU-1-MOPC228UU-1-TNPC230-6PC230-7-AAPC230-7-CGPC230LC-6PC230LC-7-BAPC230LC-7-DGPC240-5KPC240LC-5KPC240LC-7KPC240NLC-5KPC240NLC-7KPC250-6PC250HD-6ZPC250LC-6PC250LC-6LPC250LC-6LCPC250LC-6LEPC270LL-7LPC290LC-7KPC290NLC-7KPC400PC400-5PC400-5CPC400-6PC400-6ZPC400-7PC400-7-M1PC400-7E0PC400LCPC400LC-5PC400LC-6PC400LC-6ZPC400LC-7PC400LC-7-M1PC400LC-7E0PC400ST-6PC400ST-6LCPC410-5PC410LC-5PC60-6PC60-6SPC60-6ZPC60-7PC60-7-BPC60-7E-BPC60-7S-BPC60L-6PC650-5 & PC650LC-5PC70-6PC70-7PC70-7-BPC70-7EPC70-7E-BPC75UD-2PC75UD-2EPC75UD-3PC75US-3PC75UU-1PC75UU-2PC75UU-2EPC75UU-3PC78MR-6PC78US-5PC78US-6PC78UU-6PC80MR-3PC88MR-6PC88MR-8PF5-1PF5LC-1PW128UU-1PW200-1PW210-1PC400-8PC400-8RPC400LC-8PC400LC-8RPC78US-8PC78UU-8
Others/ Други:
BP500-3
Wheel Dozers/Колесни булдозери:
WD600-1WD600-1H
For reference only. We cannot guarantee 100% compatibility.
Manufacturer:
GUARNITEC S.r.l.
100% Made in Italy
For delivery options to your country, please do not hesitate to contact us!
Product photos are for illustrative purposes and may differ from the actual appearance of the item. This does not affect the characteristics of the product.
Estimated Shipping
to Targovishte starts at
€3.31
outside Targovishte starts at
€3.43
outside Targovishte starts at
€3.28
to Targovishte starts at
€3.28

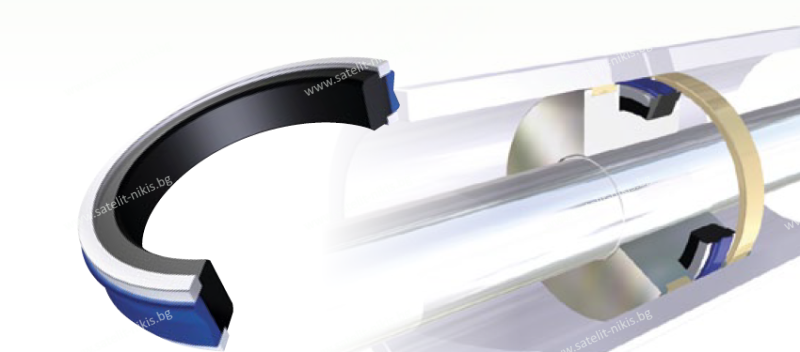

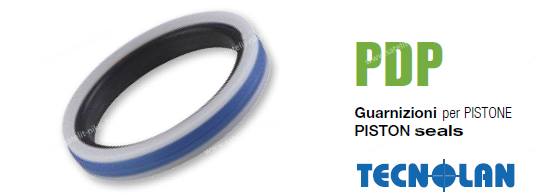

Hydraulic seal type PDP is designed for use in piston applications of double-acting hydraulic cylinders operating under high loads.
Standardly manufactured: outer seal made of polyurethane (PU), sealing ring made of oil-resistant NBR rubber with a hardness of 80 Shore and two support rings made of thermoplastic elastomer.
The double-acting seal type PDP offers a simple design, very good anti-friction action with a low friction coefficient and excellent sealing properties even with sudden pressure surges. It is suitable for high operating speeds and is a very economical solution thanks to its long service life.
It is manufactured in a wide range of metric and inch sizes.
PDP can be safely used in the mining industry, in construction machinery and earthmoving machinery. It is recommended to be installed in combination with at least one guide element, depending on the operating conditions.
