Hydraulic piston seal PDP-127 135x112x15.5/16 NBR+PU+POM up to 400 bar GUARNITEC/Italy, HITACHI 4185244,KOMATSU 707-44-13280,707-44-13580,VOLVO 2046-03170
-
Code:32135112161
-
Weight:0.030 Kgs
Product data
D=135 mm; d=112 mm; H=16 mm; S=6.5 mm; F=134 mm
Material: NBR/PU/POM
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 400 bar
Speed: ≤ 0.5 m/s
Temperature: -30°C +110°C ; -50°C +110°C TDS 108
Media: mineral-based hydraulic oils
OE References:
HITACHI 4185244,KOMATSU 707-44-13280,707-44-13580,VOLVO 2046-03170
Suitable for:
HITACHI
EX200-3, EX210H-5 JPN, EX210LC-5HHE, EX220, EX220-2, EX220-3, EX220-5, EX220-5 JPN, EX230-5, EX230H-5 JPN, EX230K-5, EX270-5, EX280H-5
KOMATSU
Exavators /Багери:
PC200-5PC200-5/LC-5PC200-5CPC200-5SPC200-5TPC200-5XPC200-5ZPC200-6PC200-6 Serial NO.60001 and up, PC200LC-6 Serial NO.70001 and upPC200-6B / PC200LC-6B HYDRAULIC EXCAVATORPC200-6HPC200-6JPC200-6L/LC-6LPC200-6LC/LC-6LCPC200-6SPC200-6S,PC200LC-6S PC200-6ZPC200-7PC200-7-AAPC200-7-APPC200-7/PC200LC-7PC200-8PC200CA-6PC200EL-6KPC200EN-6KPC200LC-5PC200LC-5CPC200LC-5SPC200LC-5TPC200LC-5XPC200LC-6PC200LC-6HPC200LC-6JPC200LC-6LEPC200LC-6SPC200LC-6ZPC200LC-7PC200LC-7-BAPC200LC-7-BPPC200LC-7BPC200LC-7LPC200LL-7LPC200SC-6PC200SC-7-M1PC200Z-6LEPC210-5KPC210-6PC210-6DPC210-6GPC210-6KPC210-7-CAPC210-7-CGPC210-7KPC210LC-5KPC210LC-6PC210LC-6GPC210LC-6KPC210LC-6LPC210LC-6LCPC210LC-6LEPC210LC-7-DAPC210LC-7-DGPC210LC-7KPC210NLC-7KPC220-5PC220-5CPC220-6 Serial NO.80001 and up, PC220LC-6 Serial NO.90001 and up, PC220SE-6 Serial NO.A0001 and upPC220LC-5PC220LC-5CPC220LC-7PC220LC-7LPC220LL-7LPC228US-1PC228US-1-TNPC228US-1TPC228US-2PC228US-2JPC228US-3PC228US-3-AAPC228US-3-ABPC228US-3-AGPC228US-3-APPC228US-3-YAPC228US-3-YBPC228US-3-YGPC228US-3-YPPC228US-3E0PC228US-3N-YAPC228US-3N-YBPC228US-3N-YPPC228US-3T-YTPC228US-3UPC228USLC-1PC228USLC-1-TNPC228USLC-2PC228USLC-2JPC228USLC-3PC228USLC-3-AAPC228USLC-3-ABPC228USLC-3-APPC228USLC-3-YAPC228USLC-3-YBPC228USLC-3-YPPC228USLC-3E0PC228USLC-3N-YAPC228USLC-3N-YBPC228USLC-3N-YPPC228USLC-3SPC228USLC-3T-YTPC228USLC-3UPC228UU-1PC228UU-1-MOPC228UU-1-TNPC230NHD-7KPC240-5KPC240-6KPC240-8KPC240LC-5KPC240LC-6KPC240LC-7KPC240LC-8KPC240NLC-5KPC240NLC-6KPC240NLC-7KPC240NLC-8KPC400PC400-5PC400-5CPC400-6PC400-6ZPC400-7PC400-7-M1PC400-7E0PC400LCPC400LC-5PC400LC-6PC400LC-6ZPC400LC-7PC400LC-7-M1PC400LC-7E0PC400ST-6PC400ST-6LCPC410-5PC410LC-5PW200-7PW200-7E0PW200-7KPW200-7K-KAPW220-7E0PW220-7HPW220-7KPW220-7K-KAPC400-8PC400-8RPC400LC-8PC400LC-8R
Others/ Други:
BP500-7-M1
VOLVO
EC240 B, B Prime и C;EC290 B, B Prime и C
For reference only. We cannot guarantee 100% compatibility.
Manufacturer:
GUARNITEC S.r.l.
100% Made in Italy
For delivery options to your country, please do not hesitate to contact us!
Product photos are for illustrative purposes and may differ from the actual appearance of the item. This does not affect the characteristics of the product.
Estimated Shipping
to Targovishte starts at
€3.31
outside Targovishte starts at
€3.43
outside Targovishte starts at
€3.28
to Targovishte starts at
€3.28

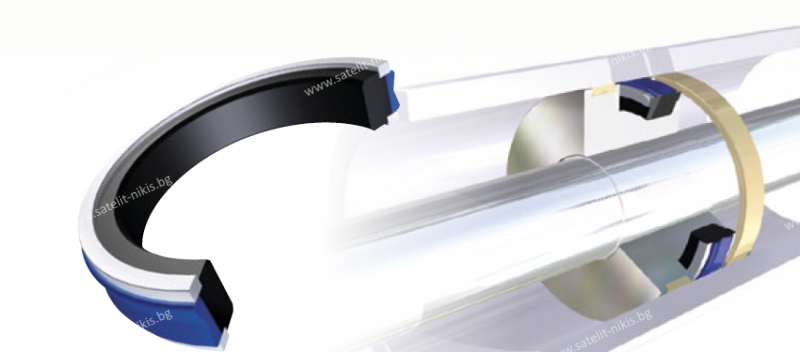

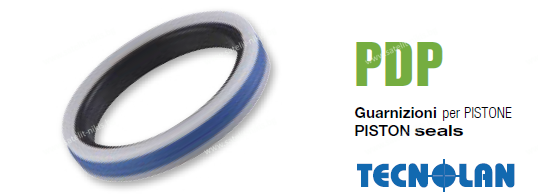

Hydraulic seal type PDP is designed for use in piston applications of double-acting hydraulic cylinders operating under high loads.
Standardly manufactured: outer seal made of polyurethane (PU), sealing ring made of oil-resistant NBR rubber with a hardness of 80 Shore and two support rings made of thermoplastic elastomer.
The double-acting seal type PDP offers a simple design, very good anti-friction action with a low friction coefficient and excellent sealing properties even with sudden pressure surges. It is suitable for high operating speeds and is a very economical solution thanks to its long service life.
It is manufactured in a wide range of metric and inch sizes.
PDP can be safely used in the mining industry, in construction machinery and earthmoving machinery. It is recommended to be installed in combination with at least one guide element, depending on the operating conditions.
