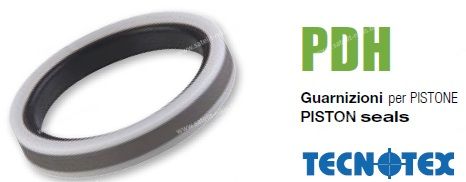

Hydraulic piston seal PDH-135 180x157x15.5/16 NBR/PTFE+Bronze/POM up to 600 bar heavy duty GUARNITEC/Italy, KOMATSU 707-44-18080,707-44-18180,707-44-18190,423-63-H3P06,VOLVO 2046-02190
-
Code:32180157160
-
Weight:0.034 Kgs
Product data
D=180 mm; d=157 mm; H=16 mm; S=6.5 mm; F=179 mm
Material:NBR/PTFE+Bronze/POM
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 600 bar
Speed: ≤ 1.5 m/s
Temperature: -30°C +110°C ; -50°C +110°C TDS 108
Media: mineral-based hydraulic oils
OE References:
KOMATSU 707-44-18080,707-44-18180,707-44-18190,423-63-H3P06,VOLVO 2046-02190
Suitable for:
KOMATSU
Buldozers/ Булдозери:
D135A-1,D135A-2,D155A-3,D155A-5,D155AX-3,D155AX-5,D275A-2,D275A-5,D275A-5D,D275A-5R,D275AX-5,D275AX-5-KO,D275AX-5E0,D375A-6,D475A-2,D475A-3,D475A-3-HD,D475A-3-SC
Compactors/Уплътняващи машини:
WF450-3
Cranes/Кранове:
LW250-5X
Crawler Loaders/ Верижни товарачи:
D66S-1,D75S-5
Crawler Stabilizers/ Верижни стабилизатори:
CS360SD-2
Wheel Loaders/ Колесни товарачи:
WA250PT-5,WA250PT-5L,WA250PTL-5,WA270-5,WA300-1,WA300-3A,WA300-3A-X,WA320-5,WA320-5L,WA320-6,WA350-1,WA350-3-H,WA350-3-X,WA350-3A,WA350-3A-S,WA380-1,WA380-1LC,WA380-3 active,WA380-3,WA380-3MC,WA380-5,WA380-5-SN,WA380-5-TN,WA380-5L,WA380-DZ-3 Serial No.10580 and up,WA400-5,WA400-5L,WA450-1WA450-2,WA450-3,WA450-3-H,WA450-3-X,WA450-3A,WA450-3A-S,WA450-3A-TN,WA450-3MC,WA450-5L,WA450L-3,WA470-1,WA470-3,WA470-5,WA470-DZ-3 Serial No.20118 and up,WA480-5,WA480-5L
Exavators /Багери:
PC1000-1,PC1000LC-1,PC1600-1,PC400-3,PC400LC-3,PC650-3 & PC650LC-3,PC650-3P,C650-5 & PC650LC-5,PC650-5,PC650LC-3,PC650LC-5,PC650SE-3,PC650SE-5,PC710-5
Wheel Dozers/Колесни булдозери:
WD600-1,WD600-1H,WD600-3,WD600-6
VOLVO
EC210,EC240,EC290,EW140,EW160
Manufacturer:
GUARNITEC S.r.l.
100% Made in Italy
For delivery options to your country, please do not hesitate to contact us!
Product photos are for illustrative purposes and may differ from the actual appearance of the item. This does not affect the characteristics of the product.
Estimated Shipping
to Targovishte starts at
€3.31
outside Targovishte starts at
€3.43
outside Targovishte starts at
€3.28
to Targovishte starts at
€3.28
Hydraulic seal type PDP is designed for use in piston applications of double-acting hydraulic cylinders operating under high loads.
Standardly manufactured: outer seal made of polyurethane (PU), sealing ring made of oil-resistant NBR rubber with a hardness of 80 Shore and two support rings made of thermoplastic elastomer.
The double-acting seal type PDP offers a simple design, very good anti-friction action with a low friction coefficient and excellent sealing properties even with sudden pressure surges. It is suitable for high operating speeds and is a very economical solution thanks to its long service life.
It is manufactured in a wide range of metric and inch sizes.
PDP can be safely used in the mining industry, in construction machinery and earthmoving machinery. It is recommended to be installed in combination with at least one guide element, depending on the operating conditions.
