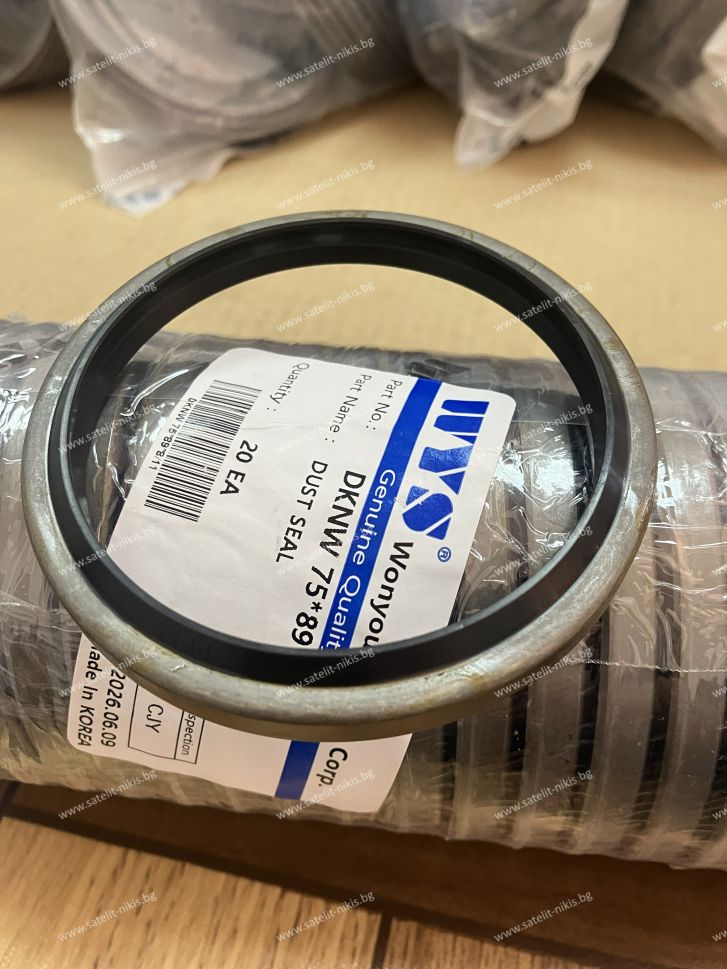

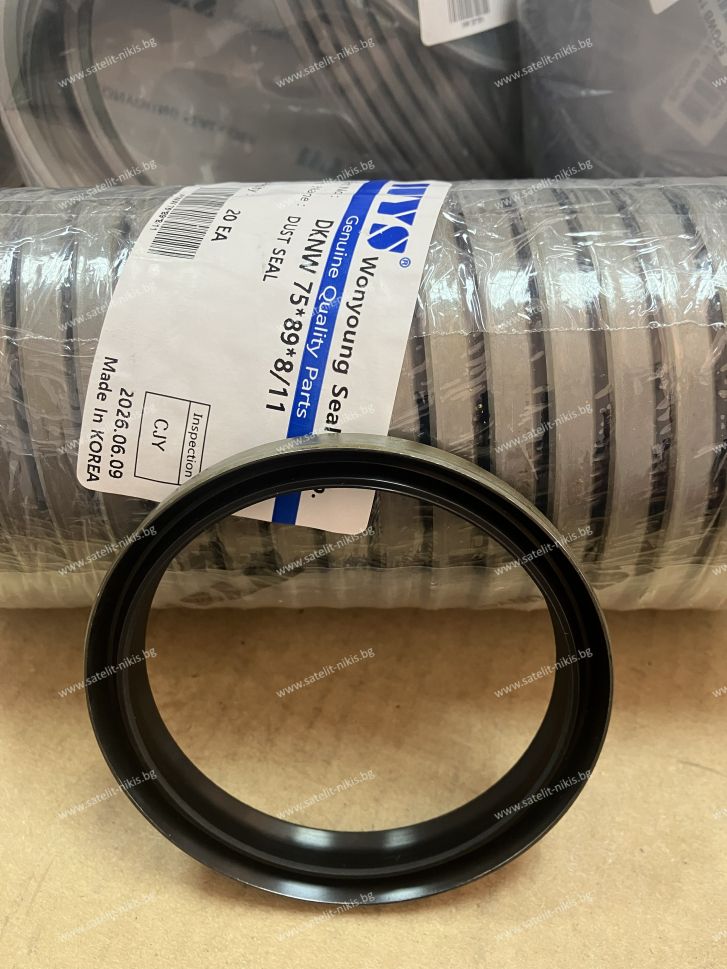

Double acting metal wiper DKNW 75x89x8/11 NBR + SPCC WYS/Korea, KOMATSU 07016-00908,VOLVO 9564-20900
-
Code:57075089089
-
Weight:0.040 Kgs
Double acting metal wiper, design DKNW.
Double acting metal wipers type DKNW are made of NBR and cold rolled steel (SPCC). It uses a process of vulcanizing the rubber
under pressure and temperature on a pre-phosphated (prepared) metal base.
ØD=75 mm ; Ød=89 mm ; t=8 mm ; H=11 mm
Advantages
Very good wiping effect, both internally and externally
Excellent abrasion and wear resistance
CATERPILLAR
CAT 311B/C, 312B/C/D, 314C/D
HITACHI
ZX110, ZX120, ZX130, ZX135US (серии 1, 3 и 5),ZX70, ZX75, ZX80, ZX140W
KOMATSU
Buldozers/ Булдозери:
D50A-18D53A-18D53P-18AD58E-1BD58P-1BD58P-1C
Drum Trucks/Самосвали:
WA250-6WA300-1WA320-1WA320-3WA320-6
Exavators /Багери:
PC100-3PC100L-3PC100S-3PC100SS-3PC120-3PC120S-3PC120SS-3PC200-3PC200LC-3PF3-1PF3W-1PW100-3PW100N-3PW100NS-3PW100S-3PW100S-3BPW200-1PW210-1
Others/ Други:
BP500-3
VOLVO:
EC140B, EC140C, EC140D, EW140B / EW140C,EC70
Manufacturer:
For delivery options to your country, please do not hesitate to contact us!
Estimated Shipping
to Targovishte starts at
€3.31
outside Targovishte starts at
€3.43
outside Targovishte starts at
€3.28
to Targovishte starts at
€3.28
Double acting metal wipers type DKNW are made of NBR and cold rolled steel (SPCC). It uses a process of vulcanizing the rubber under pressure and temperature on a pre-phosphated (prepared) metal base.
Due to the ideal design of the dust sealing lip, it can be used for ideal dust wiping for good dust resistance and good oil film formation.
Why and when to choose Polyurethane (PU) over standard NBR rubber?
The high-tech polyurethane (PU) version is designed for machines operating in severe abrasive environments – quarries, rock excavations, demolition activities or when working with a hydraulic hammer. The sharp polyurethane cleaning lip has enormous mechanical strength and shear resistance. It literally “cuts” dried-on stubborn mud, cement dust or ice from the piston rod without being injured by sharp particles, protecting the internal seals.
Why choose NBR rubber over Polyurethane (PU)?
The nitrile rubber (NBR) version provides maximum elasticity and smooth, soft cleaning of the piston rod with minimal friction. NBR has exceptional chemical resistance to hydraulic and mineral oils, as well as excellent stability over wide temperature amplitudes (works excellently in winter conditions). Recommended for standard hydraulic systems, steering systems and machines in urban environments where reliable long-term sealing is required under normal operating loads.
