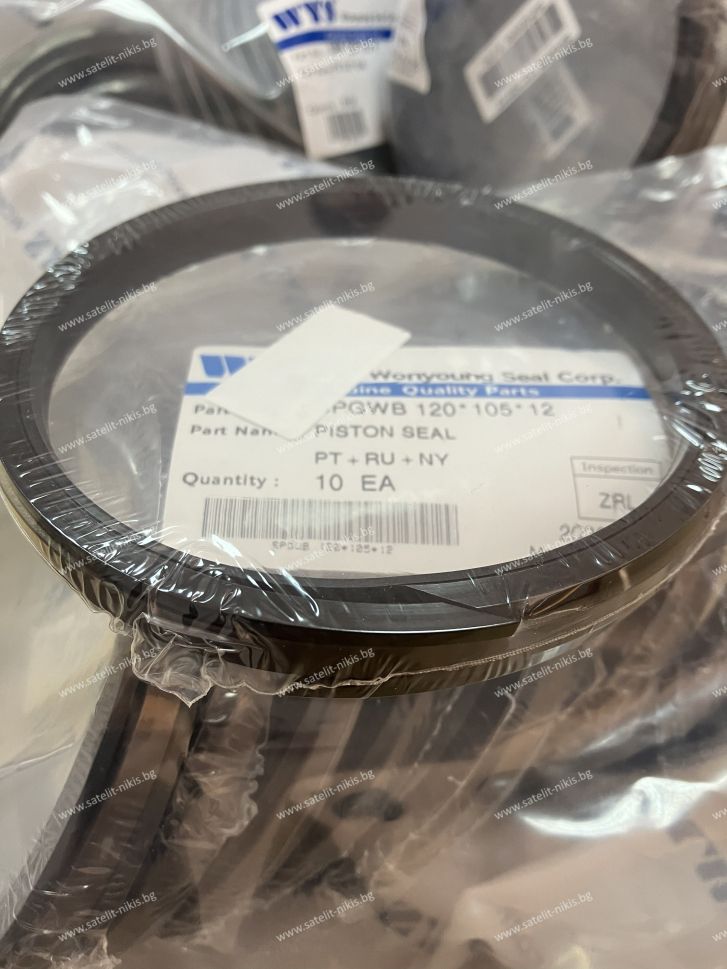

Hydraulic piston seal SPGWB 120x105x12 PTFE + NYLON + NBR WYS/Korea , KOMATSU 707-44-12080
-
Code:32120105120
-
Weight:0.050 Kgs
Product data
ØD=120 mm ; Ød=105 mm ; h=12 mm
Material: PTFE+NYLON+NBR
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 500 bar
Speed: 0.005~ 1.5 m/s
Temperature: -30°C ~ +120°C
Media: mineral-based hydraulic oils
OE References:
KOMATSU 707-44-12080
Suitable for:
Buldozers/ Булдозери:
D41E-3D41E-3ADDM053-1A
Compactors/Уплътняващи машини:
WF550T-3WF550T-3AWF550T-3D
Crawler Loaders/ Верижни товарачи:
D66S-1
Drum Trucks/Самосвали:
HD320-3HD325-3HD325-5HD465-2
Exavators /Багери:
PC100-1PC100-2PC100L-1PC100L-2PC100U-2PC100U-3PC100US-3PC120-1PC120-2PC150-1PC150-3PC150LC-1PC150LC-3PC200-2PC200-3PC200LC-2PC200LC-3PC220-2PC220LC-2PC80-1PF3-1PF3W-1PF5-1PF5LC-1PW100-1PW150-1
Graders/ Грейдери:
GD300A-1
Others/ Други:
BC100-1BP500-3
Wheel Loaders/ Колесни товарачи:
WA120-1LCWA150-1WA180-1WA180-1LCWA200-1WA300-1WA300-3A-SNWA320-3WA320-3CSWA350-1WA350-3A-SWA350-3A-TN
Manufacturer:
For delivery options to your country, please do not hesitate to contact us!
Estimated Shipping
to Targovishte starts at
€3.31
outside Targovishte starts at
€3.43
outside Targovishte starts at
€3.28
to Targovishte starts at
€3.28
SPGWB is a two-way hydraulic piston seal composed a PTFE, one rubber seal ring and two anti-withdrawal retaining rings made of Nylon. SPGWB is a seal for high pressure operation which improves the oil scraping ability of SPG. SPGWB type is suitable for forklift arm cylinders, cantilever cylinders, bucket cylinders, bulldozer lifting cylinders, flat shovel cylinders, crane sliding cylinders, hydraulic suspension cylinders, dump trucks, presses, injection molding machines, etc.
Material:
Modified PTFE+bronze, high performance NBR with Shore hardness of 80 and polyamide resin
Installation: This type of seal can be used with an integral piston. To avoid damage to the sealing lip, measures should be taken to avoid sharp edges during installation.
