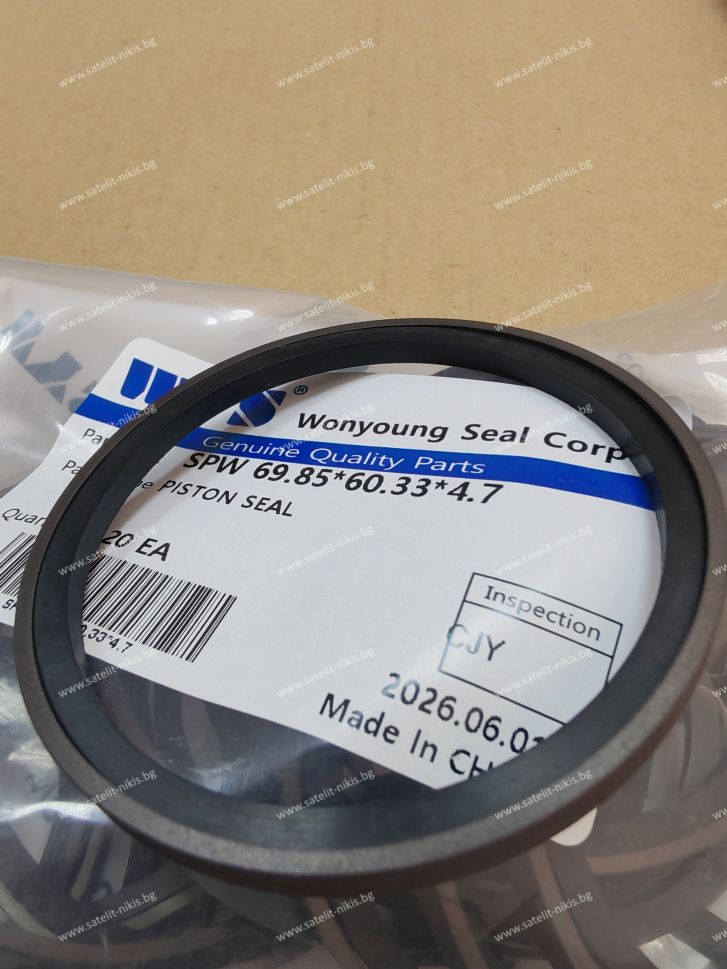

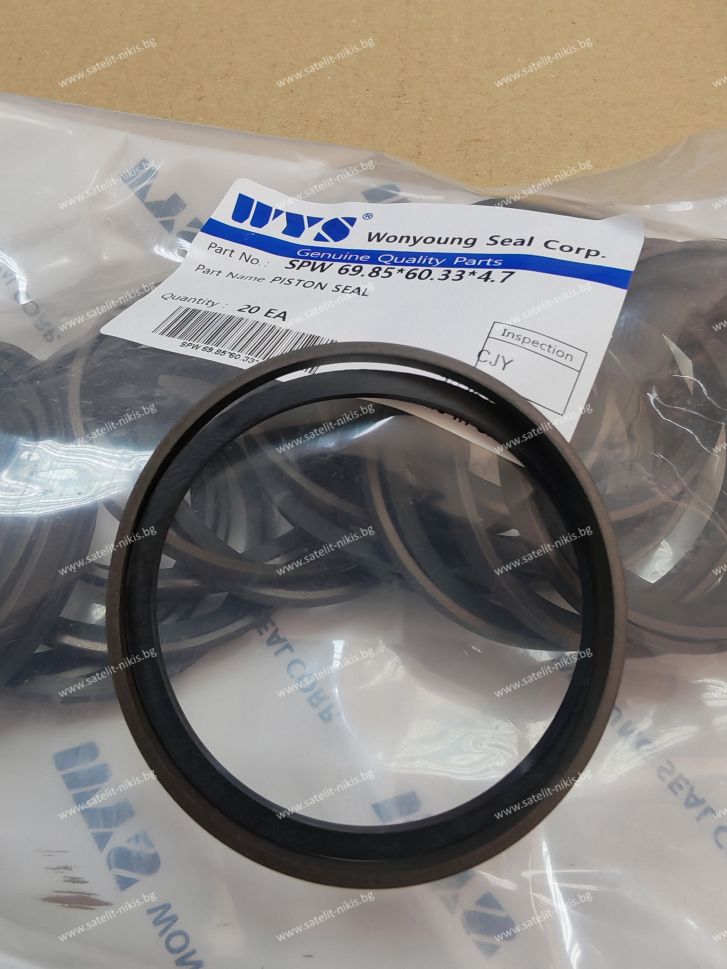

Hydraulic piston seal SPW 69.85x60.33x4.7 PTFE + NBR WYS/Korea, CATERPILLAR5J-7010
-
Code:32088075047
-
Weight:0.020 Kgs
Product data
ØD=69.85 mm; Ød=60.33 mm; H=4.7 mm
Material: PTFE + 35% Bronze/ NBR
Profile type: SPW (SPG) Double acting piston seal
Working pressure: 0 - 350 bar
Working temperature: -30°C ~ +100°C
Speed: 0.005~1.5 m/s
Media: Mineral oil-based hydraulic fluids, HFA/HFB/HFC fire-resistant fluids, and eco-friendly bio-oils.
OE References:
CATERPILLAR 5J-7010
Suitable for :
TRACK-TYPE TRACTOR
D3G D4G D5G
INTEGRATED TOOLCARRIER
IT18F IT24F IT12B IT12 IT14F IT14B IT28G IT28F
BACKHOE LOADER
442D 442E 438C 426C 438D 438B 424D 428 436C 438 434E 422E 432E 432D 444E 416C 428D 428E 428B 428C
EXCAVATOR
315D L 315C
MOTOR GRADER
12H 12G 12M 12K 120H 120G 12M 3 12M 2 120 160K 120M 160H 120K 160G 160M 140M 3 AWD 12M 3 AWD 16H NA 140M 3 140M 2 135H 160H NA 160H ES 120M 2 12H NA 163H 135H NA 12H ES 120H ES 160 140M 140K 163H NA 140H 140G 160M 2 160M 3 120H NA 16H 16G 14L 140H NA 150 130G 140K 2 160M 3 AWD 140H ES 140 143H 120K 2 14G
WHEEL LOADER
918F 928H 928G 924GZ 928HZ 924HZ G910 924F 924H 924G 928F 930G 930H
RIPPER SCARIFIER
12G 130G 140G
COMPACT WHEEL LOADER
910 908 906 910F 910E
Manufacturer:
Estimated Shipping
to Targovishte starts at
€3.31
outside Targovishte starts at
€3.43
outside Targovishte starts at
€3.72
to Targovishte starts at
€3.72
High-quality combined piston seals type SPW (compatible with SPG profile) from the leading Korean manufacturer WYS. This standard type of seal consists of a Teflon (PTFE) slide ring and a rubber energizing O-ring. The special combination of materials ensures excellent oil pressure retention, minimal friction, and a long service life during intensive operation in hydraulic systems and heavy machinery.
