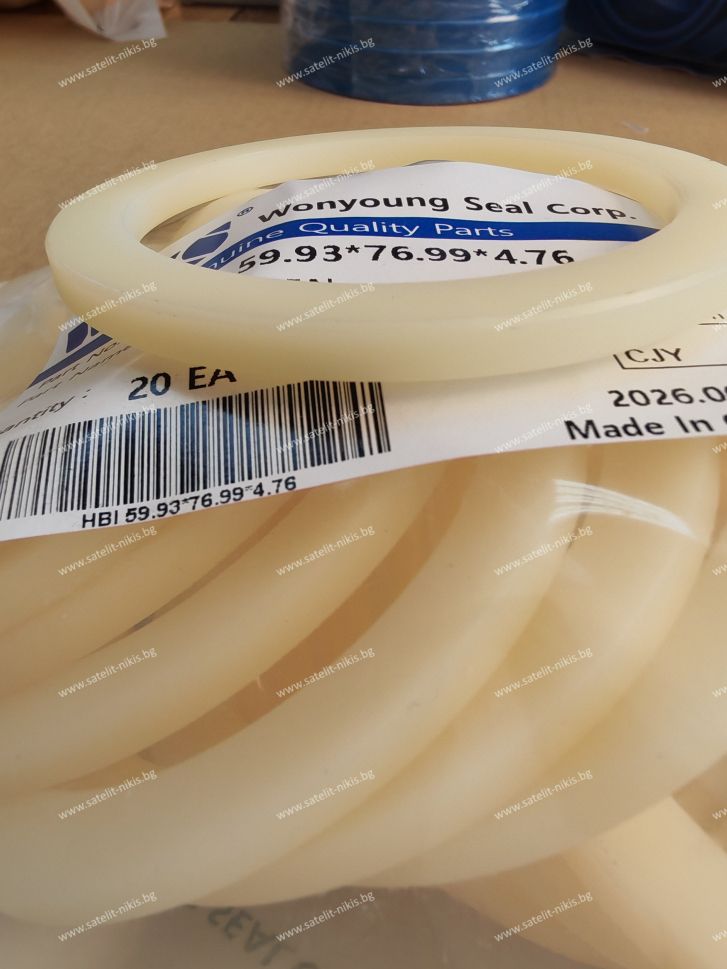

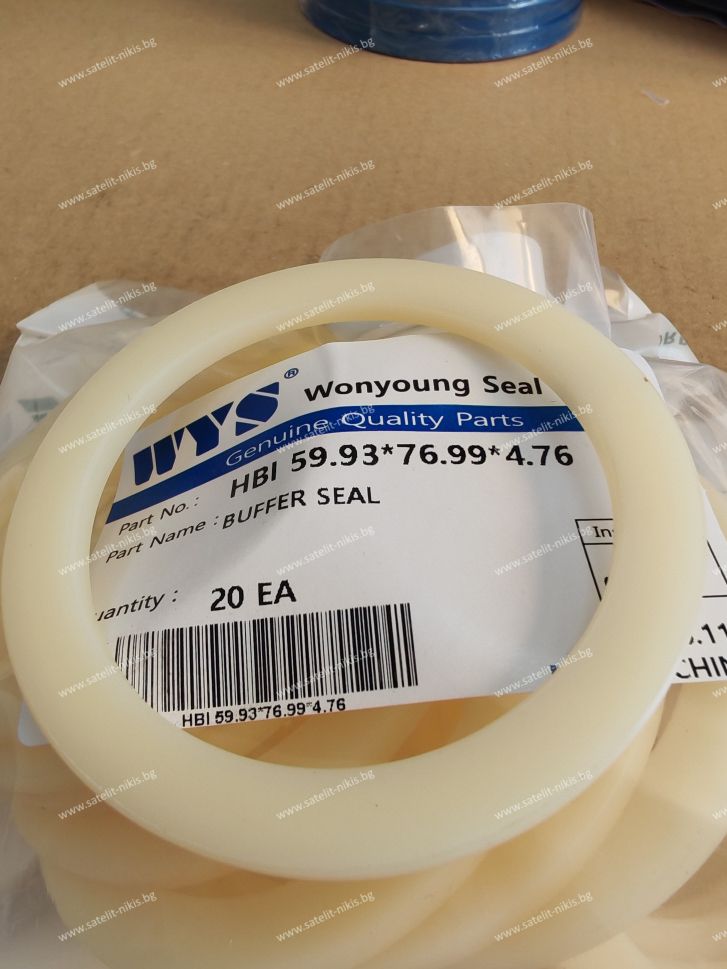

Buffer seal HBI 59.93x76.99x4.76 PU95 WYS/Korea, up to 350 bar, Caterpillar 6J-6916
-
Code:59059076049
-
Weight:0.010 Kgs
Product data
Ød=59.93mm; ØD=76.99 mm; H=4.76 mm
OE References:
Caterpillar 6J-6916
Suitable for:
QUARRY TRUCK
775B
TRUCK
773 769 777 769B 769C 777B 773B
TRACK LOADER
951C 941B 951B 941
TRACTOR
772B 768C 768B 776B 772 776
Material: High performance polyurethane PU
Hardness: 95 Shore A
Profile type: HBI / Rectangular cross-section buffer ring
Working pressure: 0 - 350 bar
Working temperature: -35°C ~ +110°C
Speed: 0.03~1.0 m/s
Media: mineral-base hydraulic oils (general petroleum hydraulic fluid oils) and greases
Manufacturer:
Estimated Shipping
to Targovishte starts at
€3.31
outside Targovishte starts at
€3.43
outside Targovishte starts at
€3.28
to Targovishte starts at
€3.28
The WYS brand HBI type seal is a high-quality buffer seal whose main function in hydraulic systems is to absorb pressure peaks and hydraulic shocks, protecting the main rod seal from damage and rapid wear. It is designed as a single-acting seal on the pressure side of rod applications and is suitable for use in tandem seal systems under severe operating conditions. HBI seals are widely used in repair kits for heavy construction equipment and hydraulic cylinders, such as excavators and wheel loaders.
