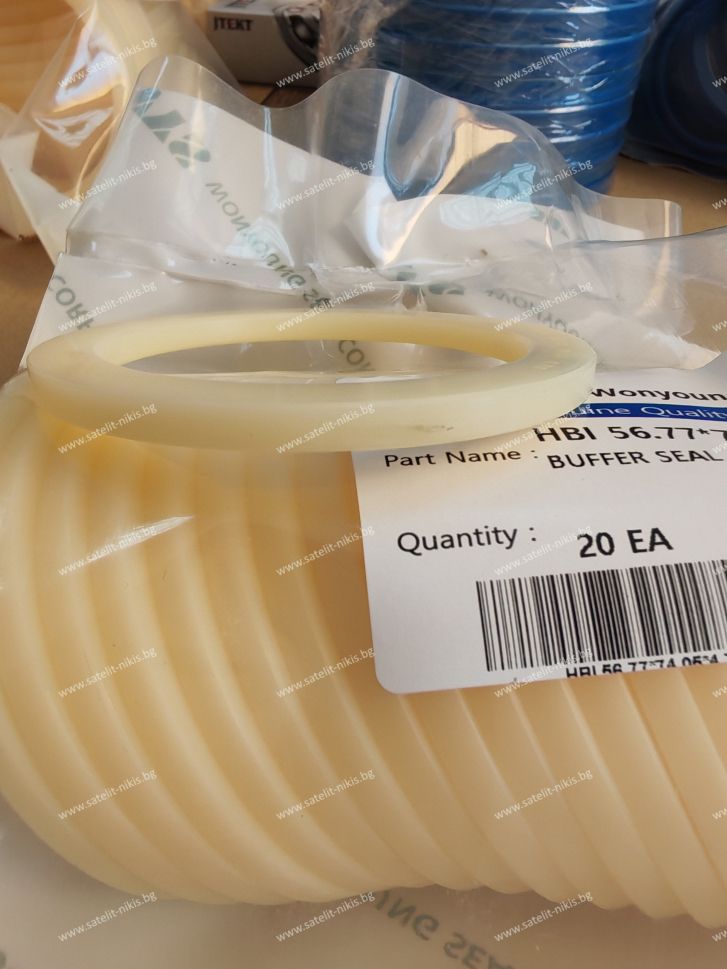

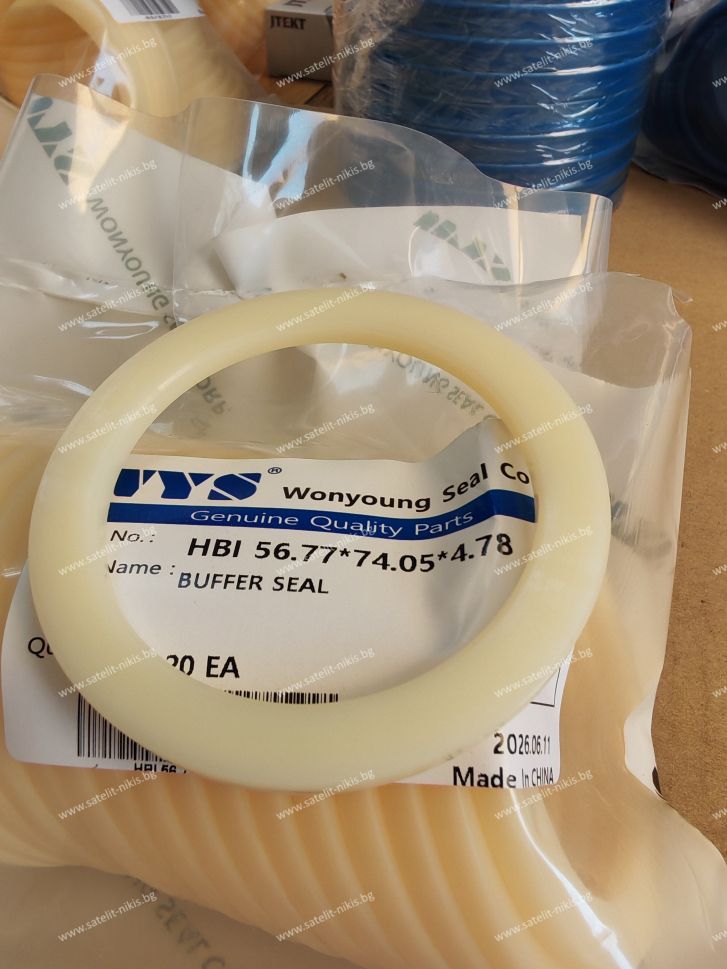

Buffer seal HBI 56.77x74.05x4.78 PU95 WYS/Korea, up to 350 bar, Caterpillar 5J-3616
-
Code:59056074049
-
Weight:0.010 Kgs
Product data
Ød=56.77mm; ØD=74.05mm; H=4.78 mm
OE References:
Caterpillar 5J-3616
Suitable for:
WHEEL TRACTOR
627 621 623 615C 615
INTEGRATED TOOLCARRIER
IT18
TRACK LOADER
941B 977K 963 931C II 931B 935C 951C 931C 943 951B 941 935B 935C II
SOIL COMPACTOR
825C 825B
WHEEL DOZER
834 824B 834B 824C
MOTOR GRADER
14G
LANDFILL COMPACTOR
826C 826B
WINCH
53 55
BACKHOE
931 D3
WHEEL LOADER
916 920 988B G916 980B 980C 930 980 966C 988 930R 930T
WHEEL SKIDDER
508
TRACK-TYPE TRACTOR
D3B D4B D4H D5H D6C
RIPPER
963 3 953 5 943
WHEEL SCRAPER
615 621 613C
BULLDOZER
4S 824S 825 5A 5P 5S 814S 3S 3P 4A
Material: High performance polyurethane PU
Hardness: 95 Shore A
Profile type: HBI / Rectangular cross-section buffer ring
Working pressure: 0 - 350 bar
Working temperature: -35°C ~ +110°C
Speed: 0.03~1.0 m/s
Media: mineral-base hydraulic oils (general petroleum hydraulic fluid oils) and greases
Manufacturer:
Estimated Shipping
to Targovishte starts at
€3.31
outside Targovishte starts at
€3.43
outside Targovishte starts at
€3.28
to Targovishte starts at
€3.28
The WYS brand HBI type seal is a high-quality buffer seal whose main function in hydraulic systems is to absorb pressure peaks and hydraulic shocks, protecting the main rod seal from damage and rapid wear. It is designed as a single-acting seal on the pressure side of rod applications and is suitable for use in tandem seal systems under severe operating conditions. HBI seals are widely used in repair kits for heavy construction equipment and hydraulic cylinders, such as excavators and wheel loaders.
