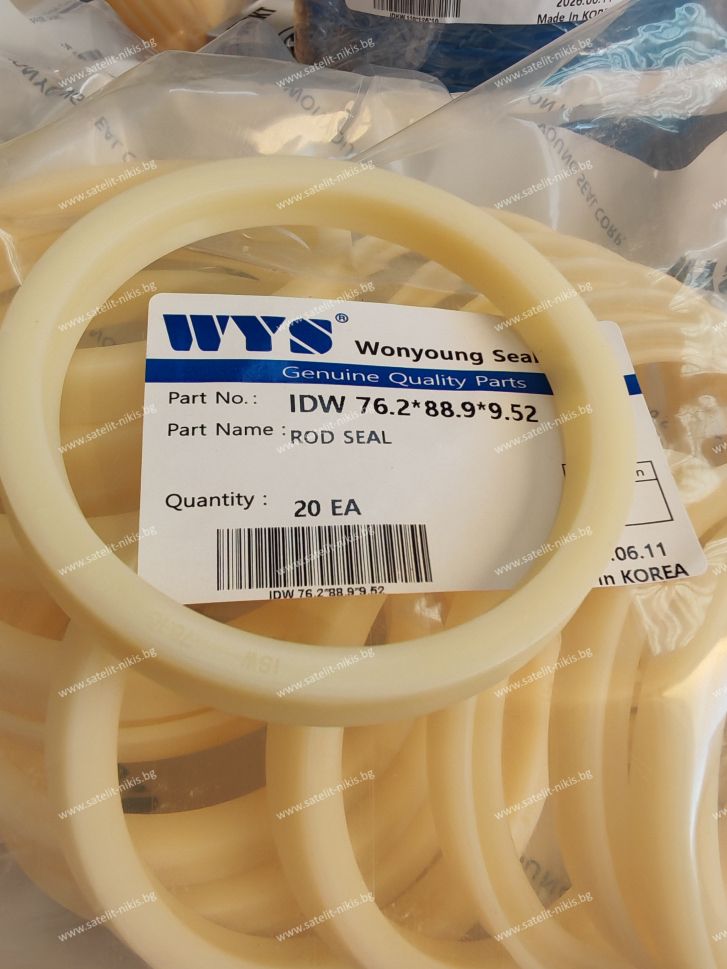

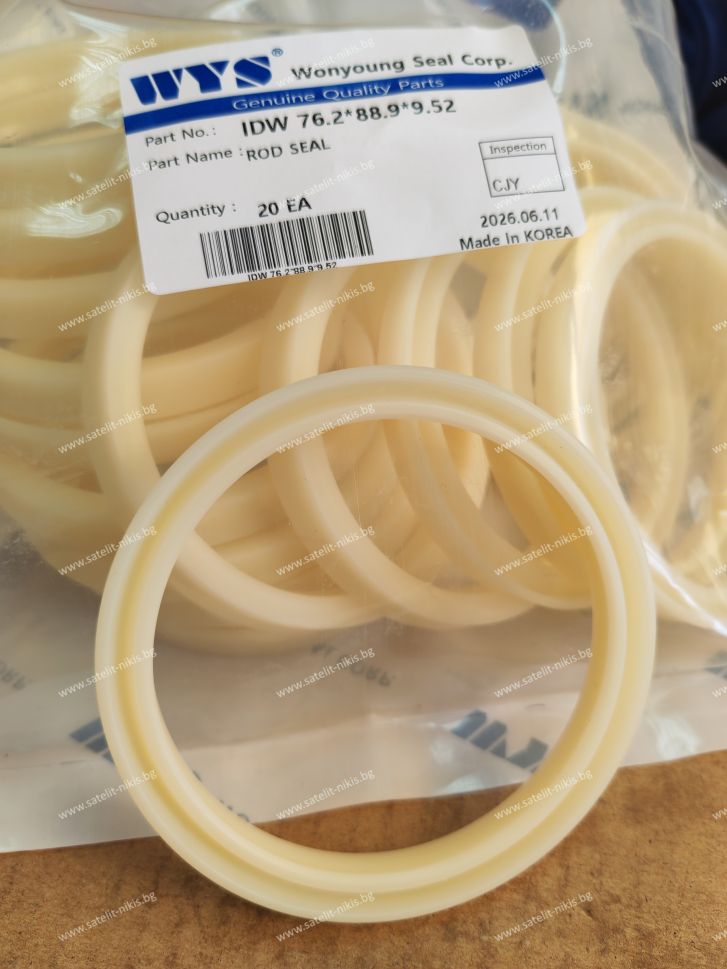

Hydraulic rod seal IDW 76.2x88.9x9.52 PU92 WYS/Korea, up to 350 bar
-
Code:55076088095
-
Weight:0.020 Kgs
Product data
Ød=76.2 mm; ØD=88.9 mm; h=9.52 mm
Material: PU92
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 350 bar
Speed: ≤ 0.03~1.0 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils and emulsions
Manufacturer:
Estimated Shipping
to Targovishte starts at
€3.31
outside Targovishte starts at
€3.43
outside Targovishte starts at
€3.28
to Targovishte starts at
€3.28
IDW hydraulic rod seal is a lip type seal that has two sealing lips and fits tightly at the outer diameter. Due to the presence of lubricant between the two lips, it greatly prevents dry friction and wear. In some cases, this type of seal can even replace expensive series configurations.
IDW rod seals main advantages:
• Excellent wear resistance
• Impact resistance, anti extrusion
• Small compression deformation
• Adapted to the most demanding working conditions thanks to the pressure medium between the sealing lips
• Adequate lubrication
• Improved sealing performance under pressure
• Very good at preventing external air from entering the system
• Easy to install
Scope of application:
Pressure: ≤350 bar
Operating temperature: -30°C to +100°C
Surface speed: 0.03~1.0 m/s
Medium: mineral-based hydraulic oils, emulsions
Material: PU92 Shore. Compared with other polyurethane materials currently sold in the market, its main advantages include improved heat resistance, enhanced hydrolysis resistance, and small compression deformation.
