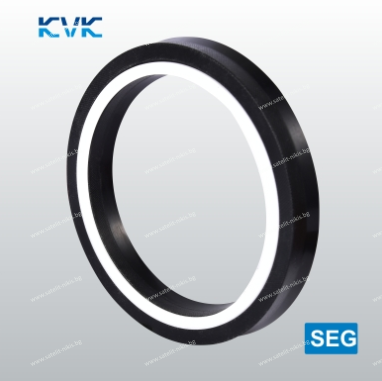

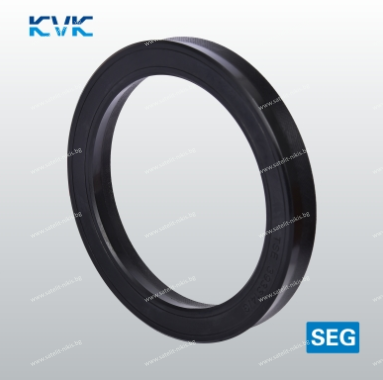

Hydraulic Piston and Rod Seal SEG 40x50x10 NBR+fabric NBR+POM 500 bar KVK/China
Price:
€3.56
-
Code:30040050100
-
Weight:0.021 Kgs
Product data
Ød=40 mm; ØD=50 mm; L=13 mm; M=48.5 mm
Material: NBR+fabic NBR+POM
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 500 bar
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +12°C
Media: mineral hydraulic oils, water-glycol hydraulic oils, emulsions
Manufacturer:
Zhongxingshun Sealing Products Factory
Estimated Shipping
to Targovishte starts at
€3.31
outside Targovishte starts at
€3.43
outside Targovishte starts at
€3.28
to Targovishte starts at
€3.28
Product Details

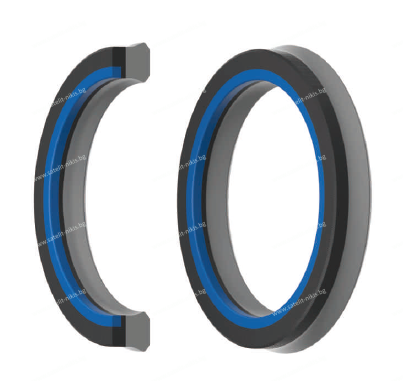

Piston Rod Seal with Inner Diameter Support Ring
Easy to Install, High Wear Resistance, High Extrusion Resistance, Low Deformation
Material: NBR+fabic NBR+POM
Media: General Petroleum-Based Hydraulic Oil
Working Temperature ℃: -30 to +120
Speed: ≤0.5m/s
Working Pressure: 500bar
