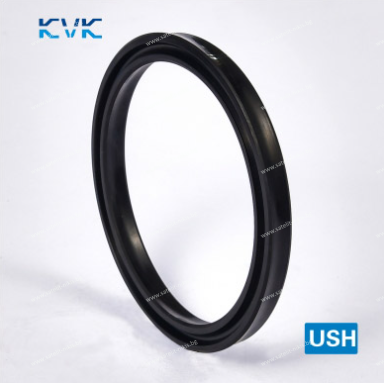

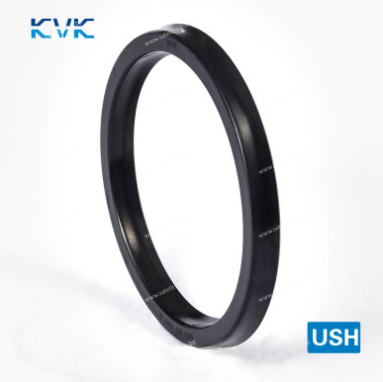

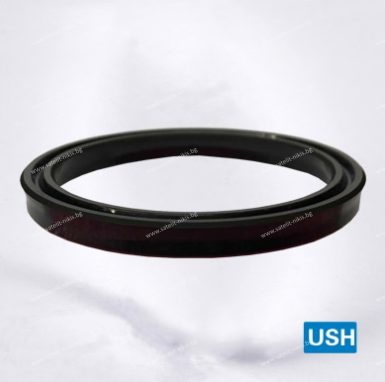

Hydraulic piston and rod seal UPH 38x50x6 NBR90 up to 210 bar KVK/China
Price:
€1.58
-
Code:55038050062
-
Weight:0.020 Kgs
Product data
The hydraulic seal UPH has a symmetrical design and is suitable for both piston and rod.
Ød=38 mm ; ØD=50 mm ; h=6 mm ; ØD1=49 mm ; HA =8 mm ; HB = 9.5 mm ; C =4 mm
Material: NBR90
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 210 bar; when the pressure is higher than 150 bar, it is recommended to use a back-up ring
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)
Manufacturer:
Zhongxingshun Sealing Products Factory
