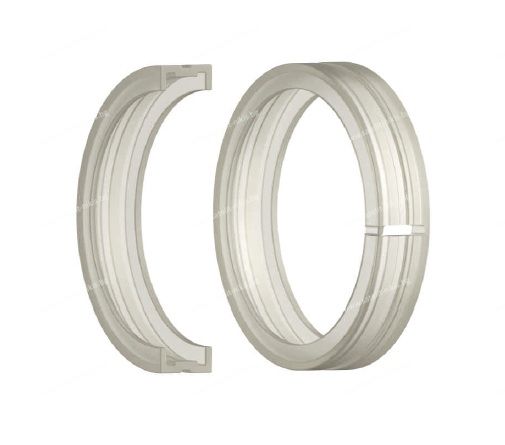

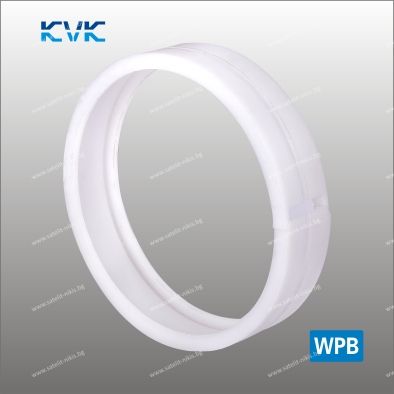

Guide ring WPB 70x60x18 POM up to 210 bar KVK/China
-
Code:48070060180
-
Weight:0.020 Kgs
Product data
ØD=70 mm ; Ød=60 mm ; h=18 mm
Application range:
Pressure: 21~210 bar
Operating temperature: -25°C to +80°C
Surface speed: ≤ 0.5 m/s
Media: Petroleum-based hydraulic fluid, ethylene glycol, oil emulsion, phosphate ester
Material: POM -Polyoxymethylene (Acetal)
Manufacturer:
Zhongxingshun Sealing Products Factory
Estimated Shipping
to Targovishte starts at
€3.31
outside Targovishte starts at
€3.43
outside Targovishte starts at
€3.28
to Targovishte starts at
€3.28
The plastic retaining ring, which is used together with the seal and the replaceable seal in the groove, also serves as a support guide ring. It can be installed in the integrated groove, which improves the pressure resistance and durability of the seal, while preventing the piston and piston rod from seizing and eccentric displacement.
Application range:
Standard hydraulic cylinder
Industrial vehicle cylinders
Machine tool cylinders
