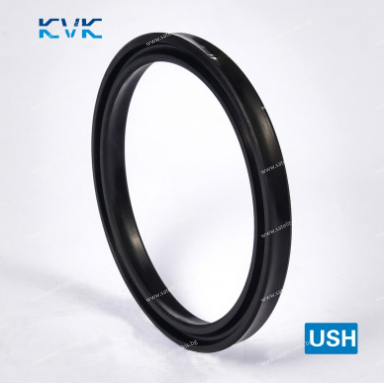

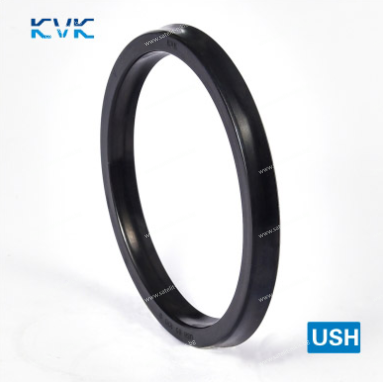

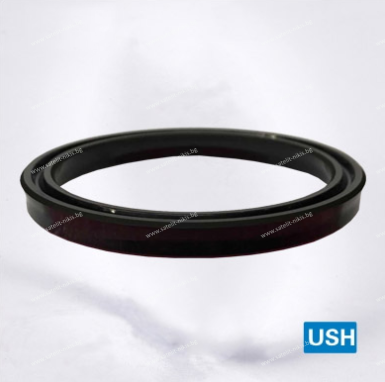

Hydraulic piston and rod seal USH 16x22x5 NBR90 up to 210 bar KVK/China
Price:
€1.06
2.07лв.
-
Code:55016022052
-
Weight:0.002 Kgs
Product data
The hydraulic seal USH has a symmetrical design and is suitable for both piston and rod.
Ød=16 mm; ØD=22 mm; h=5 mm
Material: NBR90
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 210 bar; when the pressure is higher than 150 bar, it is recommended to use a back-up ring
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)
Manufacturer:
Zhongxingshun Sealing Products Factory
