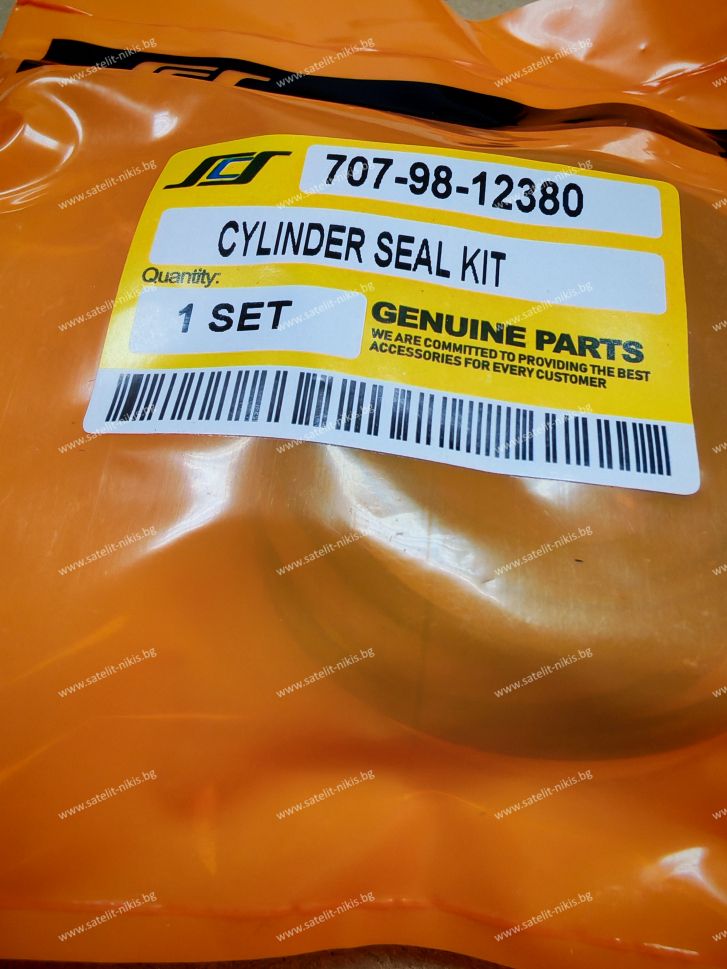

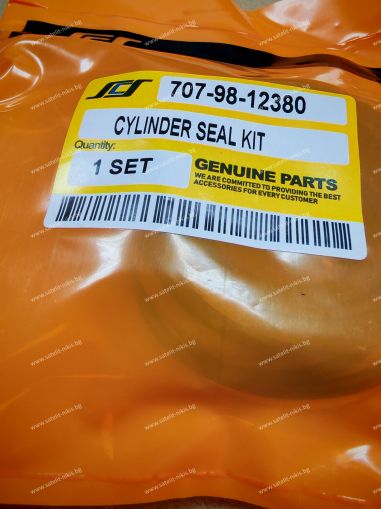

Boom Cylinder Seal Kit 707-98-12380 for KOMATSU exkavators

Price: €20.15 39.41лв.

Code:

707-98-12380
Weight:

0.120 Kgs

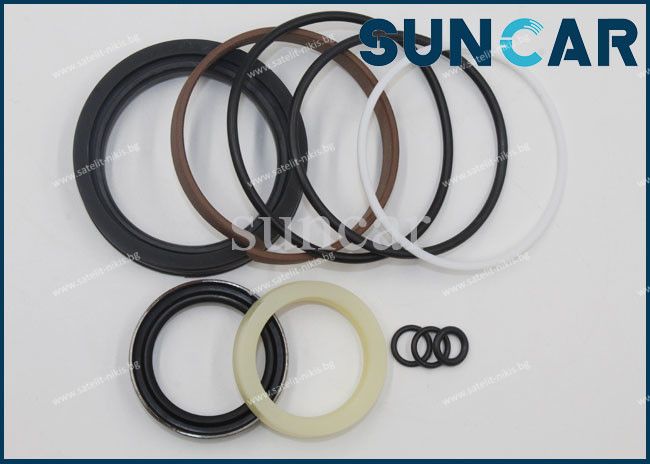

Repair kit for the boom cylinder of KOMATSU excavators.

Piston diameter (d): 35.00 mm

Cylinder diameter (D): 60.00 mm

Related parts:

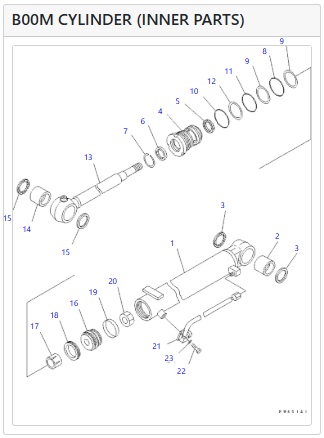

Pos.	Part No	Qty	Parts name
G1.	22J-63-X2211	[1]	CYLINDER GROUP,BOOM
	22J-63-02211	[1]	CYLINDER ASSEMBLY,BOOM
1.	22J-63-56341	[1]	CYLINDER
2.	20A-70-11220	[1]	BUSHING
3.	07145-00035	[2]	SEAL,DUST (KIT)
4.	707-29-60210	[1]	HEAD,CYLINDER
5.	707-51-35210	[1]	PACKING,ROD (KIT)
6.	175-63-75190	[1]	SEAL,DUST (KIT)
7.	07179-12047	[1]	RING,SNAP
8.	07000-12055	[1]	O-RING (KIT)
9.	07146-02056	[2]	RING,BACK-UP (KIT)
10.	07000-12060	[1]	O-RING (KIT)
12.	707-35-52560	[1]	RING,BACK-UP (KIT)
13.	22J-63-56321	[1]	ROD,PISTON
16.	707-36-60140	[1]	PISTON
17.	707-71-70480	[1]	PLUNGER
18.	707-44-60180	[1]	RING,PISTON (KIT)
19.	707-39-60190	[1]	RING
20.	01580-02419	[1]	NUT
21	20W-63-57380	[1]	TUBE
22	01010-80816	[1]	BOLT
23	01643-30823	[1]	WASHER
K.	707-98-12380	[1]	SERVICE KIT,BOOM CYLINDER

Suitable for KOMATSU:

PC15MR-1,PC15MRX-1

Manufacturer:
