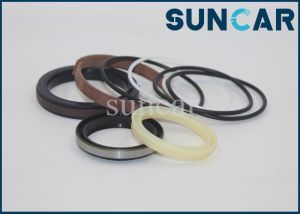

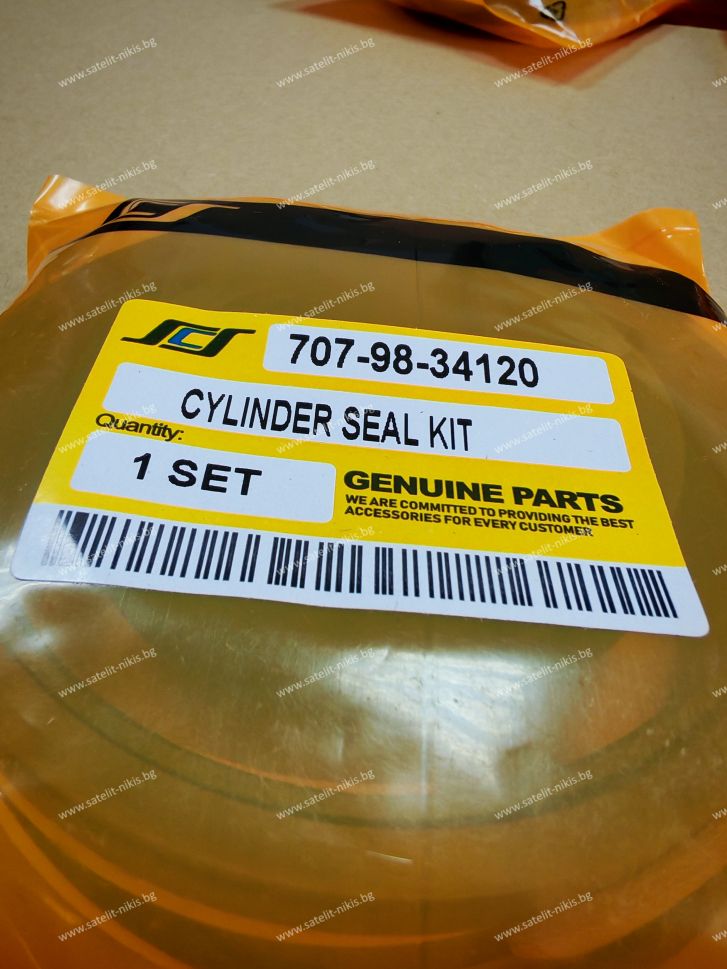

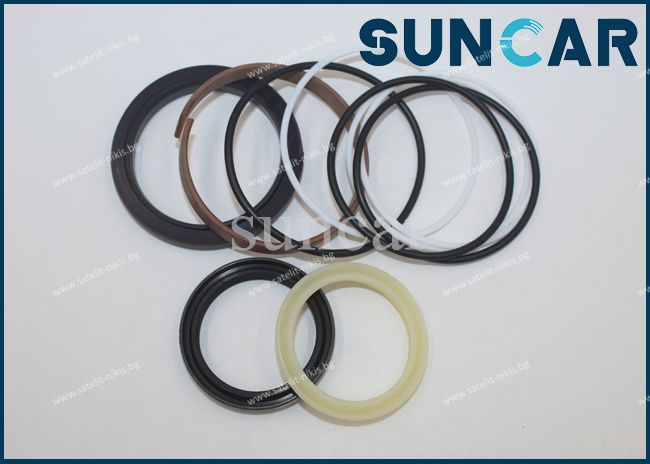

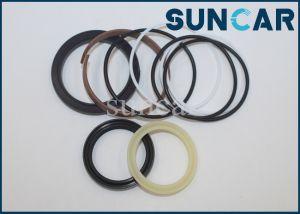

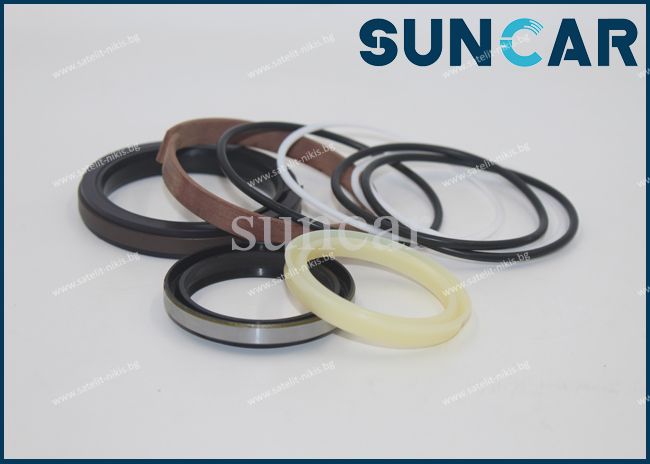

Boom Cylinder Seal Kit 707-98-34120 for KOMATSU exkavators

Price: €28.79 56.31лв.

Code:

707-98-34120
Weight:

0.200 Kgs

Repair kit for the boom cylinder of KOMATSU excavators.

Piston diameter (d): 55.00 mm

Cylinder diameter (D): 10.00 mm

Related Parts:

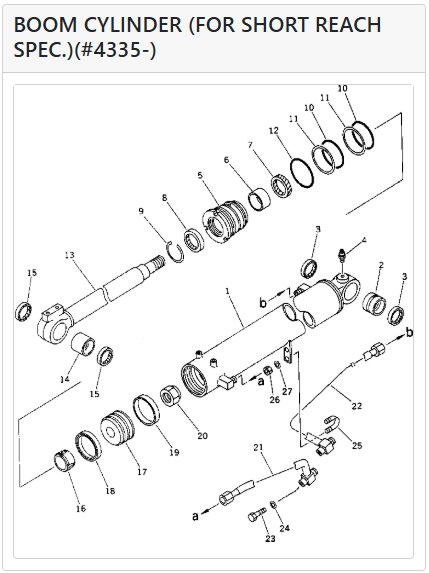

POS.	Number	Name	Qty.
G-1	20U-63-X2160	BOOM CYLINDER GROUP	1
	20U-63-02160	CYLINDER ASSEMBLY	1
1	20U-63-56340	• CYLINDER	1
2	07144-10505	• BUSHING	1
3	07145-00050	• SEAL,DUST (KIT)	2
4	07020-00000	• FITTING,GREASE	1
5	707-29-10330	• HEAD,CYLINDER	1
6	07177-05530	• BUSHING	1
7	707-51-55211	• PACKING,ROD (KIT)	1
8	707-56-55510	• SEAL,DUST (KIT)	1
9	07179-12069	• RING,SNAP	1
10	07000-12095	• O-RING (KIT)	2
11	07146-02096	• RING,BACK-UP (KIT)	2
12	07000-02100	• O-RING (KIT)	1
13	20U-63-56320	• ROD,PISTON	1
14	07143-10505	• BUSHING	1
15	07145-00050	• SEAL,DUST (KIT)	2
16	707-71-60640	• PLUNGER	1
17	707-36-10340	• PISTON	1
18	707-44-10180	• RING,PISTON (KIT)	1
19	07156-01012	• RING,WEAR (KIT)	1
20	07165-13638	• NUT,NYLON	1
21	20U-63-56370	TUBE	1
22	20U-63-56280	TUBE	1
23	01010-51020	BOLT	1
24	01643-31032	WASHER	1
25	07283-22236	CLIP	1
26	01599-01011	NUT	2
27	01643-31032	WASHER	2
K	707-98-34120	SERVICE KIT	1
	07145-00050	• SEAL,DUST	4
	707-51-55211	• PACKING,ROD	1
	707-56-55510	• SEAL,DUST	1
	07000-12095	• O-RING	2
	07146-02096	• RING,BACK-UP	2
	07000-02100	• O-RING	1
	707-44-10180	• RING,PISTON	1
	07156-01012	• RING,WEAR	1

Suitable for KOMATSU:

PC50UU-2, PC50UU-1, PC50UD-2
