Blade Lift Cylinder Seal Kit 707-98-13890 for KOMATSU exkavators

Price: €33.89 66.28лв.

Code:

707-98-13890
Weight:

0.400 Kgs

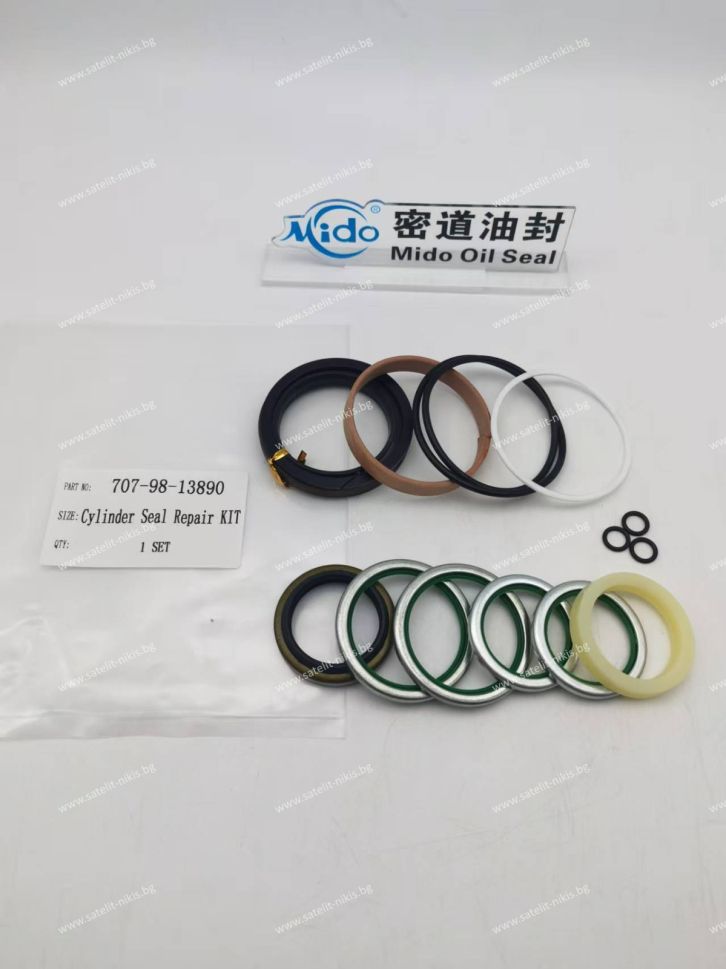

Repair kit for the blade lift cylinder of KOMATSU excavators.

Piston diameter (d): 35.00 mm

Cylinder diameter (D): 65.00 mm

Related Parts:

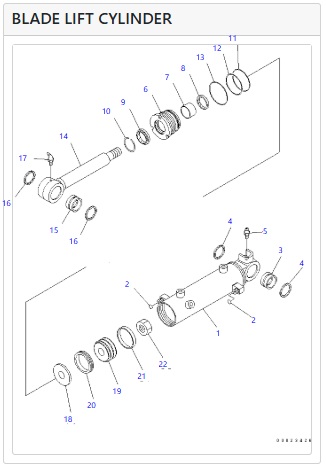

Pos.	Part No.	Parts Name	QTY.
	707-00-0Y770	CYLINDER ASSEMBLY,(FINAL COATING)	1
	707-00-0F780	CYLINDER ASSEMBLY	1
1	707-11-65690	• CYLINDER	1
2	02896-11008	• O-RING (KIT)	2
3	20P-71-81130	• BUSHING	1
4	07145-00045	• SEAL,DUST (KIT)	2
5	07020-00000	• FITTING,GREASE	1
6	707-29-65831	• HEAD,CYLINDER	1
7	07177-03525	• BUSHING	1
8	707-51-35210	• PACKING,ROD (KIT)	1
9	175-63-75190	• SEAL,DUST (KIT)	1
10	07179-12047	• RING,SNAP	1
11	07000-12060	• O-RING (KIT)	1
12	707-35-52660	• RING,BACK-UP (KIT)	1
13	07000-12065	• O-RING (KIT)	1
14	721-58-35570	• ROD,PISTON	1
15	20P-71-81130	• BUSHING	1
16	07145-00035	• SEAL,DUST (KIT)	2
17	07020-00675	• FITTING,GREASE	1
18	707-40-65270	• RETAINER	1
19	707-36-65270	• PISTON	1
20	707-44-65180	• RING,PISTON (KIT)	1
21	707-39-65190	• RING,WEAR (KIT)	1
22	707-67-27020	• NUT	1

Suitable for:

KOMATSU PC2000-8, PC20MR-2, PC20MR-2-A, PC20MR-2-B
