Blade Lift Cylinder Seal Kit 707-98-13850 for KOMATSU exkavators

Price: €33.89 66.28лв.

Code:

707-98-13850
Weight:

0.101 Kgs

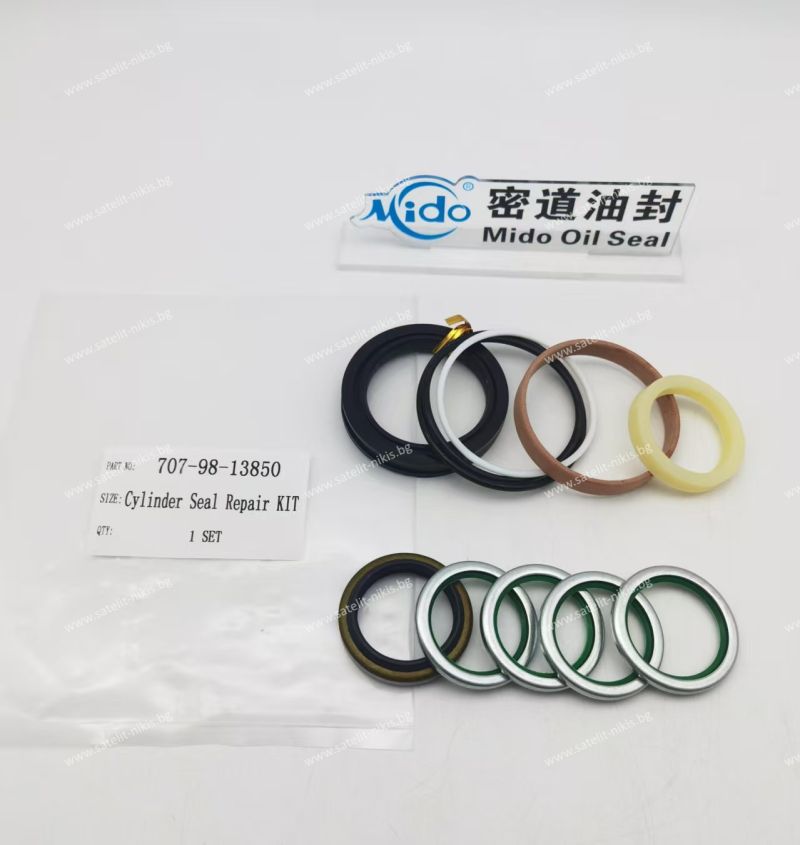

Repair kit for the blade lift cylinder of KOMATSU excavators.

Piston diameter (d): 35.00 mm

Cylinder diameter (D): 65.00 mm

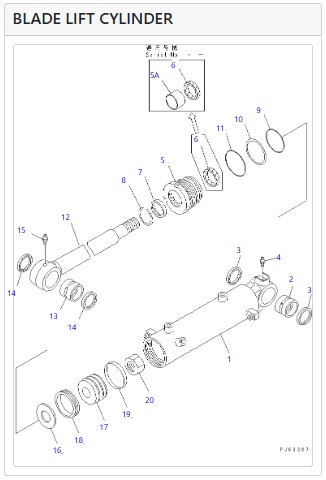

Related Parts:

Pos.	Part No	Qty	Parts name
	20N-63-02553	[1]	CYLINDER ASS'Y
1	20N-63-97542	[1]	CYLINDER
2	20P-71-81130	[1]	BUSHING
3	07145-00035	[2]	SEAL,DUST (KIT)
4	07020-00000	[1]	FITTING,GREASE
5	707-29-65120	[1]	HEAD,CYLINDER
6	707-51-35210	[1]	PACKING,ROD (KIT)
7	175-63-75190	[1]	SEAL,DUST (KIT)
8	07179-12047	[1]	RING,SNAP
9	07000-12060	[1]	O-RING (KIT)
10	707-35-52660	[1]	RING,BACK-UP (KIT)
11	07000-02065	[1]	O-RING (KIT)
12	20P-63-92121	[1]	ROD,PISTON
16	707-40-65270	[1]	RETAINER
17	707-36-65270	[1]	PISTON
18	707-44-65180	[1]	RING,PISTON (KIT)
19	707-39-65190	[1]	RING,WEAR (KIT)
20	158002722	[1]	NUT
KIT.		[1]	SERVICE KIT,BLADE LIFT CYLINDER

Suitable for:

KOMATSU PC20MR, PC20MRX, PC20R, PC20UU, PC28UU, PC30UU

Manufacturer:
