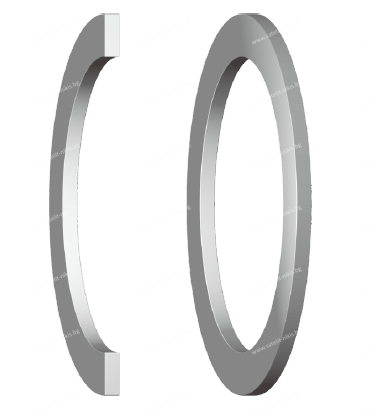

Back-up ring GKM 10x14x1.3 TPE Guarnitec/Italy
-
Code:49301001413
-
Weight:0.001 Kgs
Product data
d=10 mm; D=14 mm; h=1.3 mm; H1=4.5 mm; H2=5.8 mm
Material: TPE

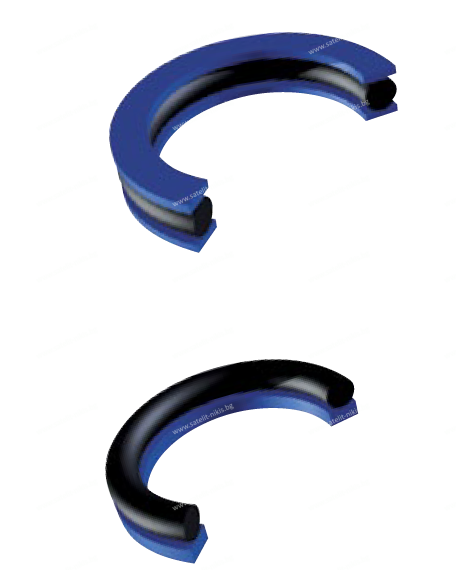

Working pressure, static radial sealing: up to 400 bar (O-ring + GKM)
Working pressure, dynamic radial sealing: up to 500 bar (O-ring + GKM)
Dynamic speed: up to 0.5 m/s
Rotational speed: up to 2 m/s
Working temperature: -40°C ~ +140°C
Working media: mineral oils
Manufacturer:
GUARNITEC S.r.l.
100% Made in Italy
For delivery options to your country, please do not hesitate to contact us!
Product photos are for illustrative purposes and may differ from the actual appearance of the item. This does not affect the characteristics of the product.
Estimated Shipping
to Targovishte starts at
€3.11
outside Targovishte starts at
€3.21
outside Targovishte starts at
€3.09
to Targovishte starts at
€3.09

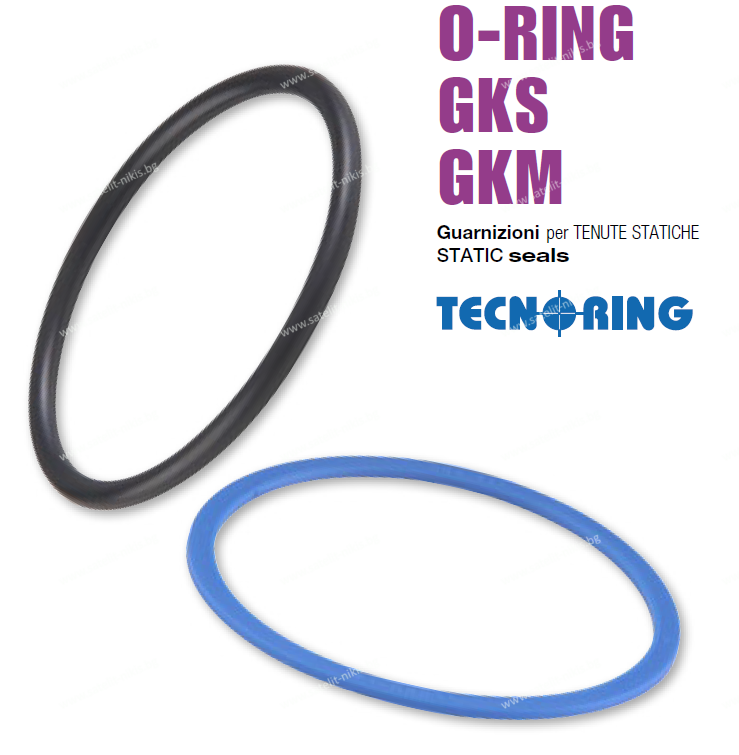

The GKM series by Guarnitec offer a list of special profile static back-up rings designed for high-pressure performance. GKM seals are primarily designed for static applications where the seal remains stationary within a joint or assembly, although they can be used in dynamic sealing functions as well, offering reliable sealing over extended periods. They are characterized by their ability to maintain a seal even under high pressure conditions and are often chosen over O-rings in certain applications because they are less prone to disruptions caused by rolling. During installation, precautions should be taken to avoid sharp edges.
GKM seals are produced in metric sizes.
