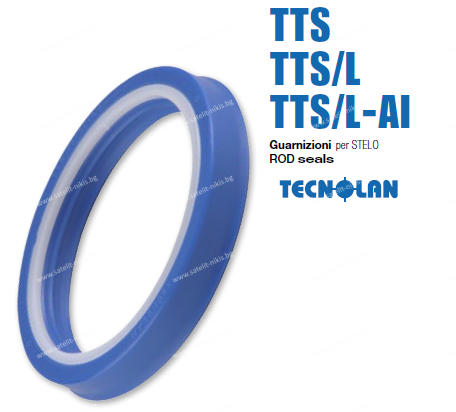

Hydraulic rod seal TTS/L 80x100x12/13 PU92 up to 400 bar GUARNITEC/Italy
-
Code:55020026058
-
Weight:0.002 Kgs
Product data
d=20 mm; D=26 mm; H=6 mm
Материал: PU92 Shore
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 400 bar
Speed: ≤ 0.5 m/s
Temperature: -35°C до +100°C
Media: mineral-based hydraulic oils
Manufacturer:
GUARNITEC S.r.l.
100% Made in Italy
For delivery options to your country, please do not hesitate to contact us!
Product photos are for illustrative purposes and may differ from the actual appearance of the item. This does not affect the characteristics of the product.
Estimated Shipping
to Targovishte starts at
€3.11
outside Targovishte starts at
€3.21
outside Targovishte starts at
€3.09
to Targovishte starts at
€3.09

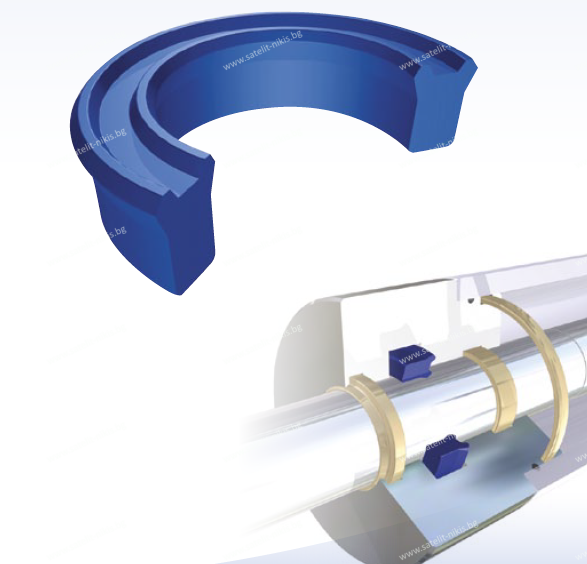

Double-lip rod seal TTS/L, designed for use in light to medium loads hydraulic cylinders rod applications is designed to prevent leakage of hydrauluc fluid around the rod of the hydraulic cylinder.
The TTS/L seal is designed to handle demanding conditions, offering features such as:
- high elasticity and low deformation - important for maintaining a tight seal under pressure and movement
- excellent abrasion resistance - ensures durability and longevity in applications with moving parts
- double-lip design - provides superior sealing performance, especially in high-friction and high-pressure scenarios
- suitability for telescopic cylinders - the double-lip design is particularly benefiction in these applications
TTS/L seals are suitable for various hydraulic cylinder applications, including construction machinery, forklifts, injection molding machines, agricultural machinery and mobile hydraulics.
Application range:
Pressure: ≤400 bar
Operating temperature: -35°C to +100°C
Superficial velocity: 0.5 m/s
Media: mineral-based hydraulic oils, emulsions
Material: PU92 Shore.
