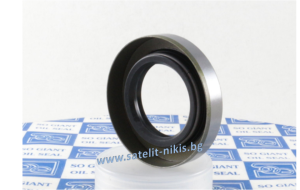

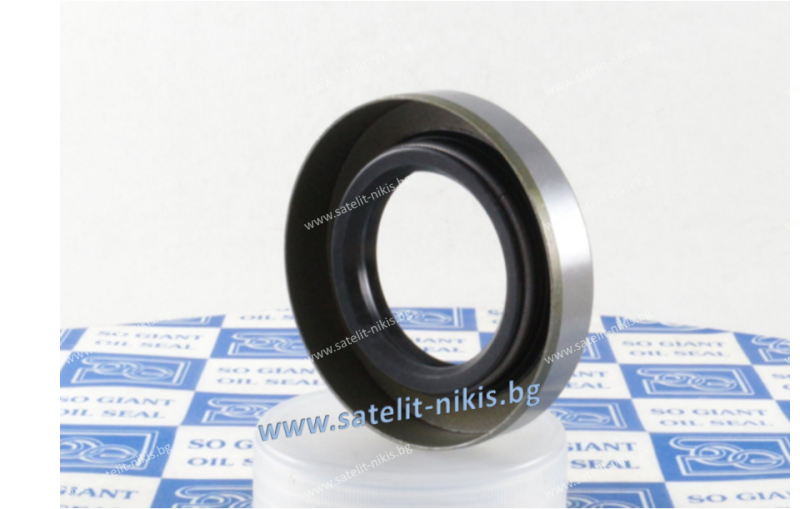

Oil seal TZ (BS) 52x64x9 NBR SOG/TW, for forklift TOYOTA 42125-3306071
In stock 20 pcs.
- Code:47052064095
- Weight:0.020 Kgs
Oil seal type TB (BS), with dust lip and with spring.
Material: nitrile rubber (NBR).
Helix:
OE references:
TOYOTA 42125-3306071
Suitable for:
| Model | Engine | Required | Notes |
| TOYOTA 02-5FD28 | 1Z | 2 | Outer |
| TOYOTA 02-5FD30 | 1Z | 2 | Outer |
| TOYOTA 02-5FDU30 | 1Z | 2 | Outer |
| TOYOTA 02-5FG28 | 4Y | 2 | Outer |
| TOYOTA 02-5FG30 | 4Y | 2 | Outer |
| TOYOTA 02-5FGU30 | 4Y | 2 | Outer |
| TOYOTA 5FD28 | 1Z | 2 | Outer |
| TOYOTA 5FD30 | 1Z | 2 | Outer |
| TOYOTA 5FG28 | 4Y | 2 | Outer |
| TOYOTA 5FG30 | 4Y | 2 | Outer |
(For reference only. We cannot guarantee 100% compatibility)
The nitrile rubber may vary in color from the one shown in the picture, without this affecting the sealing properties of the oil seal.
Manufacturer: SO GIANT OIL SEAL INDUSTRIAL CO., LTD
For delivery options to your country, please do not hesitate to contact us!
Product photos are for illustrative purposes and may differ from the actual appearance of the item. This does not affect the characteristics of the product.
Estimated Shipping
to Targovishte starts at €3.11outside Targovishte starts at €3.21
outside Targovishte starts at €3.09to Targovishte starts at €3.09
Rubber properties - Acrylnitrile-butadiene rubber (NBR):
Standard color: black
NBR rubber demonstrates excellent resistance to the effects of mineral oils. It also provides particularly good results with hydraulic oils, grease, diesel fuels plus other aliphatic hydrocarbons, diluted acids and alkaline solutions that do not contain aromatic or chlorinated additives. Its excellent mechanical properties, such as high resistance to pressure and abrasion, high stability and good temperature resistance (-20°С to +120 °С), ensure a wide application range for this rubber.
Advantages:
- good oil and fuel resistance (especially to hydraulic oils)
- good working temperature range: -20°С to +120 °С in oil
- good resistance to pressure
- good wear resistance and high tensile strength
- low swelling in water
Limitations:
- poor weather, light and ozone resistance
- poor resistance to polar fluids
- poor resistance to chlorinated hydrocarbons
