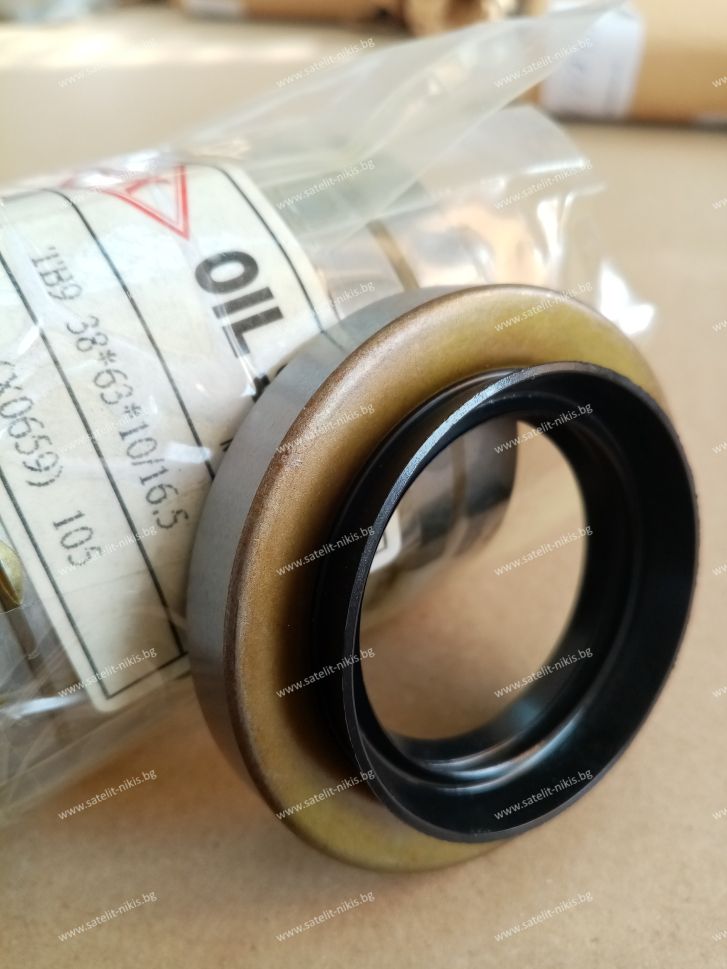

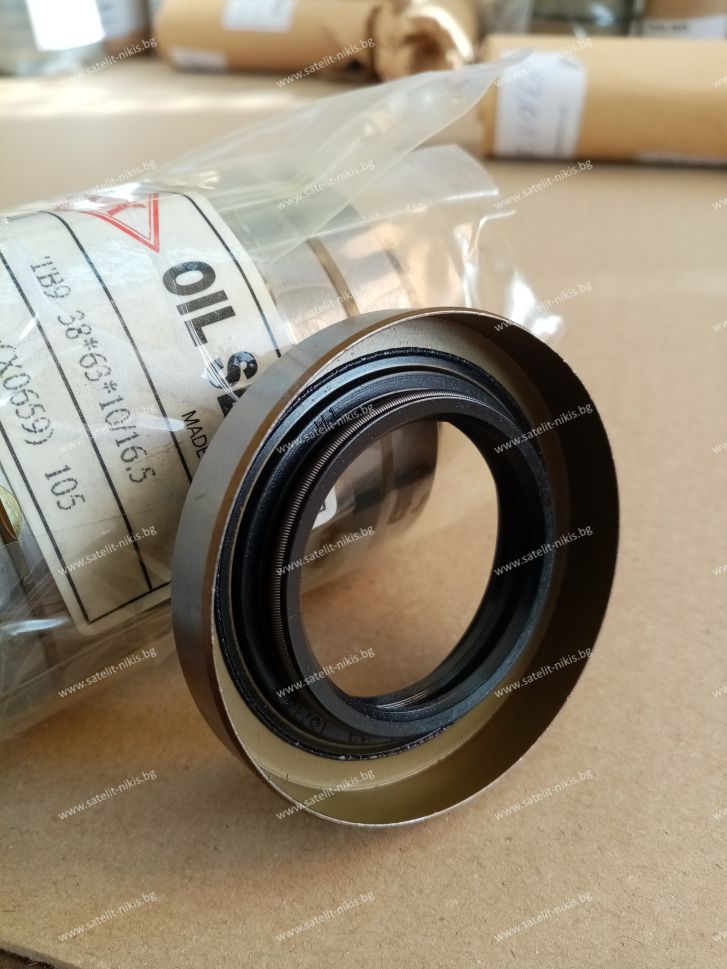

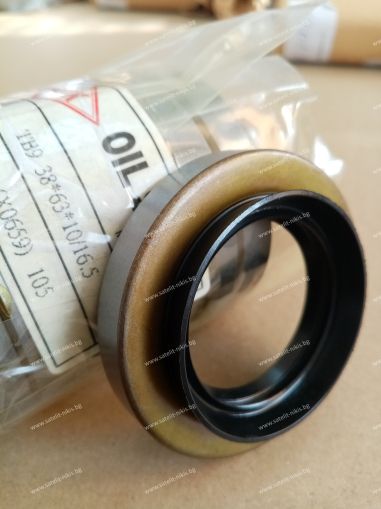

Oil seal TB9 38x63x10/16.5 NBR WLK/TW, for differential of TOYOTA 90311-38011

Suitable for:

• Toyota Carina, AA63, RA63, TA61, TA63
• Toyota Celica, AA63, GA61, MA61, MA63, RA60, RA61, RA63, RA65, SA63, TA61, TA63
• Toyota Chaser, GX100, GX61, GX71, GX81, GX90, JZX100, JZX105, JZX90, JZX93, LX100, LX65, LX90, MX61, MX71, RX63, SX100, SX90
• Toyota Corona, AT141, RT141, RT142, TT142
• Toyota Cressida, GX61, GX71, GX81, LX71, MX63, MX73, MX81, RX71, RX73, RX81
• Toyota Cresta, GX100, GX51, GX61, GX71, GX81, GX90, JZX100, JZX105, JZX90, JZX93, LX100, LX90, MX51, MX61, MX71, SX90
• Toyota Crown Majesta, GS141, GS151, JZS151, JZS153, LS141, LS151
• Toyota Crown, GS121, GS131, GS131H, GS141, GS151, GS151H, JZS151, JZS153, LS131, LS131H, LS141, LS151, LS151H, MS123, MS125, MS133
• Toyota Estima Emina, CXR11, CXR11G, CXR21, CXR21G, TCR11, TCR11G, TCR21, TCR21G
• Toyota Estima Lucida, CXR11, CXR11G, CXR21, CXR21G, TCR11, TCR11G, TCR21, TCR21G
• Toyota Estima, TCR11, TCR11W, TCR21, TCR21W
• Toyota Grand Hiace, KCH16, KCH16W, RCH11, VCH16, VCH16W, VCH28
• Toyota Granvia, KCH16, KCH16W, RCH11, RCH11W, VCH16, VCH16W, VCH28
• Toyota Hiace, KLH18, KLH28, LXH12, LXH18, LXH22, LXH28, RCH18, RCH19, RCH28, RCH29
• Toyota Mark II, GX100, GX61, GX71, GX81, GX90, JZX100, JZX105, JZX90, JZX90E, JZX93, LX100, LX65, LX90, LX90Y, MX61, MX63, MX71, RX63, SX90
• Toyota Previa, TCR11, TCR21
• Toyota Progres, JCG10
• Toyota Regius, KCH46, KCH46W, LXH49, RCH41, RCH41W, RCH47, RCH47W
• Toyota Soarer, GZ10, GZ20, MZ10, MZ11, MZ12
• Toyota Supra, GA70
• Toyota Touring Hiace, KCH46, KCH46W, LXH49, RCH41, RCH41W, RCH47, RCH47W

Rubber properties - Acrylnitrile-butadiene rubber (NBR):

Standard color: black

NBR rubber demonstrates excellent resistance to the effects of mineral oils. It also provides particularly good results with hydraulic oils, grease, diesel fuels plus other aliphatic hydrocarbons, diluted acids and alkaline solutions that do not contain aromatic or chlorinated additives. Its excellent mechanical properties, such as high resistance to pressure and abrasion, high stability and good temperature resistance (-20°С to +120 °С), ensure a wide application range for this rubber.

Advantages:

- good oil and fuel resistance (especially to hydraulic oils)

- good working temperature range: -20°С to +120 °С in oil

- good resistance to pressure

- good wear resistance and high tensile strength

- low swelling in water

Limitations:

- poor weather, light and ozone resistance

- poor resistance to polar fluids

- poor resistance to chlorinated hydrocarbons
