Home Hydraulic SealsHydraulic Piston SealsHydraulic piston seal type TPS/GHydraulic piston seal TPS/G 45x37x15.5 NBR+TPE+POM до 350 bar GUARNITEC/Italy

Hydraulic piston seal TPS/G 45x37x15.5 NBR+TPE+POM до 350 bar GUARNITEC/Italy

Price: €4.32

In stock 20 pcs.

  • Code:
    32045037155
  • Weight:
    0.011 Kgs

Product data

D=45 mm ; d=37 mm ;H=15.5 mm ; S= 3.2 mm ; M=41 mm ; F=44.4 mm



Материал: NBR+TPE+POM

Application range (the following limit values cannot appear at the same time):

Pressure: ≤ 350 bar
Speed: ≤ 0.5 m/s
Temperature: -35°C до +110°C
Media: mineral-based hydraulic oils

Manufacturer:

GUARNITEC S.r.l.

100% Made in Italy



For delivery options to your country, please do not hesitate to contact us!

Product photos are for illustrative purposes and may differ from the actual appearance of the item. This does not affect the characteristics of the product.

Estimated Shipping

to Targovishte starts at €3.11outside Targovishte starts at €3.21
to Targovishte starts at €2.86outside Targovishte starts at €2.86
Quantity:+-
Add to wishlist
New Product
Hydraulic piston seal TPS/G 45x37x15.5 NBR+TPE+POM до 350  bar GUARNITEC/Italy
Hydraulic piston seal TPS/G 45x37x15.5 NBR+TPE+POM до 350  bar GUARNITEC/Italy

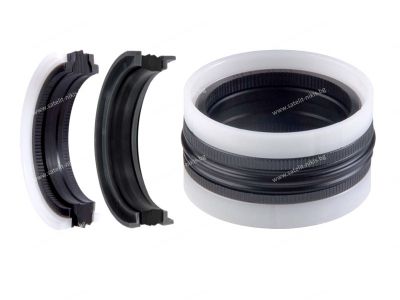

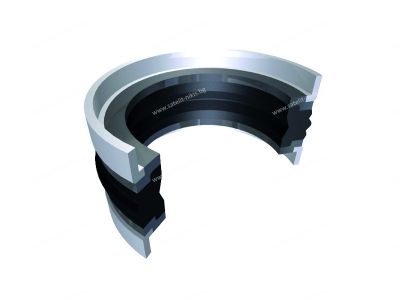

The double-acting compact piston seal type TPS/G is designed for use in hydraulic cylinders with medium to heavy loads and is entirely designed for piston applications. It is a package consisting of one NBR 80 Shore sealing ring, two thermoplastic plastic (TPE) support rings and two polyacetal (POM) guide rings. TPS/G offers a complete solution of the "one seal covers the needs of one piston", with excellent performance, very economical sealing and guiding action, long service life, extremely easy installation /thanks to the gaps in the support and guide rings/.

Application range:
Pressure: ≤350 bar
Operating temperature: -35°C to +110°C
Surface speed: 0.5 m/s
Media: mineral-based hydraulic oils, emulsions
