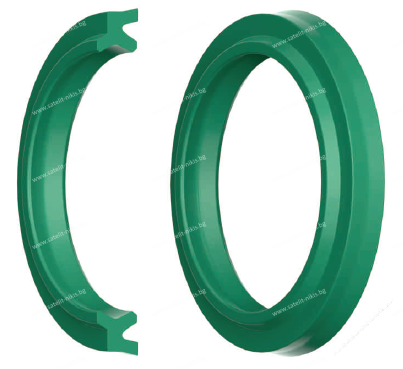

Double wiper H32 40x48x5/6.5 PU93 KVK/China KVK/China
In stock 10 pcs.
- Code:58040048058
- Weight:0.020 Kgs
Product data
Ød=40 mm ; ØD=48 mm ; t=5 mm ; h=6.5 mm ; ØE=44 mm ; H=6 mm
Material: PU93
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 2 bar
Speed: ≤ 0.1 m/s
Temperature: -30°C ~ +80°C
Media: mineral hydraulic oils, water-glycol hydraulic oils, emulsions
Manufacturer:
Zhongxingshun Sealing Products Factory
Estimated Shipping
to Targovishte starts at €3.11outside Targovishte starts at €3.21
to Targovishte starts at €2.86outside Targovishte starts at €2.86
Product Details
Overview
In the hydraulic cylinder, the dust seal is placed on the piston rod and piston, which perform axial movement. If dust enters the hydraulic cylinder during the movement of the piston rod and piston, it will lead to premature wear of the seals and support rings. The H32 dust seal can effectively prevent dust from entering the hydraulic cylinder.
Advantages
It has a good scraping effect even for heavily adsorbed dust; it has the function of storing and returning residual oil; it is also a standard component that meets standard channels.
Application
Universal dust seal for hydraulic systems.
Technical parameters
Pressure: Dust scraping side: atmospheric pressure
Sealing edge: ≤2MPa, if the pressure is high, a pressure relief hole should be provided
Temperature: -30℃ ~ +80℃
Speed: reciprocating ≤1.0m/s
Media: mineral oil, grease and flame retardant liquid, etc.
Material
High-quality imported polyurethane (TPU), Shore hardness (SHA) 93°
Installation requirements
In order to ensure that the seal is not damaged during installation, the seal installation requirements must be strictly followed.
