Hydraulic piston seal KDAS 80x60x22.4 NBR+POM+TPE до 250 bar KVK/China
Price: €5.02
In stock 60 pcs.
- Code:32080060224
- Weight:0.023 Kgs
Product data

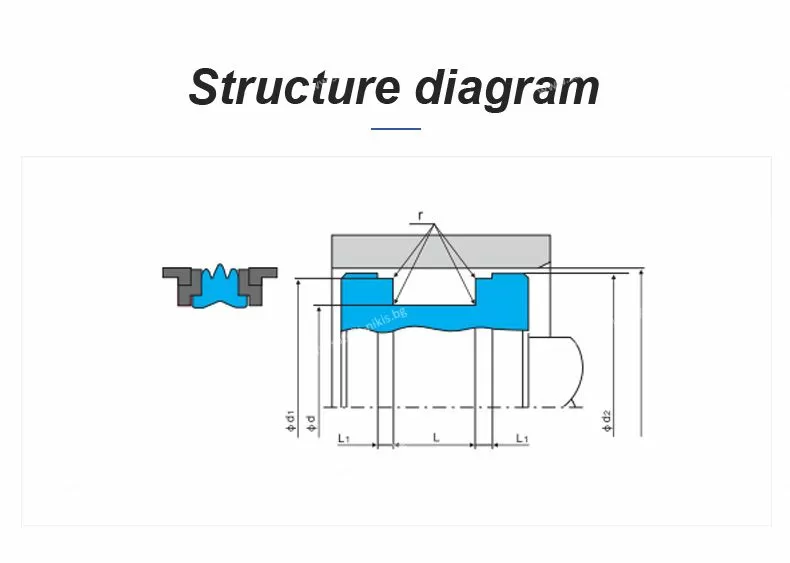

| Model | ØD | Ød | L | d1 | d2 | L1 | r |
| KDAS-80 60 | 80 | 60 | 22.4 | 74.15 | 78.3 | 6.35 | 0.4 |
Material: NBR+POM+TPE
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 250 bar
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils
Manufacturer:
Zhongxingshun Sealing Products Factory
Estimated Shipping
to Targovishte starts at €5.36outside Targovishte starts at €5.46
to Targovishte starts at €2.86outside Targovishte starts at €2.86

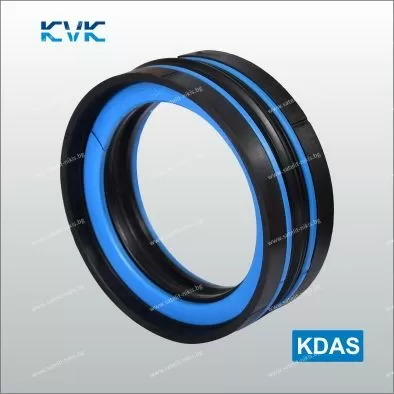

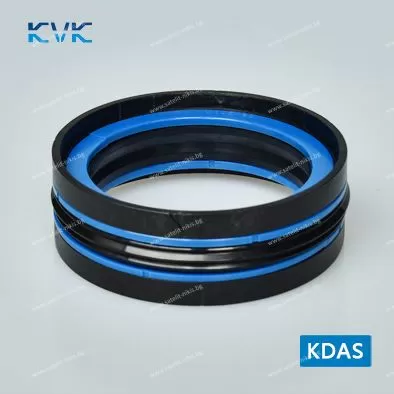

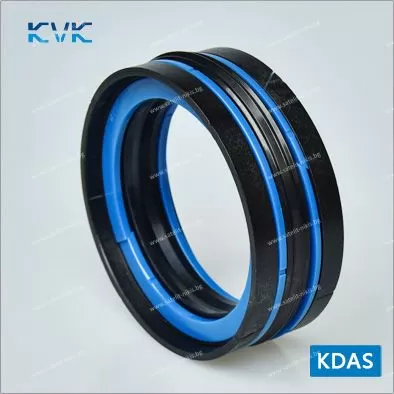

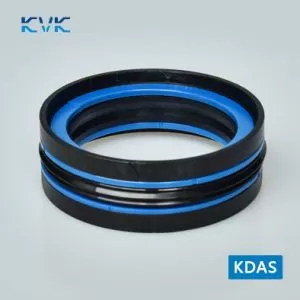

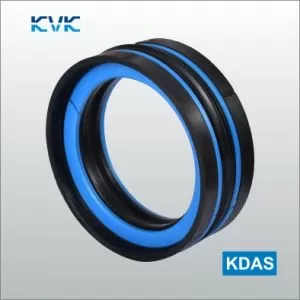

KDAS compact hydraulic seal set is a five-piece compression piston sealing seal composed of a special-shaped NBR sealing ring, two retaining rings and two guide support rings. It has excellent sealing performance and is suitable for bearing pressure on both sides of the seal. The active piston is not squezzed into the radial sealing gap during the sealing process, thus preventing the sealing element from twisting.
