Cover seal A403-090 90x110x12.3 PU95 Alp for rod applications
Price: €2.63
In stock 10 pcs.
- Code:49409011012
- Weight:0.040 Kgs

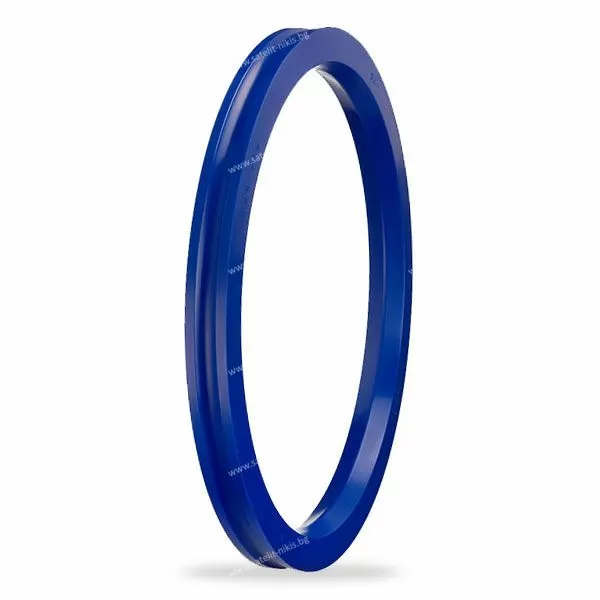

ALP A403 cover seals are produced from high performance PU material, and can be used safely for inner sealing in hydraulic cylinders instead of statically-functioning O-rings.
| TECHNICAL DATA | ||
| Working Pressure | 630 Bar | |
| Working Temperature | -35/+110°C | |
| Material | 95 PU | |
| Media | Mineral Base Hydraulic Oil | |

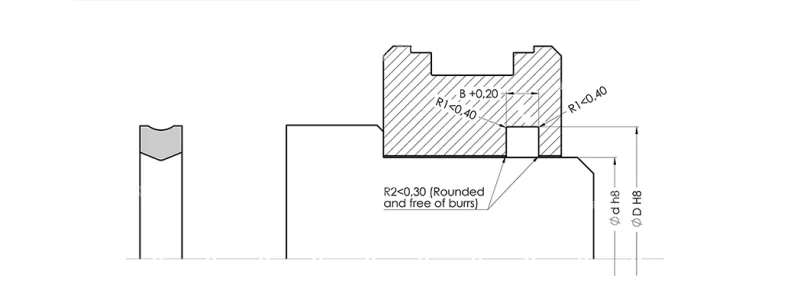

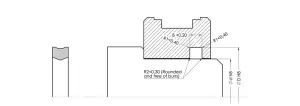

| Surface Roughness | ||
| Ra | Rmax | |
| Working Surface | ≤0.8 μm | ≤3.2 μm |
| Groove Base | ≤1.6 μm | ≤6.3 μm |
| Groove Flanks | ≤6.3 μm | ≤16.0 μm |
Manufacturer:
ALP KAUCUK SANAYI VE TICARET A.S.
Estimated Shipping
to Targovishte starts at €5.18outside Targovishte starts at €5.28
to Targovishte starts at €2.73outside Targovishte starts at €2.73
Manufactured sizes:
| ALP NO | DIMENSION | Ød | ØD | B |
|
A403-009
|
9,6x12,9x3,1 | 9,6 | 12,9 | 3,1 |
| A403-020 | 20x24x4,8 | 20 | 24 | 4,8 |
| A403-025 | 25x29,2x5 | 25 | 29,2 | 5 |
| A403-030 | 30x34x4,8 | 30 | 34 | 4,8 |
| A403-035 | 35x39,5x4,5 | 35 | 39,5 | 4,5 |
| A403-040 | 40x46x3 | 40 | 46 | 3 |
| A403-050 | 50x58x6,4 | 50 | 58 | 6,4 |
| A403-055 | 55x60,4x6,2 | 55 | 60,4 | 6,2 |
| A403-060 | 60x65,5x5,2 | 60 | 65,5 | 5,2 |
| A403-070 | 70x75,6x6,2 | 70 | 75,6 | 6,2 |
| A403-080 | 80x90x10,5 | 80 | 90 | 10,5 |
| A403-090 | 90x110x12,3 | 90 | 110 | 12,3 |
| A403-105 | 105x112,8x5,8 | 105 | 112,8 | 5,8 |
| A403-110 | 110x117x4,7 | 110 | 117 | 4,7 |
| A403-120 | 120x140x12,3 | 120 | 140 | 12,3 |
