A107-045/6 45x53x6.3 NBR80/ NBR90 fabric Alp 250bar rod piston seal
Price: €2.97
In stock 10 pcs.
- Code:55045053069
- Weight:0.005 Kgs

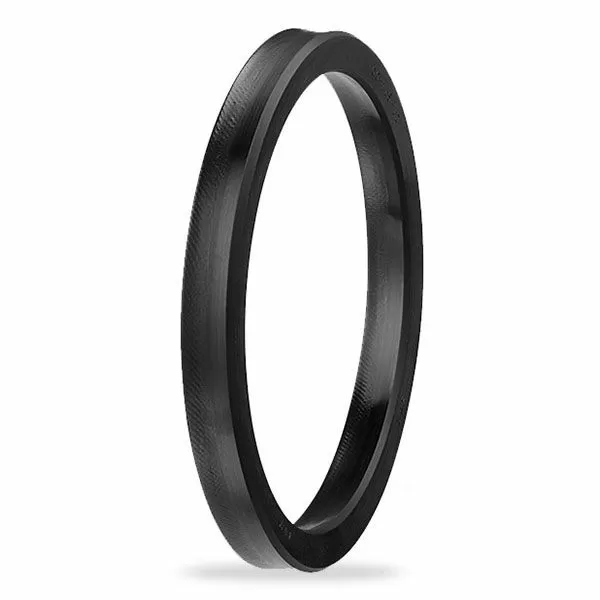

А107 rod piston seal for hydraulic cylinder.
Material: NBR 80 + fabric NBR 90
Media: mineral-base hydraulic oils
Working pressure: 250 bar
Sizes produced: HERE
Manufacturer:
ALP KAUCUK SANAYI VE TICARET A.S.
Estimated Shipping
to Targovishte starts at €5.18outside Targovishte starts at €5.28
to Targovishte starts at €2.73outside Targovishte starts at €2.73
|
TECHNICAL DATA |
||
|
Working pressure |
250 bar |
|
|
Working temperature |
-30 +105 °C |
|
|
Sliding speed |
0.5 m/s |
|
|
Material |
NBR 80 + fabric NBR 90 |
|
|
Media |
Mineral-base hydraulic oils |
|
|
Surface roughness |
||
|
|
Ra |
Rmax |
|
Dynamic surface |
≤ 0.3 μm |
≤ 3 μm |
|
Groove base |
≤ 1.8 μm |
≤ 10 μm |
|
Groove flanks |
≤ 3.2 μm |
≤ 16 μm |
|
Maximum permissible gap for NBR |
||
|
Working pressure (bar) |
S (mm) |
|
|
150 |
0.2 |
|
|
250 |
0.1 |
|
Sizes produced: HERE

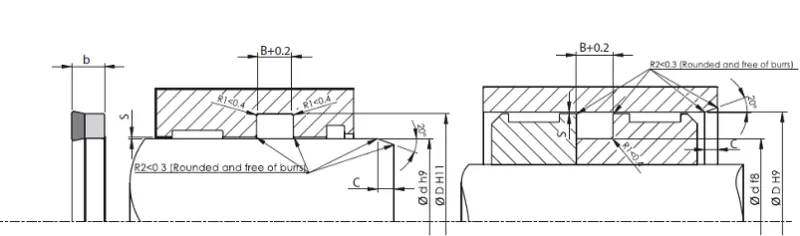

| ALP NO | DIMENSION | Ød | ØD | b | B | C |
| A107-040/2 | 40X48X8 | 40 | 48 | 7,2 | 8 | 5 |
| A107-040/3 | 40X50X7 | 40 | 50 | 6,3 | 7 | 5 |
| A107-040/4 | 40X48X6,5 | 40 | 48 | 5,85 | 6,5 | 5 |
| A107-040/5 | 40X60X14,5 | 40 | 60 | 13,05 | 14,5 | 5 |
| A107-040/6 | 40X50X11 | 40 | 50 | 9,9 | 11 | 5 |
| A107-040/8 | 40X48X7 | 40 | 48 | 6,3 | 7 | 5 |
| A107-040/9 | 40X48X9 | 40 | 48 | 8,1 | 9 | 5 |
| A107-042 | 42X50X6,3 | 42 | 50 | 5,65 | 6,3 | 5 |
| A107-045 | 45X53X8,5 | 45 | 53 | 7,65 | 8,5 | 5 |
| A107-045/1 | 45X55X8 | 45 | 55 | 7,2 | 8 | 5 |
| A107-045/2 | 45X55X10,5 | 45 | 55 | 9,45 | 10,5 | 5 |
| A107-045/3 | 45X60X11 | 45 | 60 | 9,9 | 11 | 5 |
| A107-045/5 | 45X65X14,5 | 45 | 65 | 13,05 | 14,5 | 5 |
| A107-045/6 | 45X53X6,3 | 45 | 53 | 5,65 | 6,3 | 5 |
| A107-045/7 | 45X53X6 | 45 | 53 | 5,4 | 6 | 5 |
| A107-045/8 | 45X60X12 | 45 | 60 | 10,8 | 12 | 5 |
| A107-048 | 48X60X10 | 48 | 60 | 9 | 10 | 5 |
| A107-050 | 50X62X9,5 | 50 | 62 | 8,55 | 9,5 | 5 |
| A107-050/1 | 50X60X7,5 | 50 | 60 | 6,75 | 7,5 | 5 |
| A107-050/2 | 50X60X8 | 50 | 60 | 7,2 | 8 | 5 |
| A107-050/3 | 50X60X10 | 50 | 60 | 9 | 10 | 5 |
| A107-050/4 | 50X70X14,5 | 50 | 70 | 13,05 | 14,5 | 5 |
| A107-050/5 | 50X62X9 | 50 | 62 | 8,1 | 9 | 5 |
| A107-055 | 55X65X8 | 55 | 65 | 7,2 | 8 | 5 |
| A107-055/3 | 55X63X8,3 | 55 | 63 | 7,45 | 8,3 | 5 |
| A107-055/4 | 55X65X7 | 55 | 65 | 6,3 | 7 | 5 |
| A107-056 | 56X66X8 | 56 | 66 | 7,2 | 8 | 5 |
| A107-056/2 | 56X71X14 | 56 | 71 | 12,6 | 14 | 5 |
| A107-060 | 60X70X8 | 60 | 70 | 7,2 | 8 | 5 |
| A107-060/1 | 60X70X7,5 | 60 | 70 | 6,75 | 7,5 | 5 |
| A107-060/2 | 60X72X9,5 | 60 | 72 | 8,55 | 9,5 | 5 |
| A107-060/4 | 60X72X10 | 60 | 72 | 9 | 10 | 5 |
| A107-060/5 | 60X75X13 | 60 | 75 | 11,7 | 13 | 5 |
| A107-060/6 | 60X80X14,5 | 60 | 80 | 13,05 | 14,5 | 5 |
| A107-065/1 | 65X77X9,6 | 65 | 77 | 8,65 | 9,6 | 5 |
| A107-070 | 70X80X7,5 | 70 | 80 | 6,75 | 7,5 | 5 |
| A107-070/1 | 70X82X9,6 | 70 | 82 | 8,65 | 9,6 | 5 |
| A107-070/2 | 70X82X9 | 70 | 82 | 8,1 | 9 | 5 |
| A107-070/3 | 70X90X14 | 70 | 90 | 12,6 | 14 | 5 |
| A107-070/5 | 70X80X8 | 70 | 80 | 7,2 | 8 | 5 |
| A107-070/6 | 70X85X12 | 70 | 85 | 10,8 | 12 | 5 |
| A107-070/7 | 70X85X10 | 70 | 85 | 9 | 10 | 5 |
| A107-070/8 | 70X90X13 | 70 | 90 | 11,7 | 13 | 5 |
| A107-075 | 75X87X9,3 | 75 | 87 | 8,35 | 9,3 | 5 |
| A107-075/1 | 75X85X8 | 75 | 85 | 7,2 | 8 | 5 |
| A107-075/2 | 75X90X10 | 75 | 90 | 9 | 10 | 5 |
| A107-080 | 80X92X9,6 | 80 | 92 | 8,65 | 9,6 | 5 |
| A107-080/1 | 80X96X10 | 80 | 96 | 9 | 10 | 5 |
| A107-080/2 | 80X92X9 | 80 | 92 | 8,1 | 9 | 5 |
| A107-080/3 | 80X90X8 | 80 | 90 | 7,2 | 8 | 5 |
| A107-085 | 85X97X9,6 | 85 | 97 | 8,65 | 9,6 | 5 |
| A107-090 | 90X102X9,6 | 90 | 102 | 8,65 | 9,6 | 5 |
| A107-090/1 | 90X110X12,5 | 90 | 110 | 11,25 | 12,5 | 5 |
| A107-100 | 100X115X12 | 100 | 115 | 10,8 | 12 | 7 |
| A107-100/1 | 100X120X14 | 100 | 120 | 12,6 | 14 | 7 |
| A107-105 | 105X125X12,5 | 105 | 125 | 11,25 | 12,5 | 7 |
| A107-110 | 110X125X12 | 110 | 125 | 10,8 | 12 | 7 |
| A107-110/1 | 110X130X12 | 110 | 130 | 10,8 | 12 | 7 |
| A107-110/2 | 110X126X12,3 | 110 | 126 | 11,05 | 12,3 | 7 |
