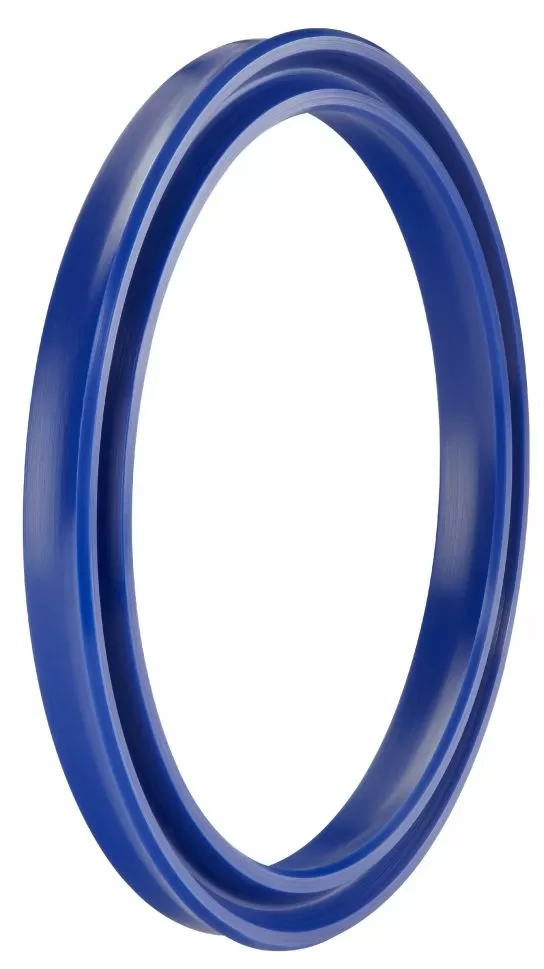

Piston nutring A102 28x16x9 PU92 to 400 bar
In stock 17 pcs.
- Code:32028016091
- Weight:0.003 Kgs
A102 single acting piston nutrings by ALP are designed with shorter outer sealing lip and intended only to be used in piston application of standard cylinders.
They are manufactured with 90 Shore NBR or 92 Shore PU compound as a standard.
A102 piston nutrings offer easy assembly even into closed housings, very economic sealing solution, simple groove design and superior dynamic and static sealing effect to the system.
This type of seals can be used safely in construction machinery, moving platforms, forklifts, agricultural machinery, as well as any other standard cylinders.
It is recommended to use A102 with at least one ALP guiding element, such as A251, A254, A255 or A256, depending on the working conditions.
Estimated Shipping
to Targovishte starts at €5.18outside Targovishte starts at €5.28
to Targovishte starts at €2.73outside Targovishte starts at €2.73

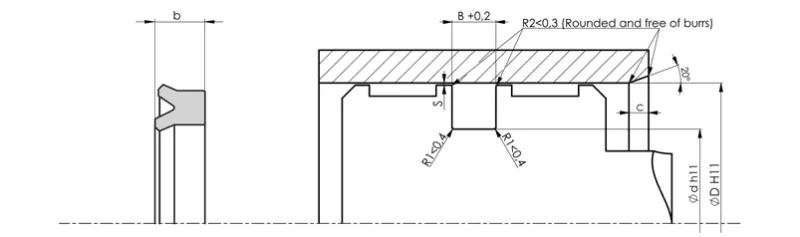

Seal dimensions: d=28 mm D=16 mm b=9 mm B=10 mm C=5 mm
|
TECHNICAL DATA |
||||
|
Standard Materials |
NBR |
PU |
||
|
Working Pressure |
160 bar |
400 bar |
||
|
Working Temperature |
-30 +105 °C |
-30 +100 °C |
||
|
Sliding Speed |
0.5 m/s |
0.5 m/s |
||
|
Material |
NBR 90 |
PU 92 |
||
|
Media |
Mineral-base hydraulic oil |
|||
|
Surface Roughness |
||||
|
|
Ra |
Rmax |
||
|
Dynamic Surface |
≤ 0.3 μm |
≤ 3 μm |
||
|
Groove Base |
≤ 1.8 μm |
≤ 10 μm |
||
|
Groove Flanks |
≤ 3.2 μm |
≤ 16 μm |
||
|
Permissible Gap (max) for NBR |
||||
|
Cross Section |
Pressure (bar) |
|||
|
50 |
100 |
160 |
||
|
≤ 5 |
0.4 |
0.2 |
0.1 |
|
|
> 5 |
0.45 |
0.25 |
0.15 |
|
|
Permissible Gap (max) for PU |
||||
|
Cross Section |
Pressure (bar) |
|||
|
150 |
250 |
400 |
||
|
≤ 5 |
0.3 |
0.2 |
0.15 |
|
|
> 5 |
0.35 |
0.25 |
0.2 |
|
