- Advanced Material Engineering: Backed by dedicated research units, KVK continuous to innovate in high-grade elastomer synthesis, ensuring maximum hydraulic fluid resistance and high tensile strength under load.
- Colossal Warehousing Capabilities: Operating as a main production and logistics hub, the factory holds vast baseline stock volumes, empowering "Satelit Nikis" to secure even the most specialized and rare sealing dimensions rapidly.
- Strict Quality Metrics: All manufacturing operations strictly mirror the global quality framework of ISO 9001, guaranteeing crisp sealing lip geometries and zero defects.
918
products
Products

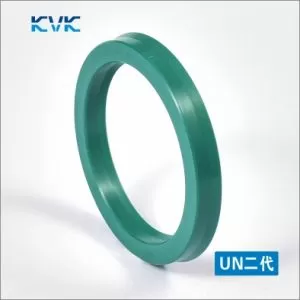

Hydraulic piston and rod seal UN 40x60x10 PU93 up to 320 bar KVK/China
Product data
Ød=40 mm; ØD=60 mm; h=10 mm
Material: PU93
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 320 bar; when the pressure is higher than 200 bar, it is recommended to use a back-up ring
Speed: ≤ 0.8 m/s
Temperature: -30°C ~ +80°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 32 pcs.
Hydraulic piston and rod seal UN 40x50x5 PU93 up to 320 bar KVK/China
Product data
Ød=40 mm; ØD=50 mm; h=5 mm
Material: PU93
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 320 bar; when the pressure is higher than 200 bar, it is recommended to use a back-up ring
Speed: ≤ 0.8 m/s
Temperature: -30°C ~ +80°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 29 pcs.
Hydraulic piston and rod seal UN 40x48x6 PU93 up to 320 bar KVK/China
Product data
Ød=40 mm; ØD=48 mm; h=6 mm
Material: PU93
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 320 bar; when the pressure is higher than 200 bar, it is recommended to use a back-up ring
Speed: ≤ 0.8 m/s
Temperature: -30°C ~ +80°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 98 pcs.
Hydraulic piston and rod seal UN 35x43x6 PU93 up to 320 bar KVK/China
Product data
Ød=35 mm; ØD=43 mm; h=6 mm
Material: PU93
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 320 bar; when the pressure is higher than 200 bar, it is recommended to use a back-up ring
Speed: ≤ 0.8 m/s
Temperature: -30°C ~ +80°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 100 pcs.
Hydraulic piston and rod seal UN 25x35x7 PU93 up to 320 bar KVK/China
Product data
Ød=25 mm; ØD=35 mm; h=7 mm
Material: PU93
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 320 bar; when the pressure is higher than 200 bar, it is recommended to use a back-up ring
Speed: ≤ 0.8 m/s
Temperature: -30°C ~ +80°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)
Manufacturer:
Zhongxingshun Sealing Products Factory
Hydraulic piston and rod seal UN 24x34x6 PU93 up to 320 bar KVK/China
Product data
Ød=24 mm; ØD=34 mm; h=6 mm
Material: PU93
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 320 bar; when the pressure is higher than 200 bar, it is recommended to use a back-up ring
Speed: ≤ 0.8 m/s
Temperature: -30°C ~ +80°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 14 pcs.
Hydraulic piston and rod seal UN 20x28x6 PU93 up to 320 bar KVK/China
Product data
Ød=20 mm; ØD=28 mm; h=6 mm
Material: PU93
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 320 bar; when the pressure is higher than 200 bar, it is recommended to use a back-up ring
Speed: ≤ 0.8 m/s
Temperature: -30°C ~ +80°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 51 pcs.
Hydraulic piston and rod seal UN 20x28x5.5 PU93 up to 320 bar KVK/China
Product data
Ød=20 mm; ØD=28 mm; h=5.5 mm
Material: PU93
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 320 bar; when the pressure is higher than 200 bar, it is recommended to use a back-up ring
Speed: ≤ 0.8 m/s
Temperature: -30°C ~ +80°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 76 pcs.
Hydraulic piston and rod seal USH 20x28x4.6 NBR90 up to 210 bar KVK/China
Product data
The hydraulic seal USH has a symmetrical design and is suitable for both piston and rod.
Ød=20 mm; ØD=28 mm; h=4.6 mm
Material: NBR90
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 210 bar; when the pressure is higher than 150 bar, it is recommended to use a back-up ring
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 38 pcs.
Hydraulic piston and rod seal UN 16x28x6 PU93 up to 320 bar KVK/China
Product data
Ød=16 mm; ØD=26 mm; h=6 mm
Material: PU93
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 320 bar; when the pressure is higher than 200 bar, it is recommended to use a back-up ring
Speed: ≤ 0.8 m/s
Temperature: -30°C ~ +80°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 9 pcs.
