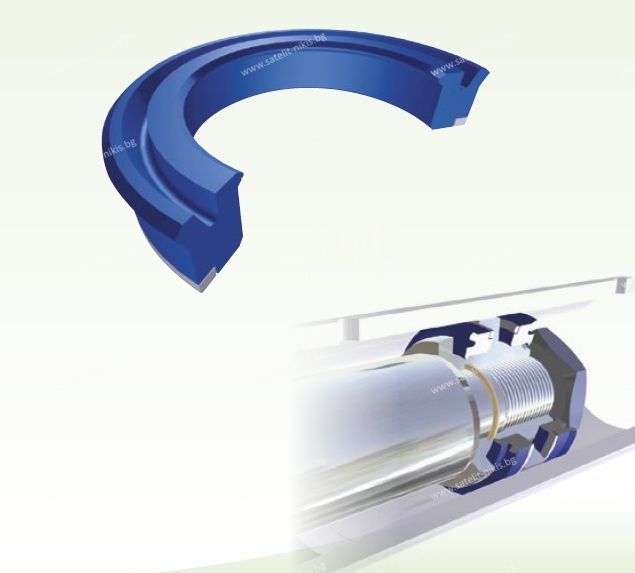

Hydraulic rod seal TTW 63x48x9/9.5 PU92+ POM up to 400 bar, with support ring on the outer diameter GUARNITEC/Italy
-
Code:32063048095
-
Weight:0.006 Kgs
Product data
d=48 mm; D=63 mm; H=9.5 mm ; F=58 mm
Материал: PU92 Shore+POM
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 400 bar
Speed: ≤ 0.5 m/s
Temperature: -35°C до +100°C
Media: mineral-based hydraulic oils
Manufacturer:
GUARNITEC S.r.l.
100% Made in Italy
For delivery options to your country, please do not hesitate to contact us!
Product photos are for illustrative purposes and may differ from the actual appearance of the item. This does not affect the characteristics of the product.
Estimated Shipping
to Targovishte starts at
€3.31
outside Targovishte starts at
€3.43
outside Targovishte starts at
€3.28
to Targovishte starts at
€3.28
It is suitable for use in construction equipment, mobile and loading platforms, forklifts, agricultural machinery, injection molding equipment and other types of standard cylinders.
Application range:
Pressure: ≤400 bar
Operating temperature: -35°C to +100°C ; -45°C +110°C PN 522
Superficial velocity: 0.5 m/s
Media: mineral-based hydraulic oils, emulsions
Material: PU92 Shore.
