KDAS Hydraulic Piston Seals

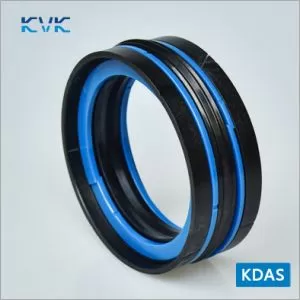

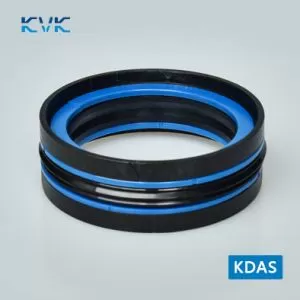

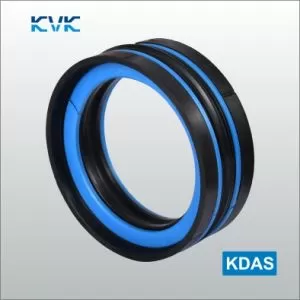

KDAS compact piston seal is a five-element double-acting piston seal set consisting of one specially shaped NBR rubber sealing ring, two split support rings made of thermoplastic material and two POM guide rings. KDAS is a compression type seal with excellent sealing properties, suitable for operation under pressure on both sides of the seal, as well as for rapid sealing action. The active piston is not pressed into the radial sealing gap during the sealing process and thus prevents the sealing element from twisting.
Material: NBR+POM+TPE
Application range (the following limit values must not be present at the same time):
Pressure: ≤ 250 bar
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Operating medium: mineral-based hydraulic oils
Hydraulic piston seal KDAS 160x130x25.4/9.5 NBR+POM+TPE до 250 bar KVK/China
Product data

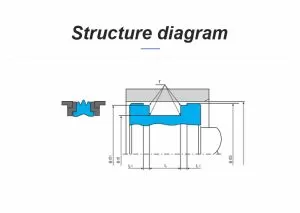

D=160 mm ; Ød=130 mm ; L=25.4 mm ; Ød1=152.6 mm ; Ød2=157.5 mm ; L1=9.5 mm ; r=0.8 mm
Material: NBR+POM+TPE
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 250 bar
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 10 pcs.
Hydraulic piston seal KDAS 160x130x25.4/6.35 NBR+POM+TPE до 250 bar KVK/China
Product data
D=160 mm ; Ød=130 mm ; L=25.4 mm ; Ød1=153 mm ; Ød2=157.5 mm ; L1=6.35 mm ; r=0.8 mm
Material: NBR+POM+TPE
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 250 bar
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 8 pcs.
Hydraulic piston seal KDAS 150x128x26.5 NBR+POM+TPE до 250 bar KVK/China
Product data
D=150 mm ; Ød=128 mm ; L=26.5 mm ; Ød1=146 mm ; Ød2=149 mm ; L1=5.1 mm ; r=0.8 mm
Material: NBR+POM+TPE
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 250 bar
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 7 pcs.
Hydraulic piston seal KDAS 145x120x25.4 NBR+POM+TPE до 250 bar KVK/China
Product data
D=145 mm ; Ød=120 mm ; L=25.4 mm ; Ød1=137.6 mm ; Ød2=142.5 mm ; L1=9.5 mm ; r=0.8 mm
Material: NBR+POM+TPE
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 250 bar
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 10 pcs.
Hydraulic piston seal KDAS 140x118x26.5 NBR+POM+TPE до 250 bar KVK/China
Product data
D=140 mm ; Ød=118 mm ; L=26.5 mm ; Ød1=136 mm ; Ød2=139 mm ; L1=5.1 mm ; r=0.8 mm
Material: NBR+POM+TPE
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 250 bar
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 9 pcs.
Hydraulic piston seal KDAS 140x115x25.4 NBR+POM+TPE до 250 bar KVK/China
Product data
D=140 mm ; Ød=115 mm ; L=25.4 mm ; Ød1=132.6 mm ; Ød2=137.5 mm ; L1=9.5 mm ; r=0.8 mm
Material: NBR+POM+TPE
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 250 bar
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils
Manufacturer:
Zhongxingshun Sealing Products Factory
Hydraulic piston seal KDAS 125x103x26.5 NBR+POM+TPE до 250 bar KVK/China
Product data
D=125 mm ; Ød=103 mm ; L=26.5 mm ; Ød1=121 mm ; Ød2=124 mm ; L1=5.1 mm ; r=0.8 mm
Material: NBR+POM+TPE
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 250 bar
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils
Manufacturer:
Zhongxingshun Sealing Products Factory
Hydraulic piston seal KDAS 120x106x22.5 NBR+POM+TPE до 250 bar KVK/China
Product data
D=120 mm ; Ød=106 mm ; L=22.5 mm ; Ød1=116 mm ; Ød2=119.4 mm ; L1=5.2 mm ; r=0.4 mm
Material: NBR+POM+TPE
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 250 bar
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 5 pcs.
Hydraulic piston seal KDAS 115x97x22.5 NBR+POM+TPE до 250 bar KVK/China
Product data
D=115 mm ; Ød=97 mm ; L=22.5 mm ; Ød1=111 mm ; Ød2=114 mm ; L1=3.6 mm ; r=0.4 mm
Material: NBR+POM+TPE
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 250 bar
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils
Manufacturer:
Zhongxingshun Sealing Products Factory
Hydraulic piston seal KDAS 100x86x22.5 NBR+POM+TPE до 250 bar KVK/China
Product data
D=100 mm ; Ød=86 mm ; L=22.5 mm ; Ød1=96 mm ; Ød2=99.4 mm ; L1=5.2 mm ; r=0.4 mm
Material: NBR+POM+TPE
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 250 bar
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 13 pcs.
