Piston rod UN seals

Product data

Ød=100 mm ; ØD=120 mm ; L=41.5 mm ; C=5.0 mm

Material: NBR fabric 7 pcs

Application range (the following limit values cannot appear at the same time):

Pressure: ≤ 400 bar
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)

Manufacturer:

Zhongxingshun Sealing Products Factory

Product data

Ød=100 mm ; ØD=120 mm ; L=40 mm ; C=5.0 mm

Material: NBR fabric 6 pcs + 1 pcs. POM

Application range (the following limit values cannot appear at the same time):

Pressure: ≤ 400 bar
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)

Manufacturer:

Zhongxingshun Sealing Products Factory

Product data

Ød=75 mm ; ØD=90 mm ; L=22.5 mm ; C=5.0 mm

Material: NBR fabric 4 pcs + 1 pcs. POM

Application range (the following limit values cannot appear at the same time):

Pressure: ≤ 400 bar
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)

Manufacturer:

Zhongxingshun Sealing Products Factory

Product data

Ød=60 mm ; ØD=75 mm ; L=30 mm ; C=5.0 mm

Material: NBR fabric 4 pcs + 1 pcs. POM

Application range (the following limit values cannot appear at the same time):

Pressure: ≤ 400 bar
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)

Manufacturer:

Zhongxingshun Sealing Products Factory

Product data

Ød=50 mm ; ØD=70 mm ; L=40 mm ; C=5.0 mm

Material: NBR fabric 4 pcs + 1 pcs. POM

Application range (the following limit values cannot appear at the same time):

Pressure: ≤ 400 bar
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)

Manufacturer:

Zhongxingshun Sealing Products Factory

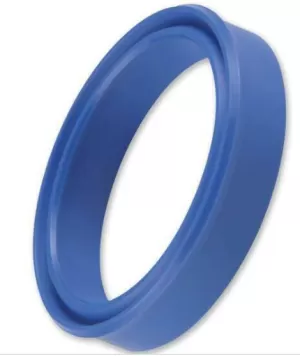

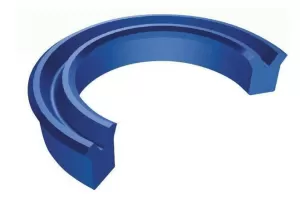

Product data

Ød=110 mm ; ØD=140 mm ; h=15 mm ; HA=16 mm ; C=4.0 mm

Material: PU93

Application range (the following limit values cannot appear at the same time):

Pressure: ≤ 320 bar; when the pressure is higher than 200 bar, it is recommended to use a back-up ring
Speed: ≤ 0.8 m/s
Temperature: -30°C ~ +80°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)

Manufacturer:

Zhongxingshun Sealing Products Factory

Product data

Ød=22 mm ; ØD=30 mm ; h=5 mm ; HA=5.7 mm ; C=2.0 mm

Material: PU93

Application range (the following limit values cannot appear at the same time):

Pressure: ≤ 320 bar; when the pressure is higher than 200 bar, it is recommended to use a back-up ring
Speed: ≤ 0.8 m/s
Temperature: -30°C ~ +80°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)

Manufacturer:

Zhongxingshun Sealing Products Factory

Product data

Ød=140 mm ; ØD=160 mm ; h=10 mm ; HA=11 mm ; C=4.0 mm

Material: PU93

Application range (the following limit values cannot appear at the same time):

Pressure: ≤ 320 bar; when the pressure is higher than 200 bar, it is recommended to use a back-up ring
Speed: ≤ 0.8 m/s
Temperature: -30°C ~ +80°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)

Manufacturer:

Zhongxingshun Sealing Products Factory

Product data

Ød=160 mm ; ØD=180 mm ; h=10 mm ; HA=11 mm ; C=4.0 mm

Material: PU93

Application range (the following limit values cannot appear at the same time):

Pressure: ≤ 320 bar; when the pressure is higher than 200 bar, it is recommended to use a back-up ring
Speed: ≤ 0.8 m/s
Temperature: -30°C ~ +80°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)

Manufacturer:

Zhongxingshun Sealing Products Factory

Product data

Ød=105 mm ; ØD=115 mm ; h=9 mm ; HA=10 mm ; C=4.0 mm

Material: PU93

Application range (the following limit values cannot appear at the same time):

Pressure: ≤ 320 bar; when the pressure is higher than 200 bar, it is recommended to use a back-up ring
Speed: ≤ 0.8 m/s
Temperature: -30°C ~ +80°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)

Manufacturer:

Zhongxingshun Sealing Products Factory
