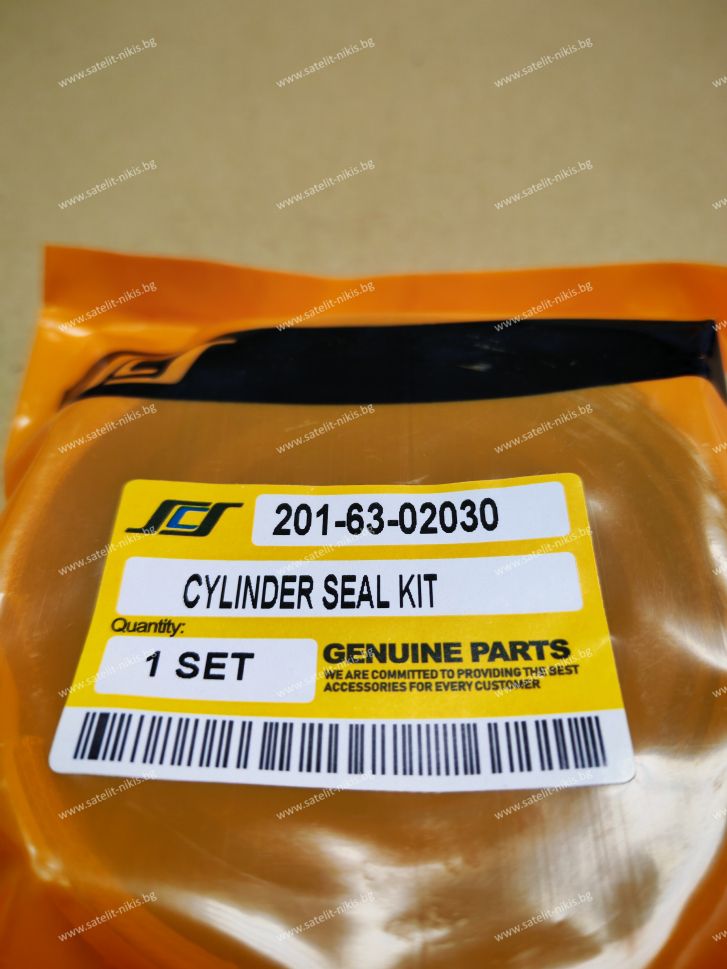

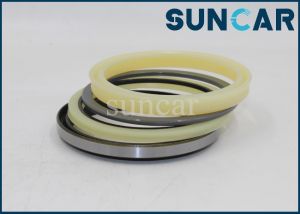

Arm Cylinder Seal Kit (for short reach spec.) /bucket cylinder 201-63-02030 for KOMATSU exkavators

Price: €28.79 56.31лв.

Code:

201-63-02030
Weight:

0.234 Kgs

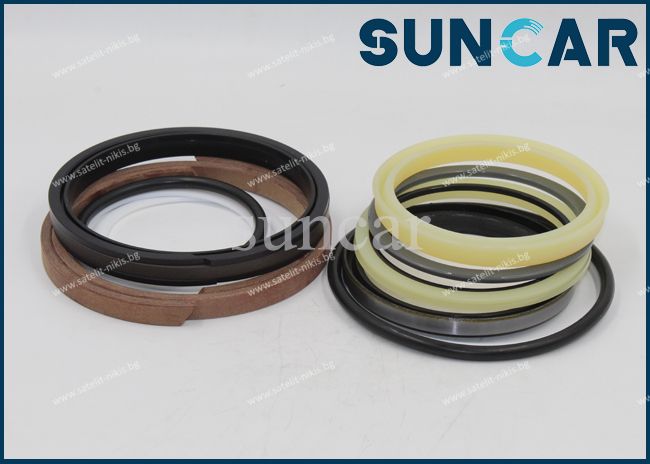

Repair kit for the arm cylinder of KOMATSU excavators.

Piston diameter (d): 55.00 mm

Cylinder diameter (D): 90.00 mm

Related products:

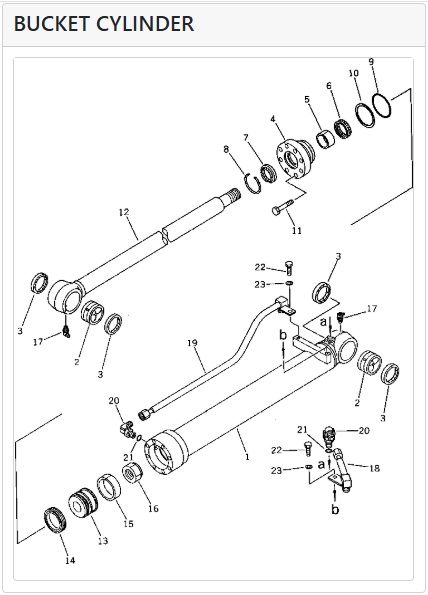

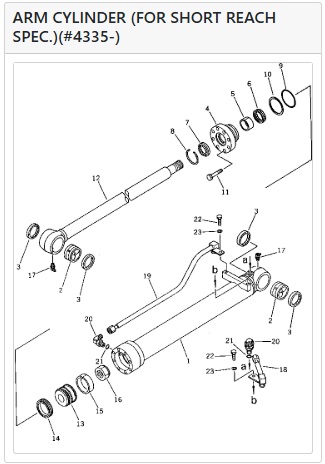

POS.	Number	Name	Qty.
	201-63-02030	CYLINDER ASSEMBLY	1
1	201-63-76340	• CYLINDER	1
2	707-76-60080	• BUSHING	2
3	07145-00060	• SEAL,DUST	4
4	707-27-90170	• HEAD,CYLINDER	1
5	07177-05530	• BUSHING	1
6	707-51-55211	• PACKING,ROD	1
7	707-56-55510	• SEAL,DUST	1
8	07179-00077	• RING,SNAP	1
9	07000-12090	• O-RING	1
10	07001-02090	• RING,BACK-UP	1
11	01010-81450	• BOLT	8
12	20X-63-76520	• ROD,PISTON	1
13	707-36-90271	• PISTON	1
14	707-44-90080	• RING,PISTON	1
15	07155-00925	• RING,WEAR	1
16	07165-13941	• NUT	1
17	07020-00675	FITTING,GREASE	2
18	201-63-76380	TUBE	1
19	201-63-76370	TUBE	1
20	07235-10422	ELBOW	2
21	07002-12034	O-RING	2
22	01010-51020	BOLT	2
23	01643-31032	WASHER	2

Suitable for KOMATSU:

PC50UU-1 - arm cylinder (for short reach spec.)

PC60-5, PC75UU-1, PC60L-5, PC60U-5, PW60-3, PW60S-3 - bucket cylinder
