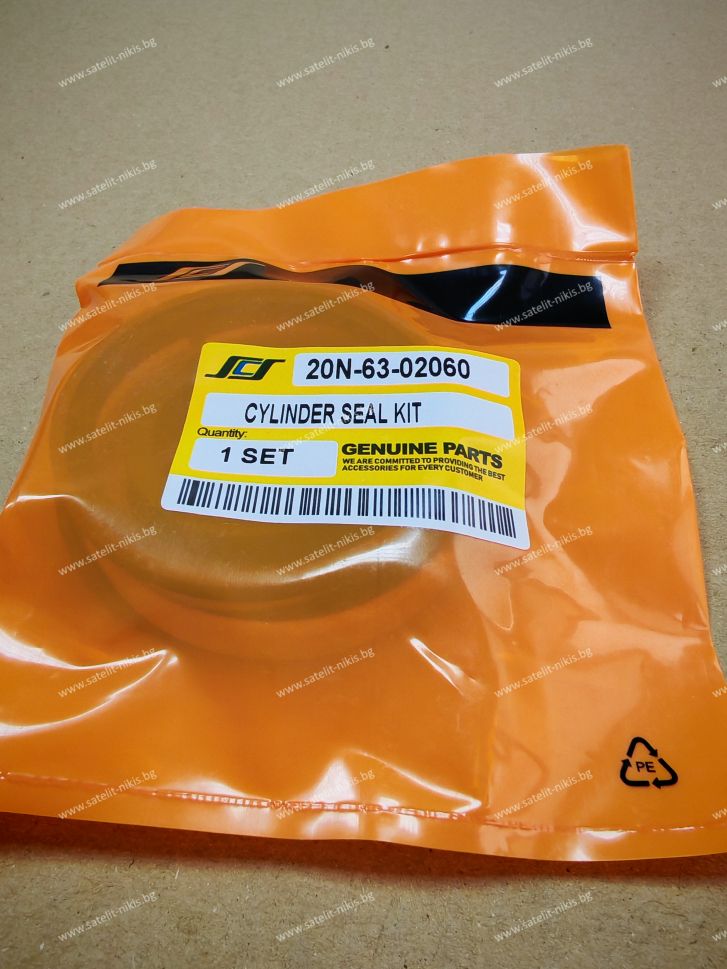

Blade Cylinder Seal Kit 20N-63-02060 /707-98-12700 for KOMATSU exkavators

Price: €18.71 36.59лв.

Code:

20N-63-02060
Weight:

0.100 Kgs

Repair kit for the blade cylinder of KOMATSU excavators.

Piston diameter (d): 35.00 mm

Cylinder diameter (D): 70.00 mm

Relate Products:

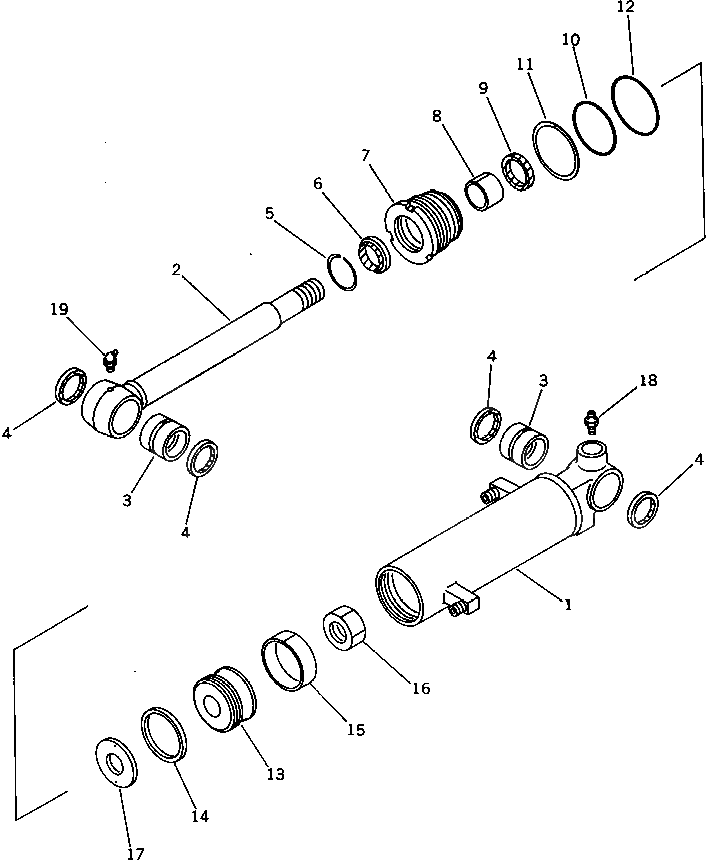

Pos.	Part No	Qty	Parts name
	20N-63-02060	[1]	CYLINDER ASSEMBLE
1	20N-63-96440	[1]	CYLINDER
2	20N-63-96420	[1]	ROD,PISTON
3	07144-10304	[2]	BUSHING
4	07145-00035	[4]	SEAL,DUST OEM
5	07179-12047	[1]	RING,SNAP
6	07016-20357	[1]	SEAL,DUST
7	707-29-70920	[1]	HEAD,CYLINDER
8	07177-03525	[1]	BUSHING
9	707-51-35210	[1]	PACKING,ROD
10	07000-12065	[1]	O-RING
11	07001-02065	[1]	RING,BACK-UP
12	07000-12070	[1]	O-RING
13	707-36-70940	[1]	PISTON
14	07161-10070	[1]	RING,PISTON
15	07156-00710	[1]	RING,WEAR
16	07165-12729	[1]	NUT
17	10E-63-66280	[1]	RETAINER
18	07020-00000	[1]	FITTING,GREASE
19	07020-00675	[1]	FITTING,GREASE

Suitable for:

PC10-6, PC15-2,PC15Т
