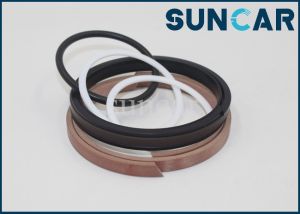

Blucket Cylinder Seal Kit 707-99-26640 KOMATSU exkavators

Price: €35.99 70.39лв.

Code:

707-99-26640
Weight:

0.240 Kgs

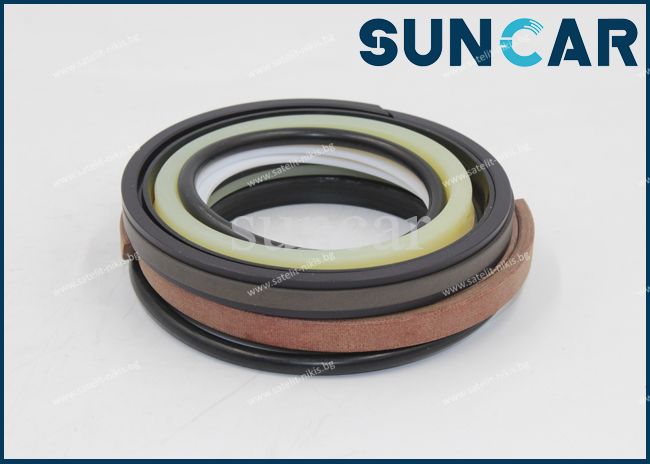

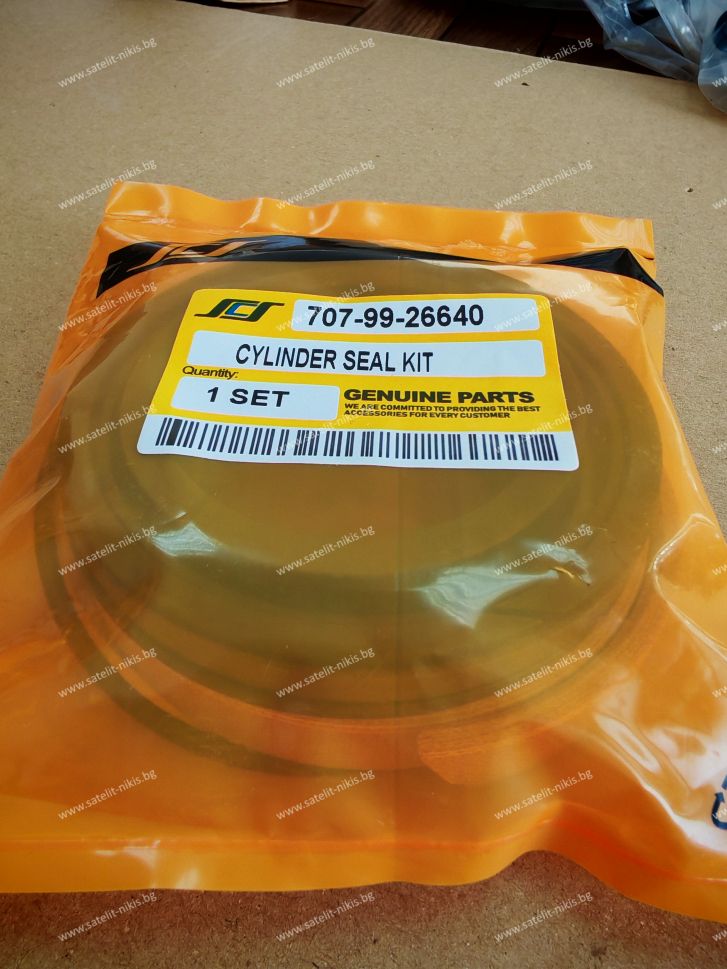

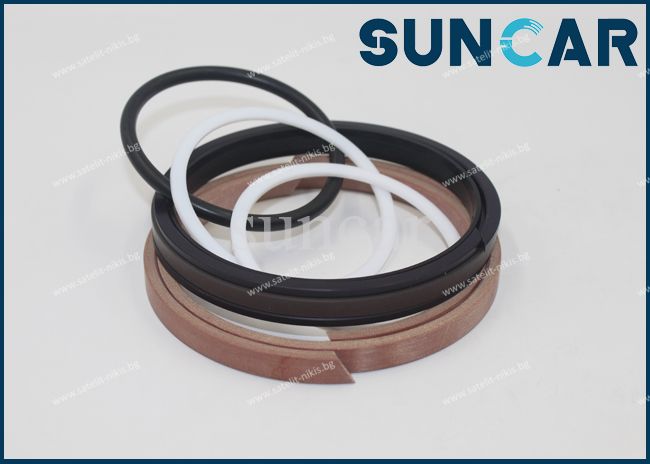

Repair kit for the bucket lift cylinder of KOMATSU excavators.

Piston diameter (d): 55.00 mm

Cylinder diameter (D): 90.00 mm

Related produkt:

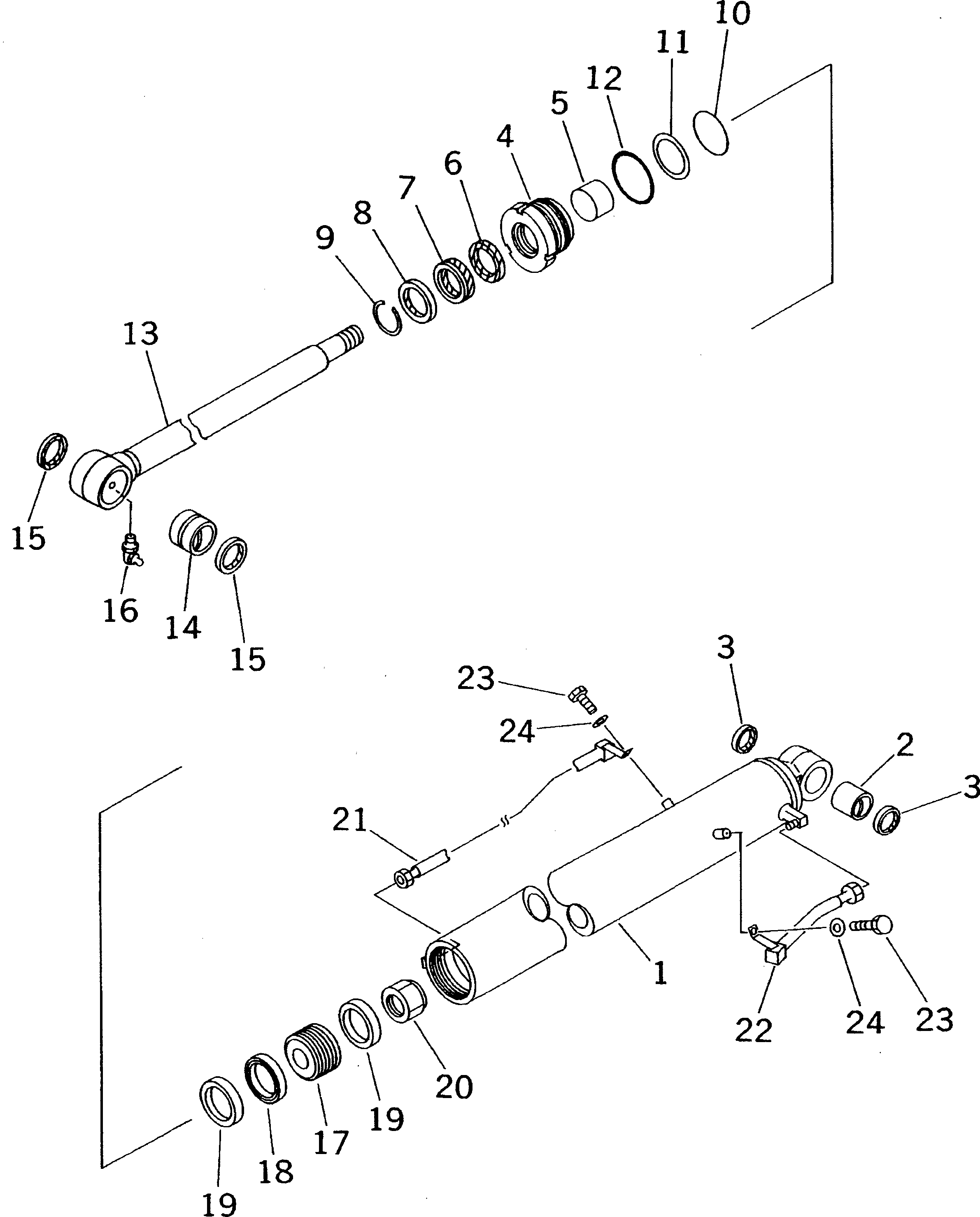

POS.	Number	Name	Qty.
G1	201-63-X2322	CYLINDER GROUP,BUCKET	1
	201-63-02322	CYLINDER ASSEMBLY ,BUCKET	1
1	201-63-76242	• CYLINDER,BUCKET	1
2	707-76-50040	• BUSHING	1
3	07145-00050	• SEAL,DUST (KIT)	2
4	707-29-90801	• HEAD	1
5	707-52-90300	• BUSHING	1
6	707-51-55630	• RING,BUFFER (KIT)	1
7	707-51-55030	• PACKING,ROD (KIT)	1
8	707-56-55510	• SEAL,DUST (KIT)	1
9	07179-12069	• RING,SNAP	1
10	07000-12085	• O-RING (KIT)	1
11	07146-02086	• RING,BACK-UP (KIT)	1
12	07000-02090	• O-RING (KIT)	1
13	201-63-76222	• ROD,PISTON	1
14	707-76-60080	• BUSHING	1
15	07145-00060	• SEAL,DUST (KIT)	2
16	07020-00675	• FITTING,GREASE	1
17	707-36-90200	• PISTON	1
18	707-44-90180	• RING,PISTON (KIT)	1
19	707-39-90110	• RING,WEAR (KIT)	2
20	07165-13941	• NUT	1
21	201-63-76270	TUBE	1
22	201-63-76280	TUBE	1
23	01010-51020	BOLT	2
24	01643-31032	WASHER	2

Suitable for:

PC60-7, PC60-7-B, PC60-7E, PC60-7E-B, PC60-7S, PC60-7S-B, PC70-7, PC70-7-B, PC70-7E, PC70-7E-B
